B&R 5ACCMS01.MDT2-000
Compatible in the APC3x00/PPC3x00 and APC4100 (only with 5ACCMBMS.0000-000 )
- MPN
- 5ACCMS01.MDT2-000
- Category
- Mass storage options
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

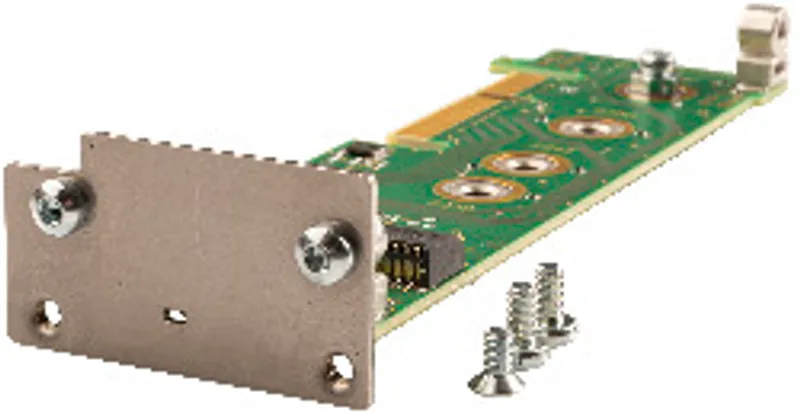

What is the B&R 5ACCMS01.MDT2-000?
Compatible in the APC3x00/PPC3x00 and APC4100 (only with 5ACCMBMS.0000-000 )
Easy installation in slot IF option 3.
5ACCMSM2.xxxx-000 memory sizes: 512 GB or 1 TB
Adapter card for M.2 mass storage - For APC3x00/PPC3x00 - For APC4100
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
| LEDs | Yes, 1x activity indicator |
| B&R ID code | 0xFCCC |
Interfaces
| Add-on interface slot – Quantity | 1x M.2 SSD; M-Key |
Electrical properties
| Power consumption | Depends on the mass storage device used |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
Ambient conditions
| Temperature – Operation | 0 to 55°C |
| Temperature – Storage | -20 to 60°C |
| Temperature – Transport | -20 to 60°C |
| Relative humidity – Operation | 5 to 90%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Weight | Approx. 35 g (note: Without mass storage device.) |
Accessories
Optional accessories (3)
| 5ACCMBMS.0000-000 | Accessories — Mounting bracket for IF3 option - For APC4100 - Only for 1-/2-/3-slot - For IF options 5ACCLI05.SDL4-000 and 5ACCMS01.MDT2-000 |
| 5ACCMSM2.1024-000 | Mass storage options — Compatible with APC3100/PPC3100 (using adapter card 5ACCMS01.MDT2-000); Solid-state drives; MLC technology; SATA support; 1 TB 1 TB M.2 SSD… |
| 5ACCMSM2.0512-000 | Mass storage options — Compatible with APC3100/PPC3100 (using adapter card 5ACCMS01.MDT2-000); Solid-state drives; MLC technology; SATA support; 512 GB 512 GB M.2… |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
5ACCMS01.MDT2-000: frequently asked questions
When can 5ACCMS01.MDT2-000 be shipped?
5ACCMS01.MDT2-000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5ACCMS01.MDT2-000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5ACCMS01.MDT2-000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5ACCMS01.MDT2-000, subject to availability and destination.
