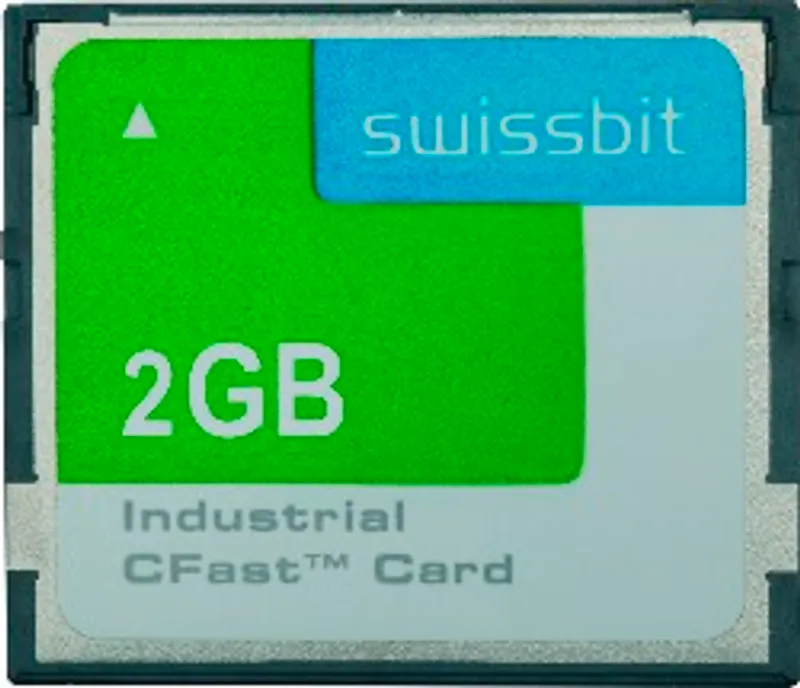

B&R 5CFAST.2048-00
2 GB CFast card
- MPN
- 5CFAST.2048-00
- Category
- CFast cards
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 5CFAST.2048-00?
2 GB CFast card
SLC flash
SATA 2.6 compatible
Static wear leveling
CFast 2 GB SLC
Specifications
General information
| Continuous reading – With 128 kB block size | 94 MB/s |
| Continuous reading – With 4 kB block size | 42 MB/s |
| Continuous reading – With 128 kB block size | 100 MB/s |
| Continuous reading – With 4 kB block size | 50 MB/s |
| Continuous writing – With 128 kB block size | 57 MB/s |
| Continuous writing – With 4 kB block size | 36 MB/s |
| Continuous writing – With 128 kB block size | 65 MB/s |
| Continuous writing – With 4 kB block size | 40 MB/s |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T4 (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.) |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck) (note: Yes, but applies only if all components installed in the complete system have this certification and are listed on the associated DNV GL certificate for the product family.) |
| Certifications – CCS | Yes |
| Certifications – LR | ENV3 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC31B ; Temperature: 5 - 55°C; Vibration: 0.7 g; EMC: Bridge and open deck |
| Capacity | 2 GB |
| Data retention | 10 years (note: Per JEDEC (JESD47), EOL conditions are not permitted to be reached before 18 months. A higher average daily write workload reduces the expected service life and data retention of the data storage medium.) |
| Data reliability | <1 unrecoverable error per 10 14 bits read |
| Lifetime monitoring | Yes |
| MTBF | >2,500,000 hours (at 25°C) |
| Servicing | None |
| Supported operating modes | SATA 2.6, max. PIO mode 4, Multiword DMA mode 2, Ultra DMA mode 6 |
Endurance
| Guaranteed data volume – Guaranteed | 185 TBW (note: TBW = Terabytes written Sequential access without file system) |
| Erase/Write cycles – Guaranteed | 100,000 |
| SLC flash memory | Yes |
| Wear leveling | Static |
| S.M.A.R.T. support | Yes |
Support
| Operating systems – Windows 10 IoT Enterprise LTSB 64-bit | No |
| Operating systems – Windows Embedded 8.1 Industry Pro 32-bit | No |
| Operating systems – Windows Embedded 8.1 Industry Pro 64-bit | No |
| Operating systems – Windows 7 32-bit | No |
| Operating systems – Windows 7 64-bit | No |
| Operating systems – Windows Embedded Standard 7 32-bit | No |
| Operating systems – Windows Embedded Standard 7 64-bit | No |
| Operating systems – Windows XP Professional | No |
| Operating systems – Windows Embedded Standard 2009 | Yes |
| Operating systems – Linux for B&R 9 | No |
| Operating systems – Linux for B&R 8 | No |
| Software – PVI Transfer | ≥V4.0.0.0.8 (part of the PVI Development installer ≥ V3.0.2.3014) |
| Software – B&R Embedded OS Installer | ≥V3.10 |
| Hardware | APC3100, APC2100, APC910, PPC3100, PPC2100, PPC900 |
Ambient conditions
| Temperature – Operation | -40 to 85°C |
| Temperature – Storage | -50 to 100°C |
| Temperature – Transport | -50 to 100°C |
| Relative humidity – Operation | Max. 85% at 85°C, non-condensing |
| Relative humidity – Storage | Max. 85% at 85°C, non-condensing |
| Relative humidity – Transport | Max. 85% at 85°C, non-condensing |
| Vibration – Operation | 10 to 2000 Hz: 20 g peak |
| Vibration – Storage | 10 to 2000 Hz: 20 g peak |
| Vibration – Transport | 10 to 2000 Hz: 20 g peak |
| Shock – Operation | 1500 g peak, 0.5 ms |
| Shock – Storage | 1500 g peak, 0.5 ms |
| Shock – Transport | 1500 g peak, 0.5 ms |
Mechanical properties
| Dimensions – Width | 42.8 ±0.10 mm |
| Dimensions – Length | 36.4 ±0.10 mm |
| Dimensions – Depth | 3.6 ±0.10 mm |
| Weight | 10 g |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
5CFAST.2048-00: frequently asked questions
When can 5CFAST.2048-00 be shipped?
5CFAST.2048-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5CFAST.2048-00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5CFAST.2048-00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5CFAST.2048-00, subject to availability and destination.
