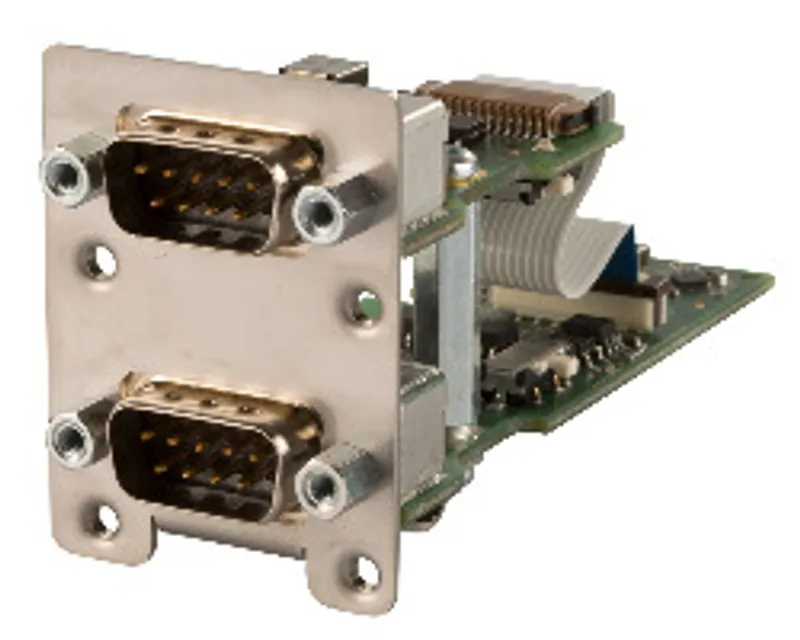

B&R 5ACCIF02.ISS0-000

Interface card, 2x RS232/RS422/RS485 interface

MPN: 5ACCIF02.ISS0-000
Category: Interface options

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 5ACCIF02.ISS0-000?

Interface card - 2x RS232/RS422/RS485 interface - For APC3x00/PPC3x00

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
B&R ID code	0xF725

Interfaces

COM – Type	Possible to switch each on/off via slide switch
COM – Default setting	Each off
COM – Quantity	2
COM – Type	RS232/RS422/RS485, galvanically isolated
COM – Execution	DSUB, 9-pin, male
COM – UART	16550-compatible, 16-byte FIFO buffer
COM – Max. baud rate	115 kbit/s

Electrical properties

Power consumption

1.5 W

Operating conditions

Pollution degree per EN 61131-2

Pollution degree 2

Ambient conditions

Temperature – Operation	0 to 60°C (note: For detailed information, see the temperature tables in the user's manual.)
Temperature – Storage	-20 to 60°C
Temperature – Transport	-20 to 60°C
Relative humidity – Operation	5 to 90%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Weight

Approx. 65 g

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

3D files DXF/STP 5ACCIF02.ISS0-000ZIP · 390 KB · 1.00 (06/03/2019)
