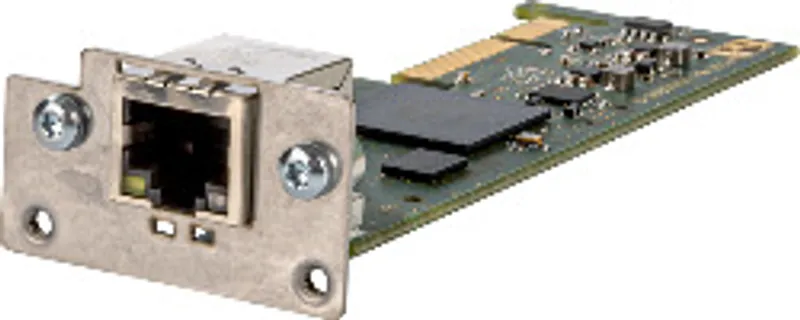

B&R 5ACCIF04.FPLK-000

1x POWERLINK interface (managing or controlled node) for…

MPN: 5ACCIF04.FPLK-000
Category: Interface options

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 5ACCIF04.FPLK-000?

1x POWERLINK interface (managing or controlled node) for real-time communication

Poll-response chaining

Compatible with APC3x00/PPC3x00 and APC4100

Easy installation in slot IF option 3.

Support in Automation Runtime and Automation Studio: Both starting with V4.9

Interface card - 1x POWERLINK interface - For APC3x00/PPC3x00 - For APC4100

Specifications

General information

Diagnostics – Data transfer	Yes, using LED status indicator
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
B&R ID code	0xFC5E

Interfaces

POWERLINK – Quantity	1
POWERLINK – Type	Type 4 (note: For additional information, see Automation Help (Communication - POWERLINK - General information - Hardware - IF / LS).)
POWERLINK – Variant	RJ45, shielded
POWERLINK – Transfer rate	100 Mbit/s
POWERLINK – Transfer	100BASE-TX
POWERLINK – Line length	Max. 100 m between two stations (segment length)

Electrical properties

Power consumption

1.5 W

Operating conditions

Pollution degree per EN 61131-2

Pollution degree 2

Ambient conditions

Temperature – Operation	0 to 55°C
Temperature – Storage	-20 to 60°C
Temperature – Transport	-20 to 60°C
Relative humidity – Operation	5 to 90%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Weight

Approx. 25 g

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

3D file STP 5ACCIF04.FPLK-000ZIP · 617 KB · 1.00 (02/08/2022)
