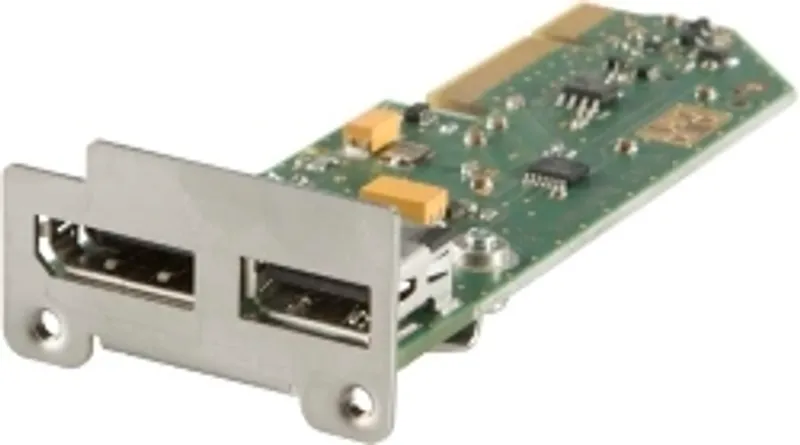

B&R 5ACCLI02.DPO0-000
Graphics option - 1x DisplayPort transmitter (version 1.2)…
- MPN
- 5ACCLI02.DPO0-000
- Category
- Graphics options
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5ACCLI02.DPO0-000?
Graphics option - 1x DisplayPort transmitter (version 1.2) - For APC3x00/PPC3x00 - For APC4100
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T4 (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.) |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck) (note: Yes, but applies only if all components installed in the complete system have this certification and are listed on the associated DNV certificate for the product family.) |
| Certifications – CCS | Yes |
| B&R ID code | 0xEEE6 |
Interfaces
| USB – Quantity | 1 |
| USB – Type | USB 2.0 |
| USB – Variant | Type A |
| USB – Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s) |
| USB – Current-carrying capacity | Max. 0.5 A |
| DisplayPort – Quantity | 1 |
| DisplayPort – Version | 1.2 |
Electrical properties
| Power consumption | 3 W |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
Ambient conditions
| Temperature – Operation | 0 to 60°C (note: For detailed information, see the temperature tables in the user's manual.) |
| Temperature – Storage | -20 to 60°C |
| Temperature – Transport | -20 to 60°C |
| Relative humidity – Operation | 5 to 90%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Weight | Approx. 30 g |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
5ACCLI02.DPO0-000: frequently asked questions
When can 5ACCLI02.DPO0-000 be shipped?
5ACCLI02.DPO0-000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5ACCLI02.DPO0-000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5ACCLI02.DPO0-000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5ACCLI02.DPO0-000, subject to availability and destination.
