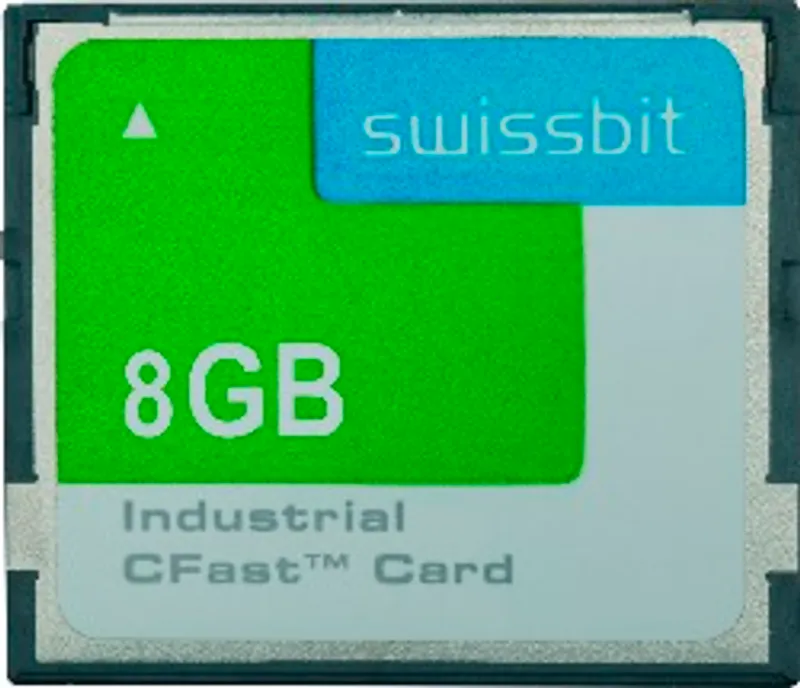

B&R 5CFAST.8192-00
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | CFast cards |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 10 kg |
Shipping & availability
When can 5CFAST.8192-00 be shipped?
5CFAST.8192-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5CFAST.8192-00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5CFAST.8192-00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5CFAST.8192-00, subject to availability and destination.
8 GB CFast cardSLC flashSATA 2.6 compatibleStatic wear leveling CFast 8 GB SLC
Specifications
Specifications
| Capacity | 8 GB |
| Data retention | 10 years |
| Data reliability | Max. 1 unrecoverable error per 1016 bits read |
| Lifetime monitoring | Yes |
| MTBF | Min. 2,000,000 h (at 25°C) |
| Servicing | None |
| Supported operating modes | SATA 3, SATA 2, SATA 1 |
| Maximum | Max. 99 MB/s |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | In preparation |
| UL | cULus E115267 Industrial control equipment |
| HazLoc | cULus HazLoc E180196 Industrial control equipment for hazardous locations Class I, Division 2, Groups ABCD, T4 |
| DNV | Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: A (0.7 g) EMC: B (bridge and open deck) |
| CCS | Yes |
| LR | ENV3 |
| KR | Yes |
| ABS | Yes |
| BV | EC31B Temperature: 5 - 55°C Vibration: 0.7 g EMC: Bridge and open deck |
| SLC flash memory | Yes |
| Theoretical | 800 TBW |
| Client workload | 475 TBW |
| Guaranteed | 100,000 |
| Wear leveling | Dynamic and static |
| Error-correcting code (ECC) | Yes |
| S.M.A.R.T. support | Yes |
| Storage health data support | Yes, AR 4.90 and later |
| Hardware | APC3100, APC910, PPC3100, PPC900, xPC2x00 |
| Windows 10 IoT Enterprise LTSB 64-bit | No |
| Windows Embedded 8.1 Industry Pro 32-bit | No |
| Windows Embedded 8.1 Industry Pro 64-bit | No |
| Windows 7 32-bit | No |
| Windows 7 64-bit | No |
| Windows Embedded Standard 7 32-bit | No |
| Windows Embedded Standard 7 64-bit | No |
| Windows XP Professional | Yes |
| Windows Embedded Standard 2009 | Yes |
| Linux for B&R 10 | Yes |
| Linux for B&R 9 | Yes |
| Linux for B&R 8 | Yes |
| PVI Transfer | ≥V4.0.0.0.8 (part of the PVI Development installer ≥ V3.0.2.3014) |
| B&R Embedded OS Installer | ≥V3.10 |
| Power consumption | Max. 0.99 W |
| Operation | 500 g peak, 0.5 ms |
| Storage | 500 g peak, 0.5 ms |
| Transport | 500 g peak, 0.5 ms |
| Width | 42.8 ±0.10 mm |
| Length | 36.4 ±0.10 mm |
| Depth | 3.6 ±0.10 mm |
| Weight | 10 g |
