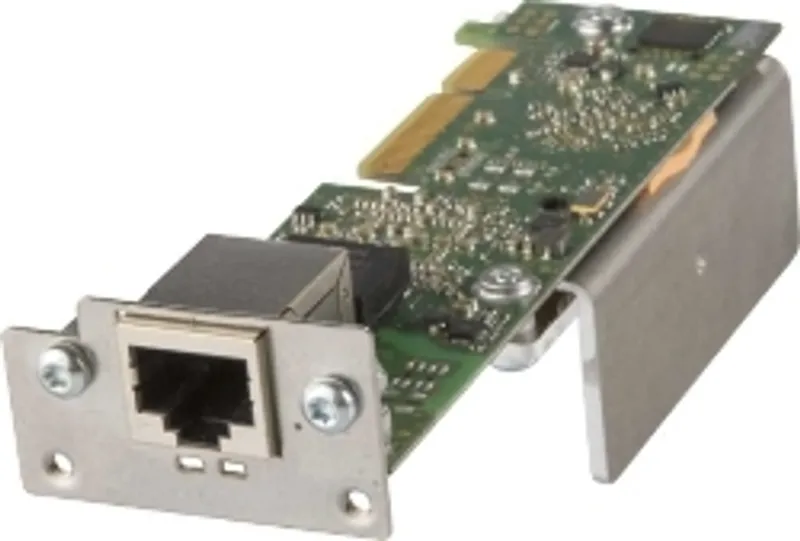

B&R 5ACCLI02.SD40-000

Graphics option, 1x SDL4 transmitter (max. 1920 x 1080)

MPN: 5ACCLI02.SD40-000
Category: Graphics options

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 5ACCLI02.SD40-000?

Graphics option - 1x SDL4 transmitter (max. 1920 x 1080) - For APC3x00/PPC3x00

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck)
LEDs	Status, Link
B&R ID code	0xECCC

Interfaces

SDL4 Out – Variant	RJ45, shielded
SDL4 Out – Type	SDL4

Electrical properties

Power consumption

4.5 W

Operating conditions

Pollution degree per EN 61131-2

Pollution degree 2

Ambient conditions

Temperature – Operation	0 to 55°C (note: For detailed information, see the temperature tables in the user's manual.)
Temperature – Storage	-20 to 60°C
Temperature – Transport	-20 to 60°C
Relative humidity – Operation	5 to 90%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Weight

Approx. 38 g

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

3D file STEP 5ACCLI02.SD40-000ZIP · 394 KB · 1.0 (05/23/2018)
