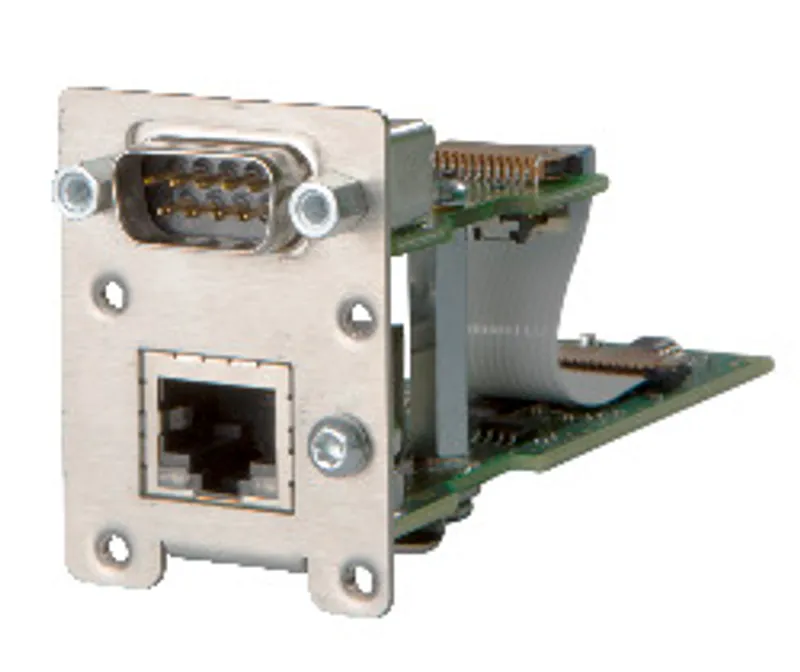

B&R 5ACCIF02.CANE-000

Interface card, 1x CAN interface (SJA1000)

MPN: 5ACCIF02.CANE-000
Category: Interface options

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 5ACCIF02.CANE-000?

Interface card - 1x CAN interface (SJA1000) - 1x ETH 10/100/1000 - For APC3x00/PPC3x00

Specifications

General information

Diagnostics – Data transfer	Yes, using LED status indicator
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
B&R ID code	0xF171

Interfaces

Ethernet – Quantity	1
Ethernet – Controller	Intel I210
Ethernet – Variant	RJ45, shielded
Ethernet – Transfer rate	10/100/1000 Mbit/s (note: Switching takes place automatically.)
Ethernet – Line length	Max. 100 m between two stations (segment length)
CAN – Type	Can be switched on and off with slide switch
CAN – Default setting	Off
CAN – Quantity	1
CAN – Controller	SJA1000
CAN – Variant	DSUB, 9-pin, male, galvanically isolated
CAN – Transfer rate	Max. 1 Mbit/s

Electrical properties

Power consumption

1.5 W

Operating conditions

Pollution degree per EN 61131-2

Pollution degree 2

Ambient conditions

Temperature – Operation	0 to 55°C (note: For detailed information, see the temperature tables in the user's manual.)
Temperature – Storage	-20 to 60°C
Temperature – Transport	-20 to 60°C
Relative humidity – Operation	5 to 90%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Weight

Approx. 60 g

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

5ACCIF02.CANE-000: frequently asked questions

When can 5ACCIF02.CANE-000 be shipped?

5ACCIF02.CANE-000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5ACCIF02.CANE-000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5ACCIF02.CANE-000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5ACCIF02.CANE-000, subject to availability and destination.
