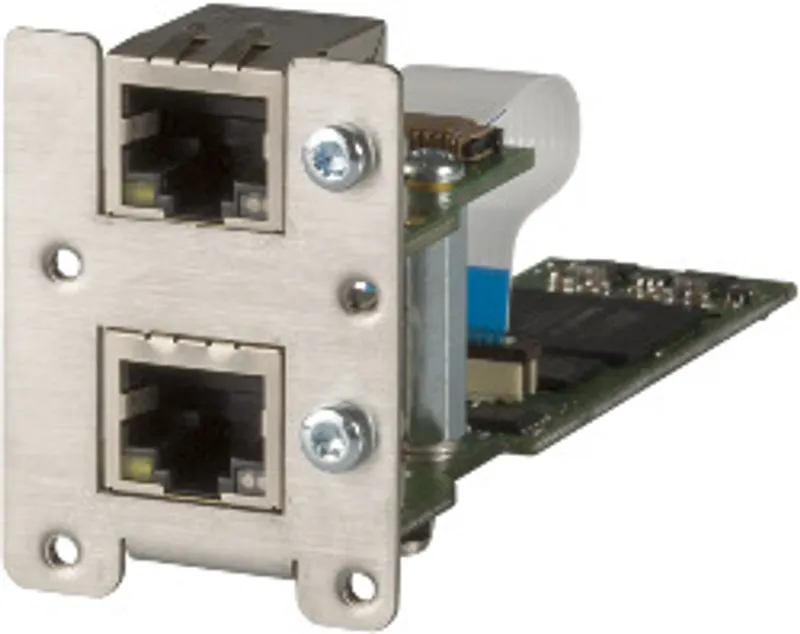

B&R 5ACCIF02.FPLK-000
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Interface options |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.55 kg |
Shipping & availability
When can 5ACCIF02.FPLK-000 be shipped?
5ACCIF02.FPLK-000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5ACCIF02.FPLK-000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5ACCIF02.FPLK-000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5ACCIF02.FPLK-000, subject to availability and destination.
Interface card - 1x POWERLINK interface - 2 MB SRAM - Integrated 2-port hub - Ring redundancy - POWERLINK managing or controlled mode - PRC function - For APC3x00/PPC3x00
Specifications
Specifications
| B&R ID code | 0xF10E |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | In preparation |
| UL | cULus E115267 Industrial control equipment |
| Size | 2 MB |
| Battery-backed | Yes (backup battery of the system unit) |
| Remanent variables in power failure mode | 256 kB (for e.g. Automation Runtime, see Automation Help) |
| Quantity | 1 (integrated 2-port hub) |
| Type | Type 4, redundant |
| Variant | RJ45, shielded |
| Transfer rate | 100 Mbit/s |
| Transfer | 100BASE-TX |
| Line length | Max. 100 m between two stations (segment length) |
| Power consumption | 2 W |
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Operation | 5 to 90%, non-condensing |
| Storage | 5 to 95%, non-condensing |
| Transport | 5 to 95%, non-condensing |
| Weight | Approx. 55 g |
