Braided hose and fittings Parts

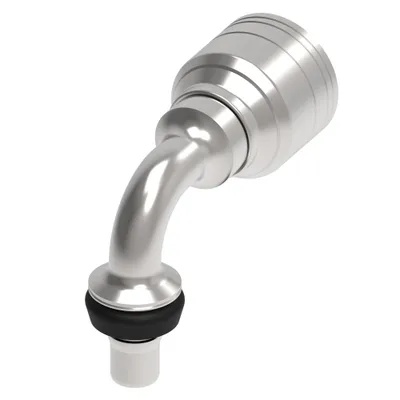

Danfoss

1A10MCB10

HOSE FTG, 1A/10, STC-M/10, CS, 90D

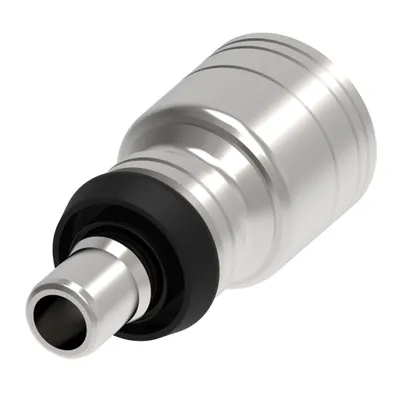

Danfoss

1A10MC10

HOSE FTG, 1A/10, STC-M/10, CS, STR

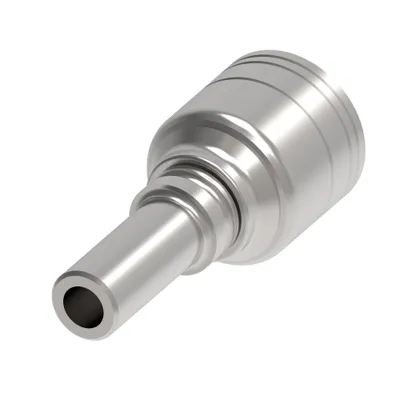

Danfoss

1A10LM6

HOSE FTG, 1A/06, STPIPE/10, CS, STR

Danfoss

1A10LM5

HOSE FTG, 1A/05, STPIPE/10, CS, STR

Danfoss

1A10LM4

HOSE FTG, 1A/04, STPIPE/10, CS, STR

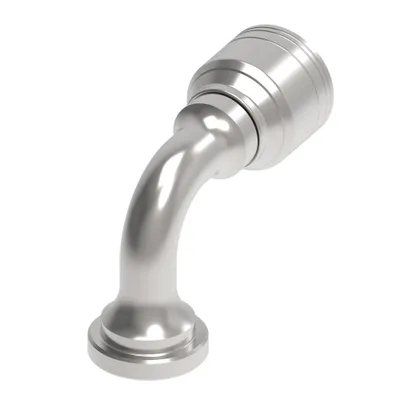

Danfoss

1A10KSB10

HOSE FTG, 1A/10, KOMFL/10, CS, 90D

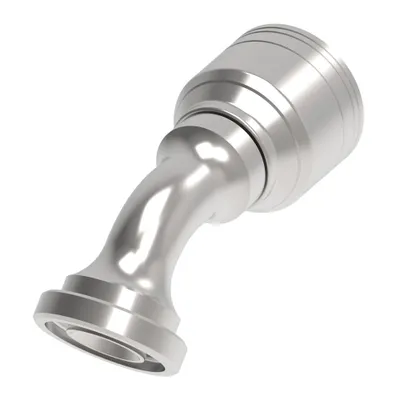

Danfoss

1A10KSA10

HOSE FTG, 1A/10, KOMFL/10, CS, 45D

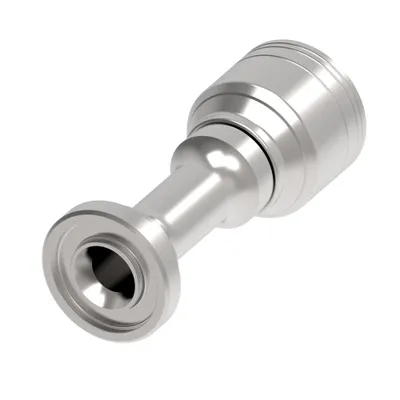

Danfoss

1A10KS10

HOSE FTG, 1A/10, KOMFL/10, CS, STR

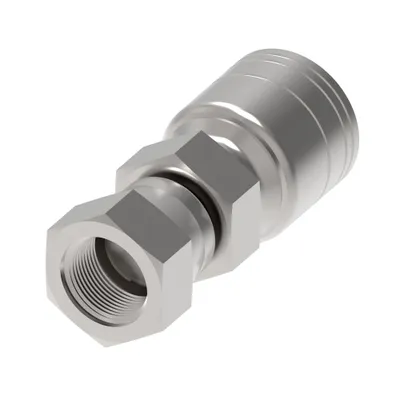

Danfoss

1A10KF12

HOSE FTG, 1A/12, KSF/10, CS, STR

Danfoss

1A10KF10

HOSE FTG, 1A/10, KSF/10, CS, STR

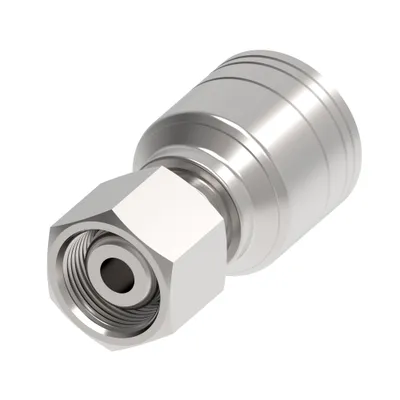

Danfoss

1A10GM5

HOSE FTG, 1A/05, GM/10, CS, STR

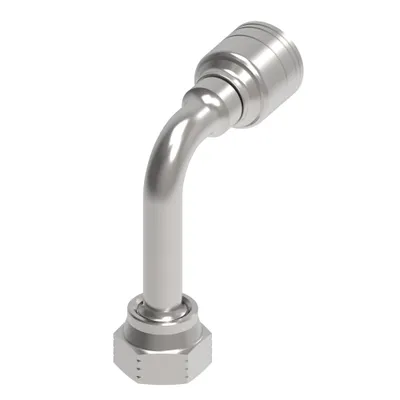

Danfoss

1A10FRC10

HOSE FTG, 1A/10, ORS-F/10, CS, 90D

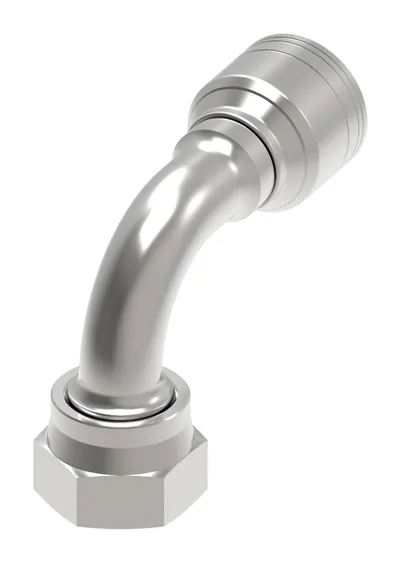

Danfoss

1A10FRB12

HOSE FTG, 1A/12, ORS-F/10, CS, 90D

Danfoss

1A10FRB10.047

HOSE FTG, 1A/10, ORS-F/10, CS, 90D

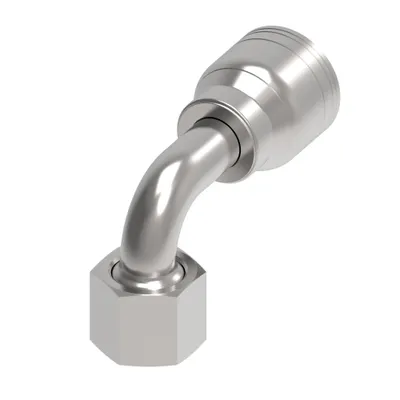

Danfoss

1A10FRB10

HOSE FTG, 1A/10, ORS-F/10, CS, 90D

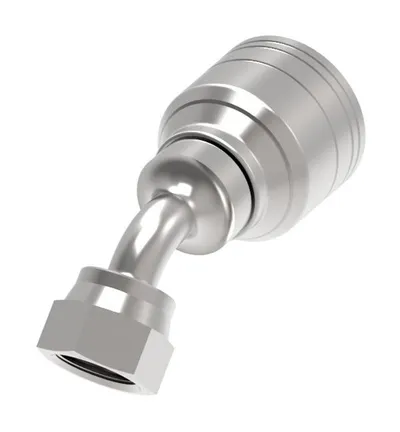

Danfoss

1A10FRA8

HOSE FTG, 1A/08, ORS-F/10, CS, 45D

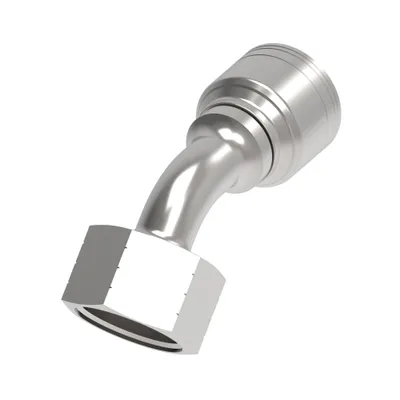

Danfoss

1A10FRA12

HOSE FTG, 1A/12, ORS-F/10, CS, 45D

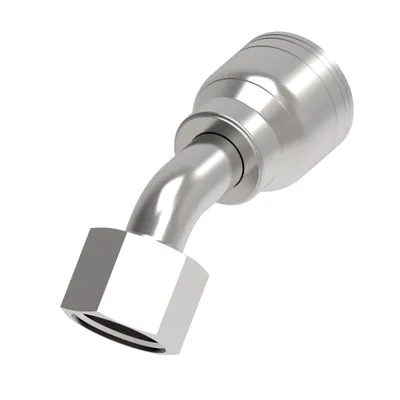

Danfoss

1A10FRA10

HOSE FTG, 1A/10, ORS-F/10, CS, 45D

Danfoss

1A10FR8

HOSE FTG, 1A/08, ORS-F/10, CS, STR

Danfoss

1A10FR10

HOSE FTG, 1A/10, ORS-F/10, CS, STR

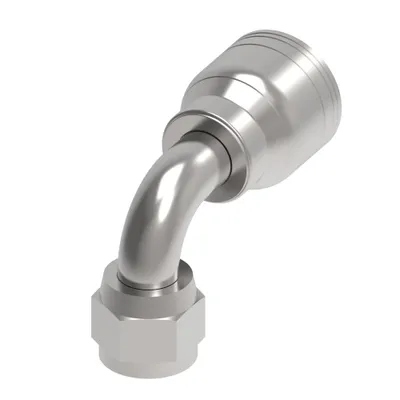

Danfoss

1A10FJB10

HOSE FTG, 1A/10, JIC-F/10, CS, 90D

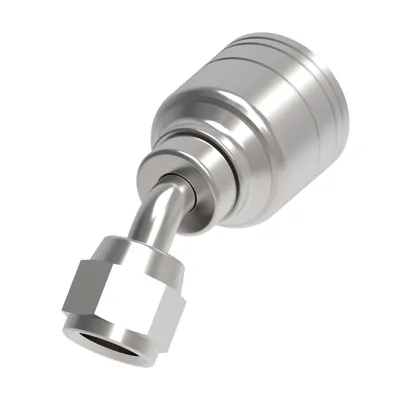

Danfoss

1A10FJA8

HOSE FTG, 1A/08, JIC-F/10, CS, 45D

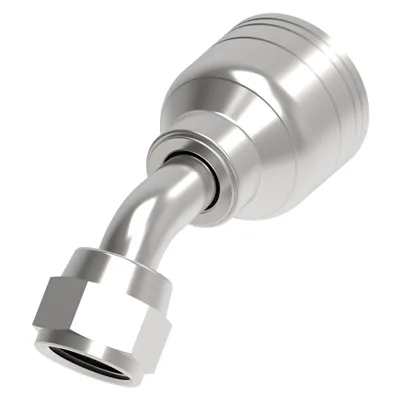

Danfoss

1A10FJA10

HOSE FTG, 1A/10, JIC-F/10, CS, 45D

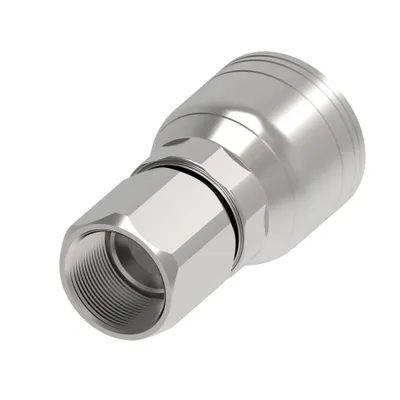

Danfoss

1A10FJ8

HOSE FTG, 1A/08, JIC-F/10, CS, STR

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	A dimension IN	A dimension MM	Hose cut off factor MM	Product length in	Product length mm
1A10MCB10	3.070	77.900	48.500	3.570	90.678
1A10MC10	2.590	65.700	39.600	2.720	69.088
1A10LM6	2.340	59.500	34.200	2.340	59.436
1A10LM5	2.250	57.100	33.200	57.100	57.100
1A10LM4	2.220	56.500	33.100	2.220	56.388
1A10KSB10	2.940	74.600	48.500	3.740	94.996
1A10KSA10	3.260	82.800	56.700	4.920	124.968
1A10KS10	3.580	90.900	64.800	3.710	94.234
1A10KF12	2.900	73.600	46.400	3.010	76.454
1A10KF10	2.840	72.200	46.000	2.970	75.438
1A10GM5	1.830	46.600	22.700	1.830	46.482
1A10FRC10	3.080	78.300	48.600	3.690	93.726
1A10FRB12	2.990	76.000	48.900	3.660	92.964
1A10FRB10.047	2.940	74.700	48.600	3.580	90.932
1A10FRB10	3.080	78.300	48.600	3.673	93.300
1A10FRA8	3.010	76.500	51.100	4.303	109.300
1A10FRA12	3.110	78.900	51.700	4.310	109.474
1A10FRA10	3.180	80.900	51.300	4.299	109.200
1A10FR8	2.510	63.800	37.300	3.130	79.502
1A10FR10	2.610	66.300	40.800	3.290	83.566
1A10FJB10	2.720	69.100	39.300	3.230	82.042
1A10FJA8	2.860	72.700	47.244	4.040	102.616
1A10FJA10	2.960	75.200	45.400	3.960	100.584
1A10FJ8	2.590	65.700	39.200	2.700	68.580

Common to all listed parts

Construction Style	Crimp
End size 1	-10
Product material	Carbon steel
Series	1A/Z Series
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
