Danfoss 1A10FJB10

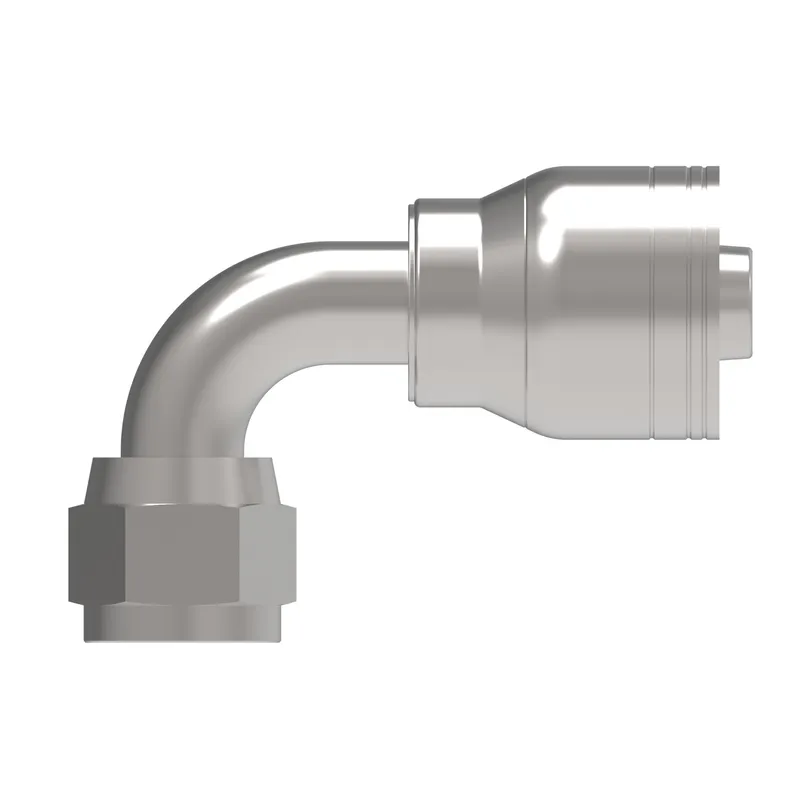

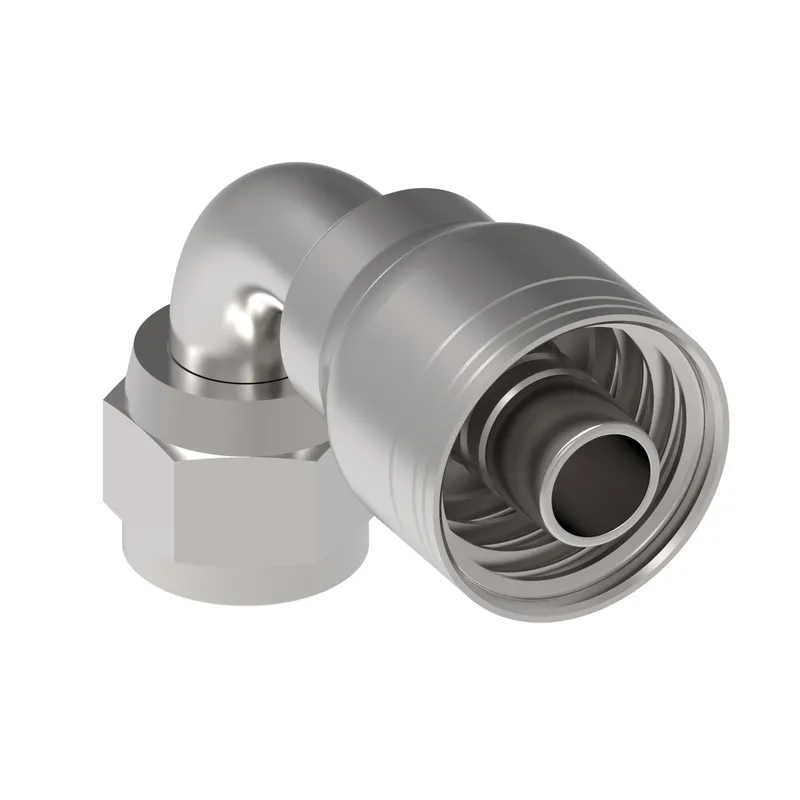

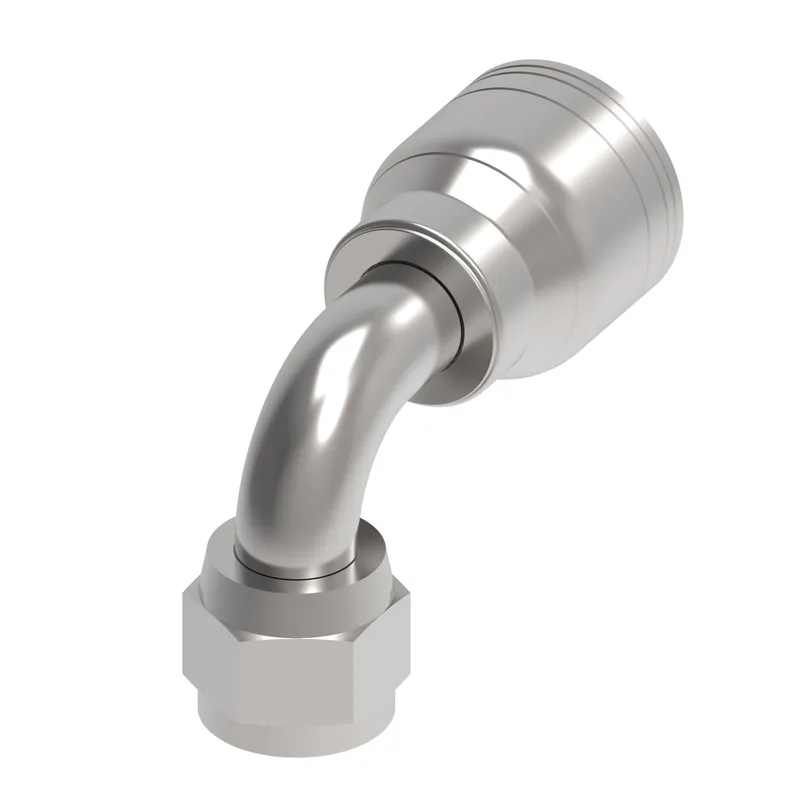

HOSE FTG, 1A/10, JIC-F/10, CS, 90D

MPN: 1A10FJB10
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A10FJB10?

Danfoss HOSE FTG, 1A/10, JIC-F/10, CS, 90D, manufacturer part number 1A10FJB10. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146168054
A dimension IN	2.720
A dimension MM	69.100
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Construction Style	Crimp
Drop dimension IN	1.230
Drop dimension MM	31.20
End connection torque	57-62 lb-ft(77-85 Nm)
End size 1	-10
End Type 1	Female 37 degree swivel
Finish plating	Zinc plating
Hex size 1 IN	0.940
Hex size 1 MM	23.876
Hose cut off factor IN	1.550
Hose cut off factor MM	39.300
Hose size	-10
Inside diameter IN	0.460
Inside diameter MM	11.700
Product height in	2.410
Product height mm	61.214
Product length in	3.230
Product length mm	82.042
Product material	Carbon steel
Product width in	1.390
Product width mm	35.306
Proposition 65	Cancer and Reproductive Harm
Series	1A/Z Series
Thread sealant	No
Thread size 1	7/8-14 UNF
Working pressure max BAR	350.00
Working pressure max PSI	5100.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
