Danfoss 1A10FRA12

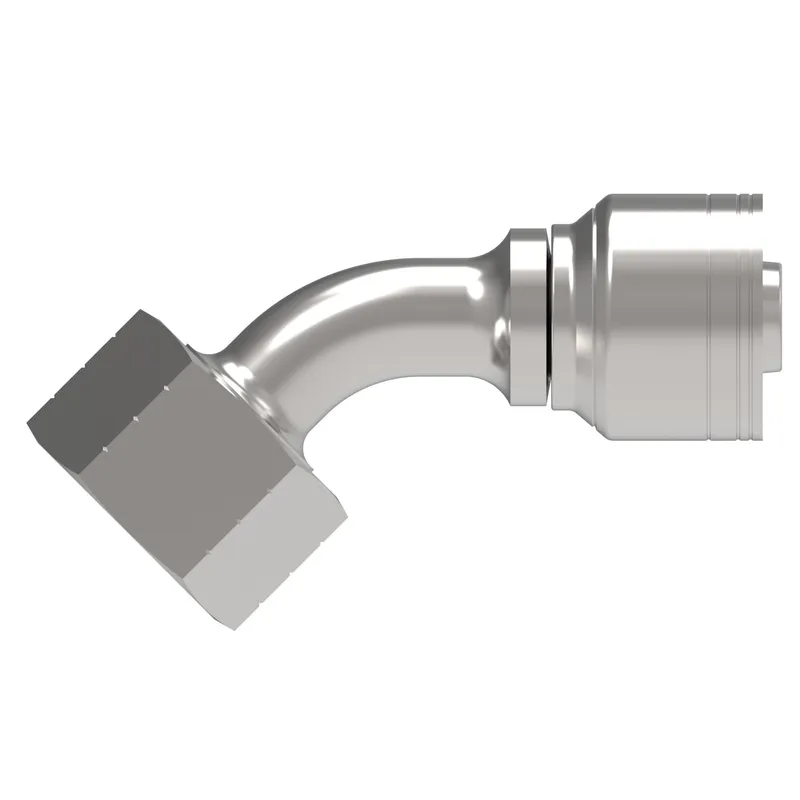

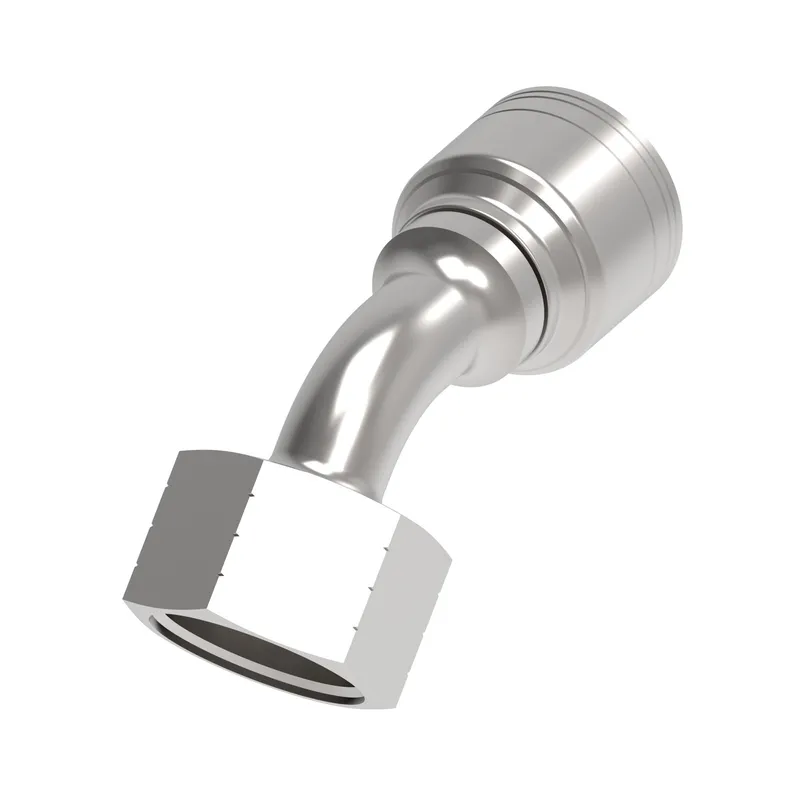

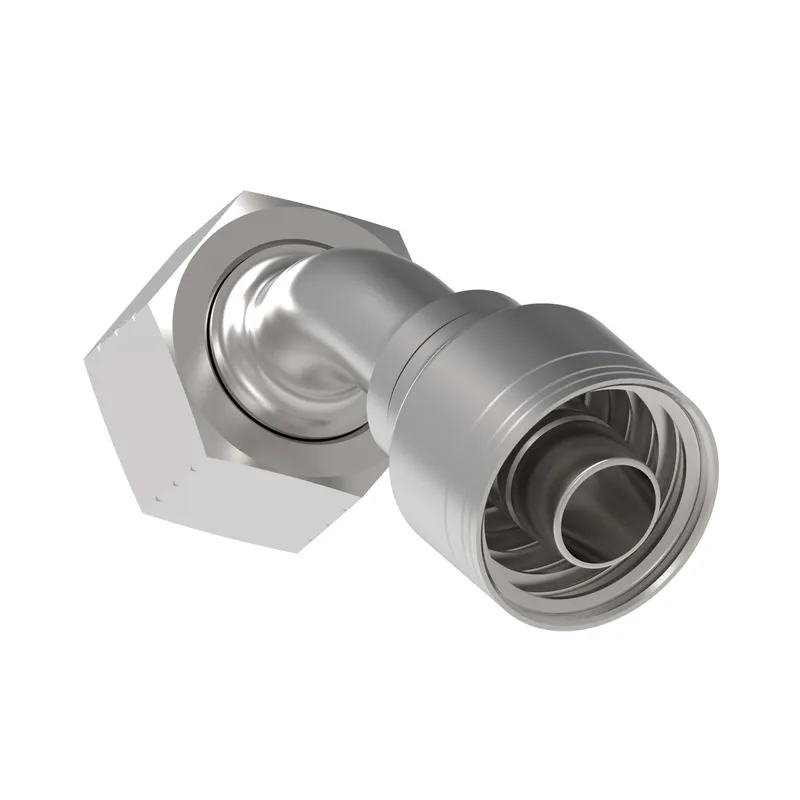

HOSE FTG, 1A/12, ORS-F/10, CS, 45D

MPN: 1A10FRA12
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A10FRA12?

Danfoss HOSE FTG, 1A/12, ORS-F/10, CS, 45D, manufacturer part number 1A10FRA12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.110
A dimension MM	78.900
Angle shape	45 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Construction Style	Crimp
Drop dimension IN	0.650
Drop dimension MM	16.50
End connection torque	46-50 lb-ft(62-68 Nm)
End size 1	-10
End Type 1	Female ORFS swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.180
Hex size 1 MM	29.972
Hose cut off factor IN	2.040
Hose cut off factor MM	51.700
Hose size	-12
Inside diameter IN	0.450
Inside diameter MM	11.500
Product height in	2.020
Product height mm	51.308
Product length in	4.310
Product length mm	109.474
Product material	Carbon steel
Product width in	1.560
Product width mm	39.624
Series	1A/Z Series
Thread sealant	No
Thread size 1	1-14 UNS
Working pressure max BAR	552.00
Working pressure max PSI	8100.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
