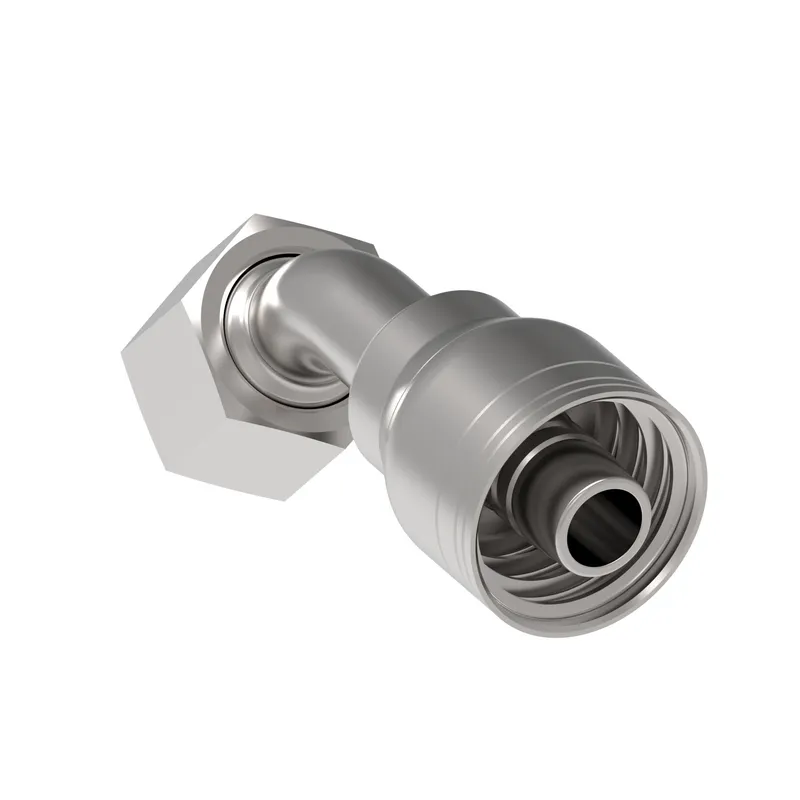

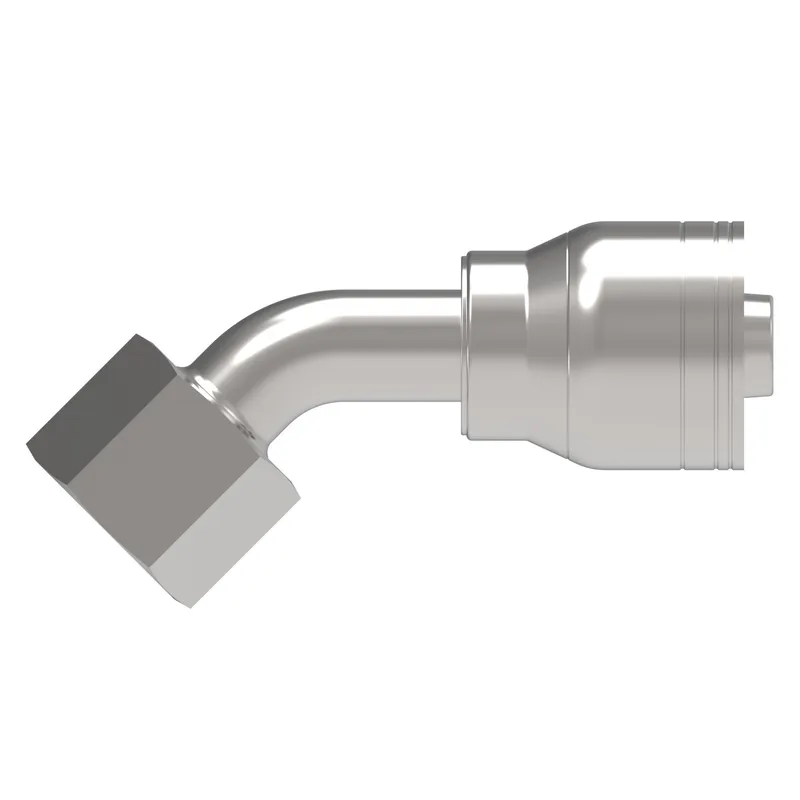

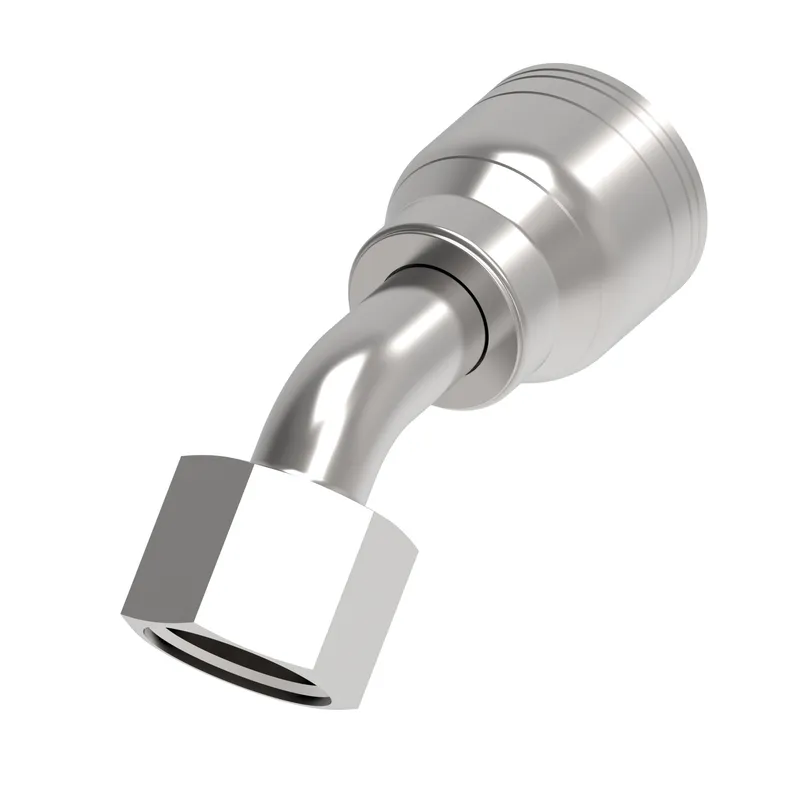

Danfoss 1A10FRA10

HOSE FTG, 1A/10, ORS-F/10, CS, 45D

MPN: 1A10FRA10
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A10FRA10?

Danfoss HOSE FTG, 1A/10, ORS-F/10, CS, 45D, manufacturer part number 1A10FRA10. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.180
A dimension MM	80.900
Angle shape	45 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Construction Style	Crimp
Drop dimension IN	0.650
Drop dimension MM	16.50
End connection torque	46-50 lb-ft(62-68 Nm)
End size 1	-10
End Type 1	Female ORFS swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.181
Hex size 1 MM	30.000
Hose cut off factor IN	2.020
Hose cut off factor MM	51.300
Hose size	-10
Inside diameter IN	0.440
Inside diameter MM	11.100
Product height in	2.465
Product height mm	62.600
Product length in	4.299
Product length mm	109.200
Product material	Carbon steel
Product width in	1.386
Product width mm	35.2
Proposition 65	Cancer and Reproductive Harm
Series	1A/Z Series
Thread sealant	No
Thread size 1	1-14 UNS
Working pressure max BAR	552
Working pressure max PSI	8100
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
