Braided hose and fittings Parts

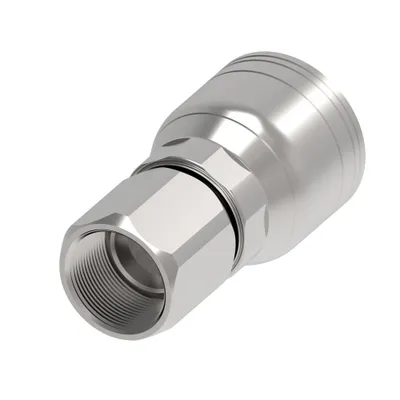

Danfoss

1A10FJ6

HOSE FTG, 1A/06, JIC-F/10, CS, STR

Danfoss

1A10FJ12

HOSE FTG, 1A/12, JIC-F/10, CS, STR

Danfoss

1A10FJ10

HOSE FTG, 1A/10, JIC-F/10, CS, STR

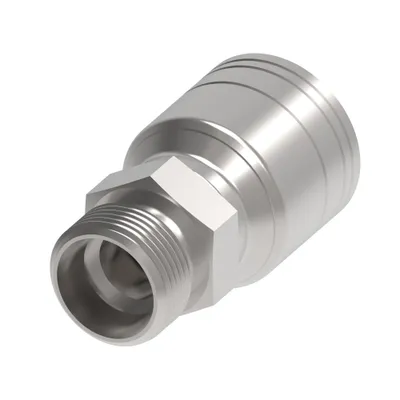

Danfoss

1A10EK6

HOSE FTG, 1A/06, EK/10, CS, STR

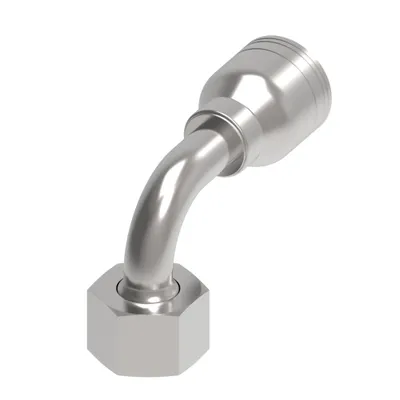

Danfoss

1A10DSB8

HOSE FTG, 1A/08, DKOH-B/10, CS, 90D

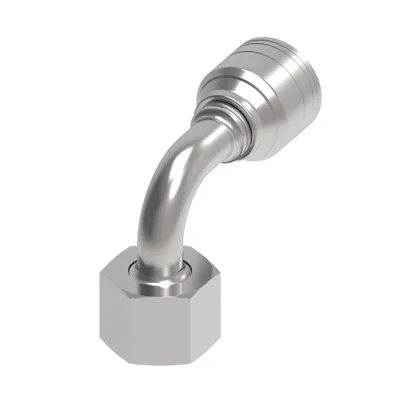

Danfoss

1A10DSB6

HOSE FTG, 1A/06, DKOH-B/10, CS, 90D

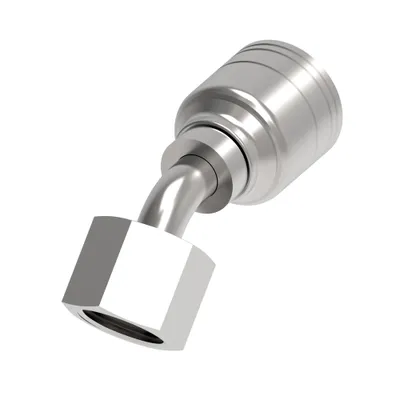

Danfoss

1A10DSA6

HOSE FTG, 1A/06, DKOH-B/10, CS, 45D

Danfoss

1A10DS6

HOSE FTG, 1A/06, DKOL/10, CS, STR

Danfoss

1A10DLB6AH

HOSE FTG, 1A/06, DKOL/10, CS, 90D

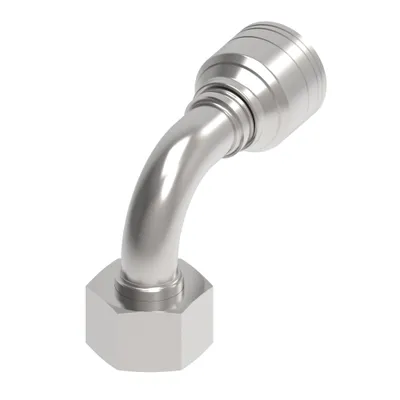

Danfoss

1A10DLB5

HOSE FTG, 1A/05, DKOL/10, CS, 90D

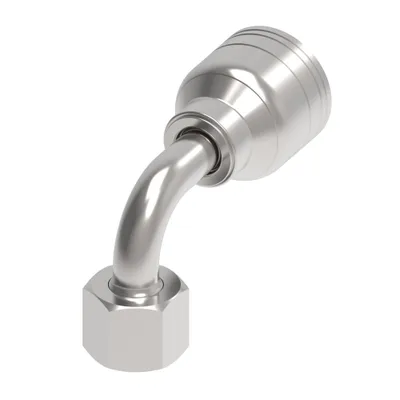

Danfoss

1A10DLB4

FTG TTC M18x1.5 F L 90

Danfoss

1A10DLA8

HOSE FTG, 1A/08, DKOL/10, CS, 45D

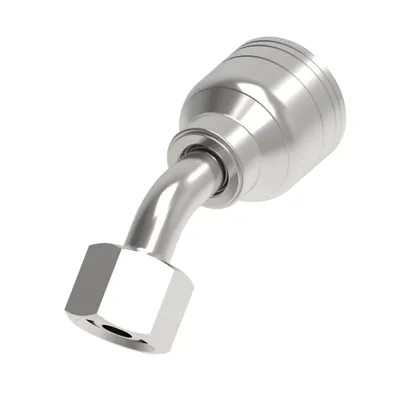

Danfoss

1A10DLA6AH

HOSE FTG, 1A/06, DKOL/10, CS, 45D

Danfoss

1A10DLA5

HOSE FTG, 1A/05, DKOL/10, CS, 45D

Danfoss

1A10DLA4

FTG TTC M18x1.5 F L 45

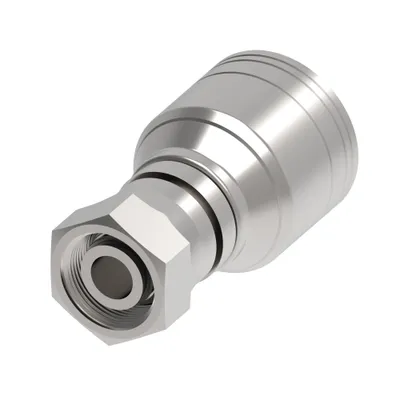

Danfoss

1A10DL8

HOSE FTG, 1A/08, DKOL/10, CS, STR

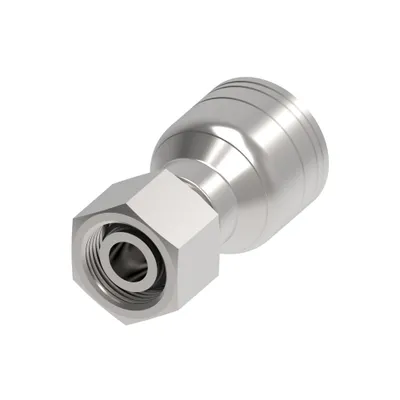

Danfoss

1A10DL6AH

HOSE FTG, 1A/06, DKOL/10, CS, STR

Danfoss

1A10DL5

HOSE FTG, 1A/05, DKOL/10, CS, STR

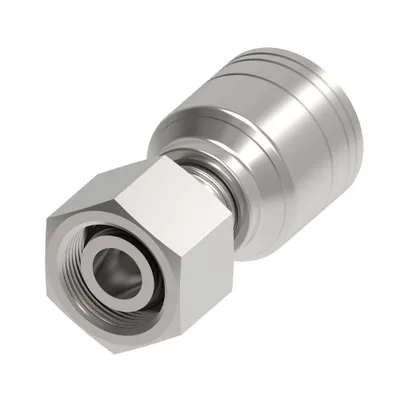

Danfoss

1A10DL4

HOSE FTG, 1A/04, DKOL/10, CS, STR

Danfoss

1A10DK8

HOSE FTG, 1A/08, DKL-M/10, CS, STR

Danfoss

1A10DK6AH

HOSE FTG, 1A/06, DKL-M/10, CS, STR

Danfoss

1A10DK6

HOSE FTG, 1A/06, DKL-M/10, CS, STR

Danfoss

1A10DK5

HOSE FTG, 1A/05, DKL-M/10, CS, STR

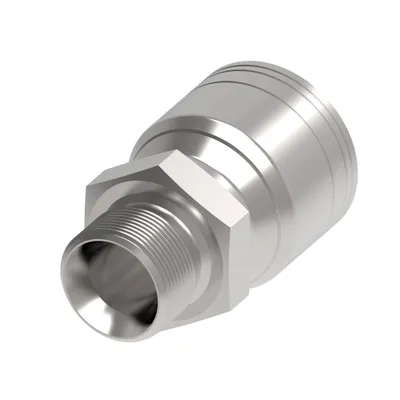

Danfoss

1A10BP10

HOSE FTG, 1A/10, BSPJ/10, CS, STR

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	A dimension MM	Product height in	Product height mm	Product length in	Product length mm
1A10FJ6	57.500	1.227	31.170	2.264	57.500
1A10FJ12	68.400	1.563	39.700	2.815	71.500
1A10FJ10	66.100	1.386	35.200	2.756	70.000
1A10EK6	52.600	0.940	23.876	2.070	52.578
1A10DSB8	71.200	1.610	40.894	2.800	71.120
1A10DSB6	63.800	2.180	55.372	3.040	77.216
1A10DSA6	68.800	1.850	46.990	3.240	82.296
1A10DS6	56.900	1.220	30.988	2.240	56.896
1A10DLB6AH	59.800	1.884	47.850	2.787	70.800
1A10DLB5	60.100	1.480	37.592	2.370	60.198
1A10DLB4	46.700	1.920	48.768	2.800	71.120
1A10DLA8	71.400	0.680	17.272	2.810	71.374
1A10DLA6AH	70.000	1.730	43.942	3.250	82.550
1A10DLA5	67.300	0.730	18.542	2.650	67.310
1A10DLA4	46.700	1.600	40.640	3.080	78.232
1A10DL8	60.000	1.220	31.000	2.362	60.000
1A10DL6AH	51.200	1.067	27.100	2.016	51.200
1A10DL5	50.700	1.000	25.400	1.996	50.700
1A10DL4	50.000	0.870	22.098	1.970	50.038
1A10DK8	54.500	1.220	31.000	2.146	54.500
1A10DK6AH	49.000	1.070	27.178	1.930	49.022
1A10DK6	49.000	1.070	27.178	1.930	49.022
1A10DK5	46.800	0.969	24.600	1.843	46.800
1A10BP10	61.900	1.390	35.306	2.440	61.976

Common to all listed parts

Construction Style	Crimp
Product material	Carbon steel
Thread sealant	No
