Danfoss 1A10FRC10

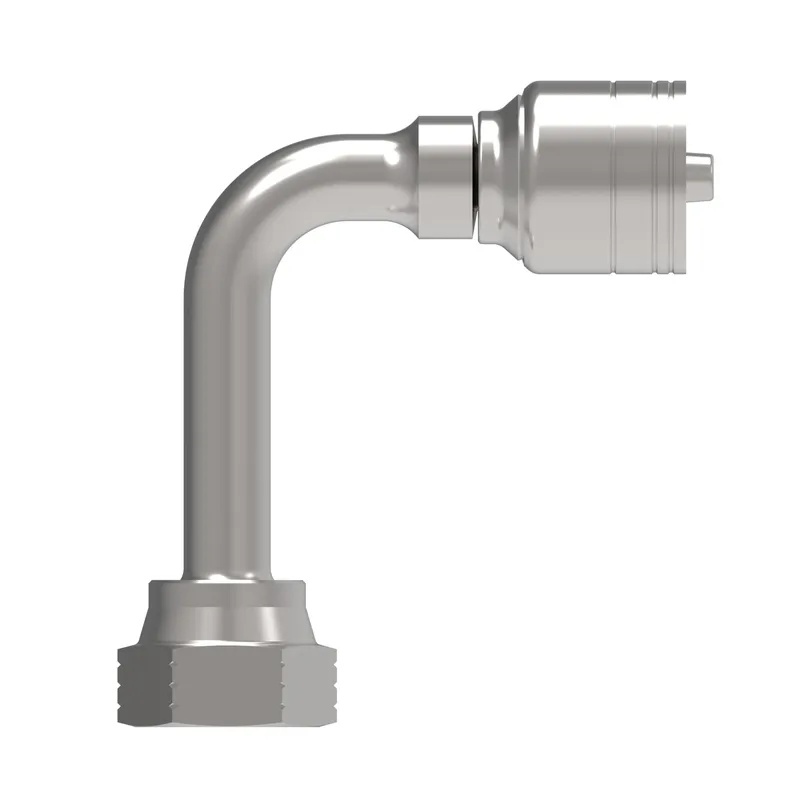

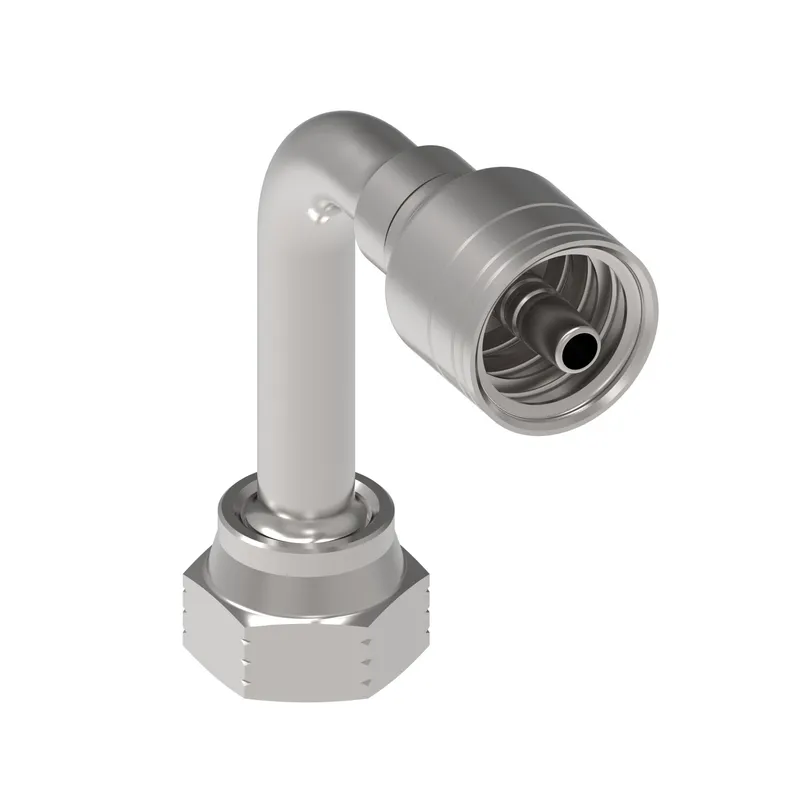

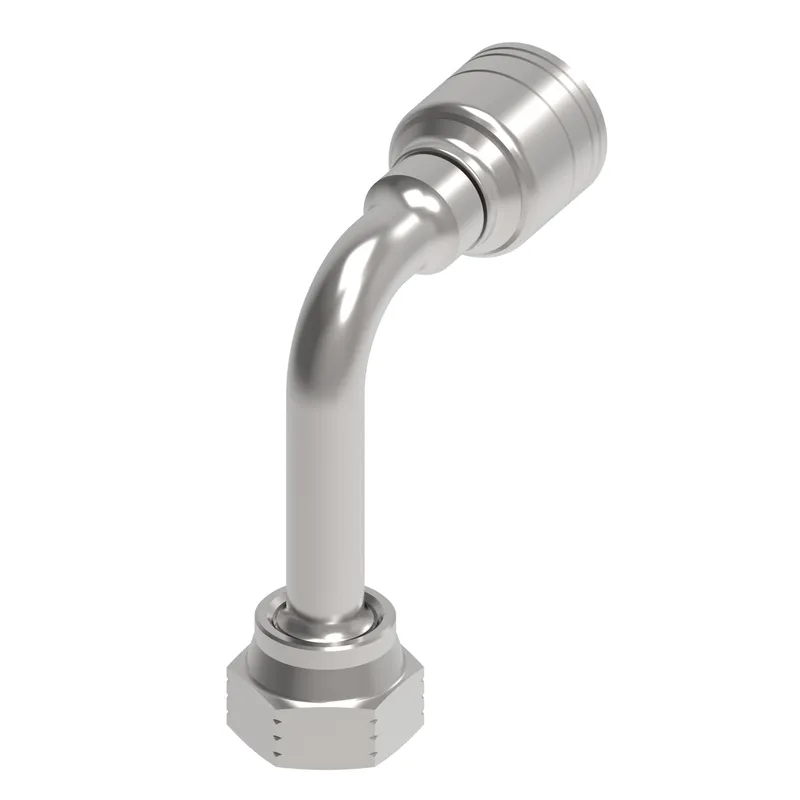

HOSE FTG, 1A/10, ORS-F/10, CS, 90D

MPN: 1A10FRC10
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A10FRC10?

Danfoss HOSE FTG, 1A/10, ORS-F/10, CS, 90D, manufacturer part number 1A10FRC10. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.080
A dimension MM	78.300
Angle shape	90 Degree
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Construction Style	Crimp
Drop dimension IN	2.760
Drop dimension MM	70.10
End connection torque	46-50 lb-ft(62-68 Nm)
End size 1	-10
End Type 1	Female ORFS swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.180
Hex size 1 MM	29.972
Hose cut off factor IN	1.910
Hose cut off factor MM	48.600
Hose size	-10
Inside diameter IN	0.440
Inside diameter MM	11.000
Product height in	3.980
Product height mm	101.092
Product length in	3.690
Product length mm	93.726
Product material	Carbon steel
Product width in	1.380
Product width mm	35.052
Series	1A/Z Series
Thread sealant	No
Thread size 1	1-14 UNS
Working pressure max BAR	552.00
Working pressure max PSI	8100.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
