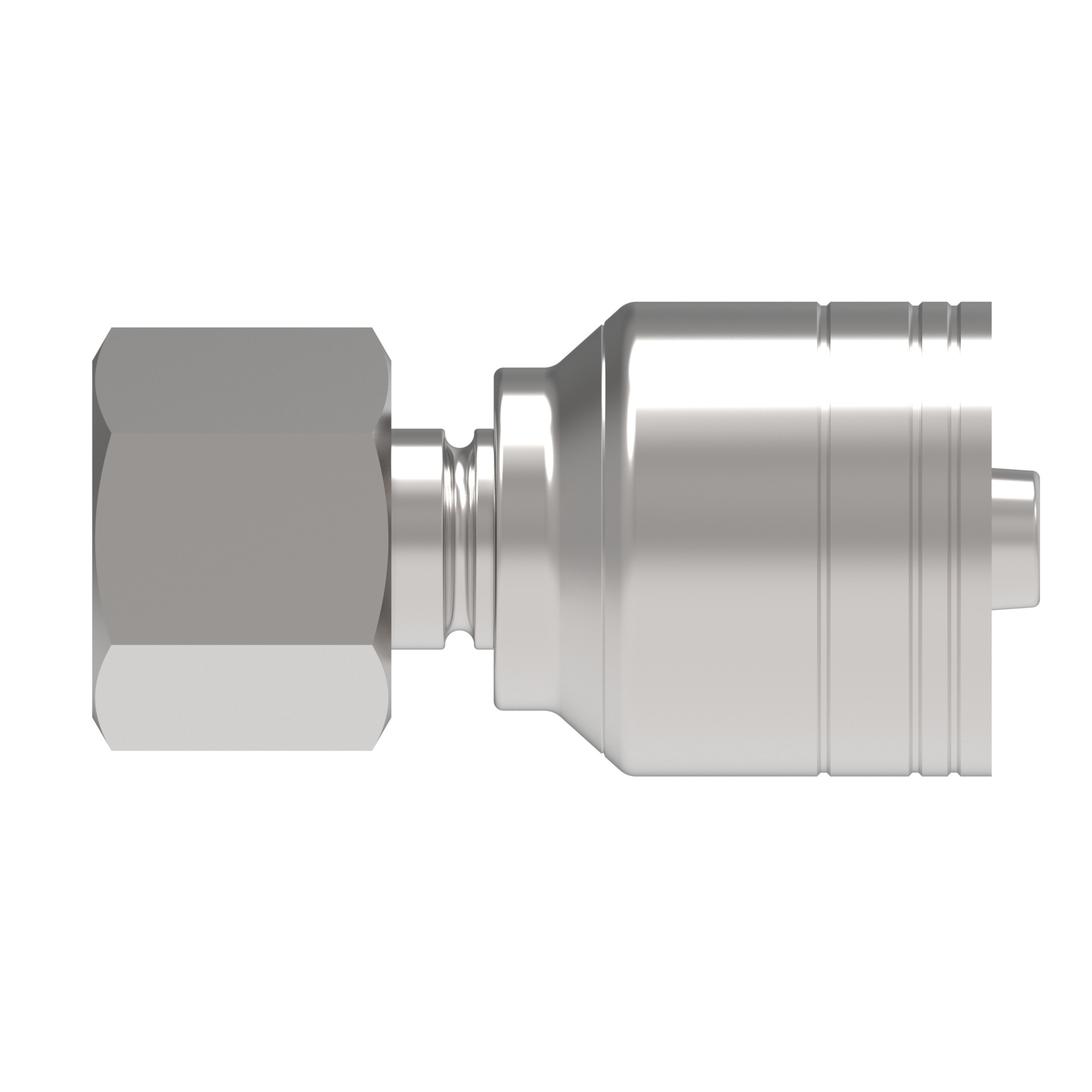

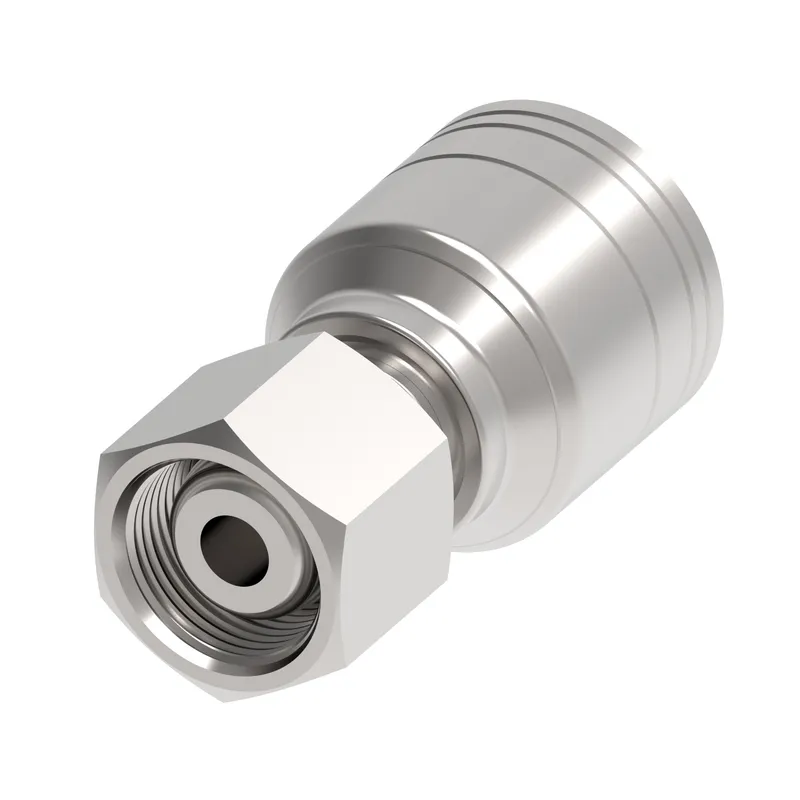

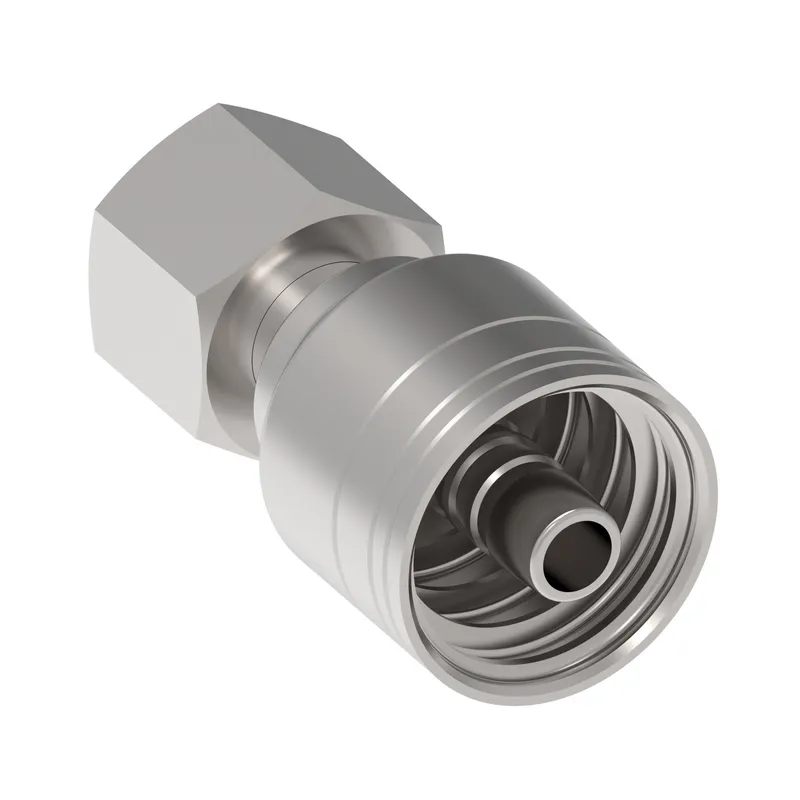

Danfoss 1A10GM5

HOSE FTG, 1A/05, GM/10, CS, STR

MPN: 1A10GM5
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A10GM5?

Danfoss HOSE FTG, 1A/05, GM/10, CS, STR, manufacturer part number 1A10GM5. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.830
A dimension MM	46.600
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.310
Compatible hose ID MM	7.900
Construction Style	Crimp
End size 1	-10
End Type 1	Female millimetrique globeseal
Finish plating	Dura-Kote
Hex size 1 IN	0.750
Hex size 1 MM	19.050
Hose cut off factor IN	0.890
Hose cut off factor MM	22.700
Hose size	-5
Inside diameter IN	0.210
Inside diameter MM	5.300
Product height in	0.970
Product height mm	24.638
Product length in	1.830
Product length mm	46.482
Product material	Carbon steel
Product width in	0.970
Product width mm	24.638
Proposition 65	Cancer and Reproductive Harm
Series	1A/Z Series
Thread sealant	No
Thread size 1	M16x1.5
Working pressure max BAR	400.00
Working pressure max PSI	5800.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
