Danfoss 1A10FR10

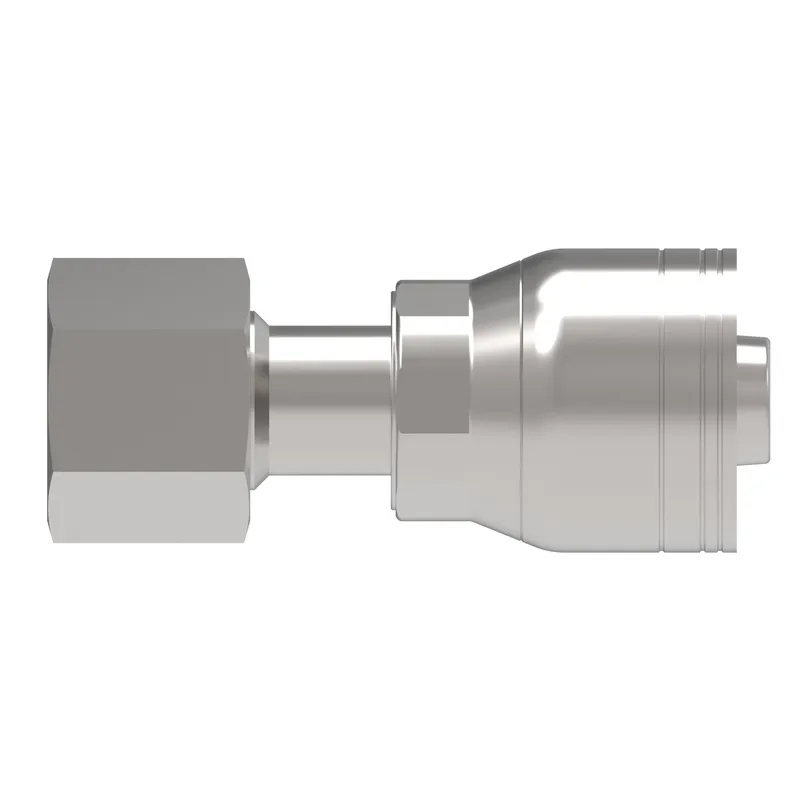

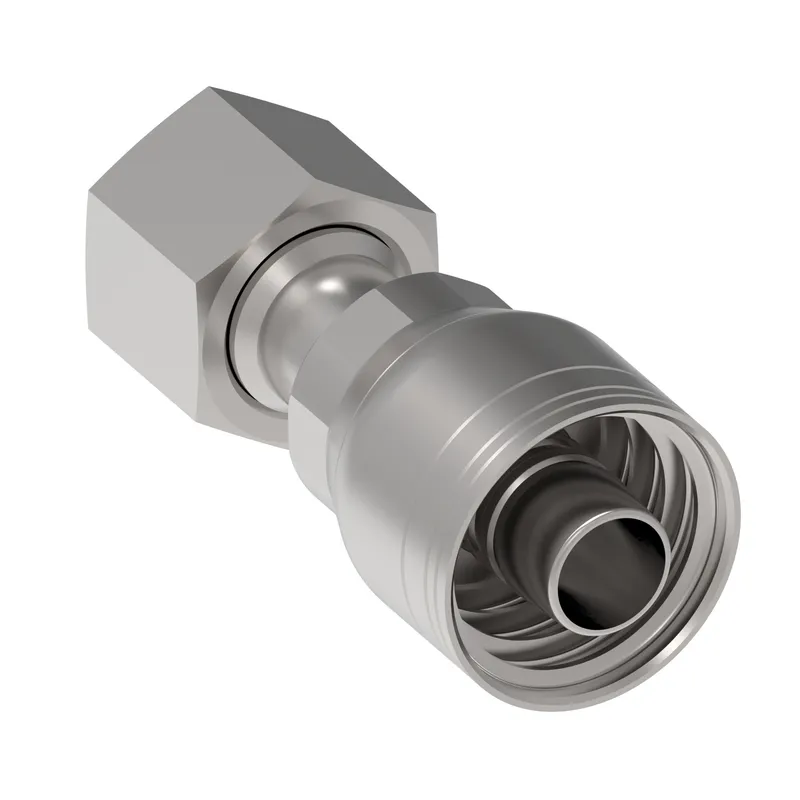

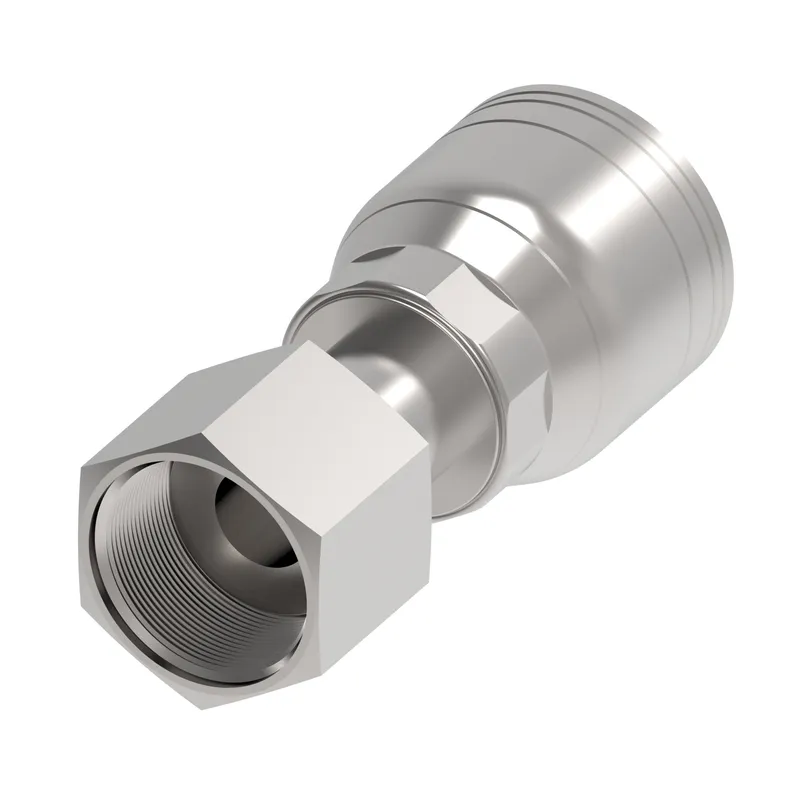

HOSE FTG, 1A/10, ORS-F/10, CS, STR

MPN: 1A10FR10
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A10FR10?

Danfoss HOSE FTG, 1A/10, ORS-F/10, CS, STR, manufacturer part number 1A10FR10. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.610
A dimension MM	66.300
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Construction Style	Crimp
End connection torque	46-50 lb-ft(62-68 Nm)
End size 1	-10
End Type 1	Female ORFS swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.180
Hex size 1 MM	29.972
Hex size 2 IN	1.060
Hex size 2 MM	27.000
Hose cut off factor IN	1.610
Hose cut off factor MM	40.800
Hose size	-10
Inside diameter IN	0.450
Inside diameter MM	11.500
Product height in	1.390
Product height mm	35.306
Product length in	3.290
Product length mm	83.566
Product material	Carbon steel
Product width in	1.390
Product width mm	35.306
Proposition 65	Cancer and Reproductive Harm
Series	1A/Z Series
Thread sealant	No
Thread size 1	1-14 UNS
Working pressure max BAR	552.00
Working pressure max PSI	8100.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40

1A10FR10: frequently asked questions

When can 1A10FR10 be shipped?

1A10FR10 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1A10FR10 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1A10FR10 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1A10FR10, subject to availability and destination.
