Danfoss 1A10FJA8

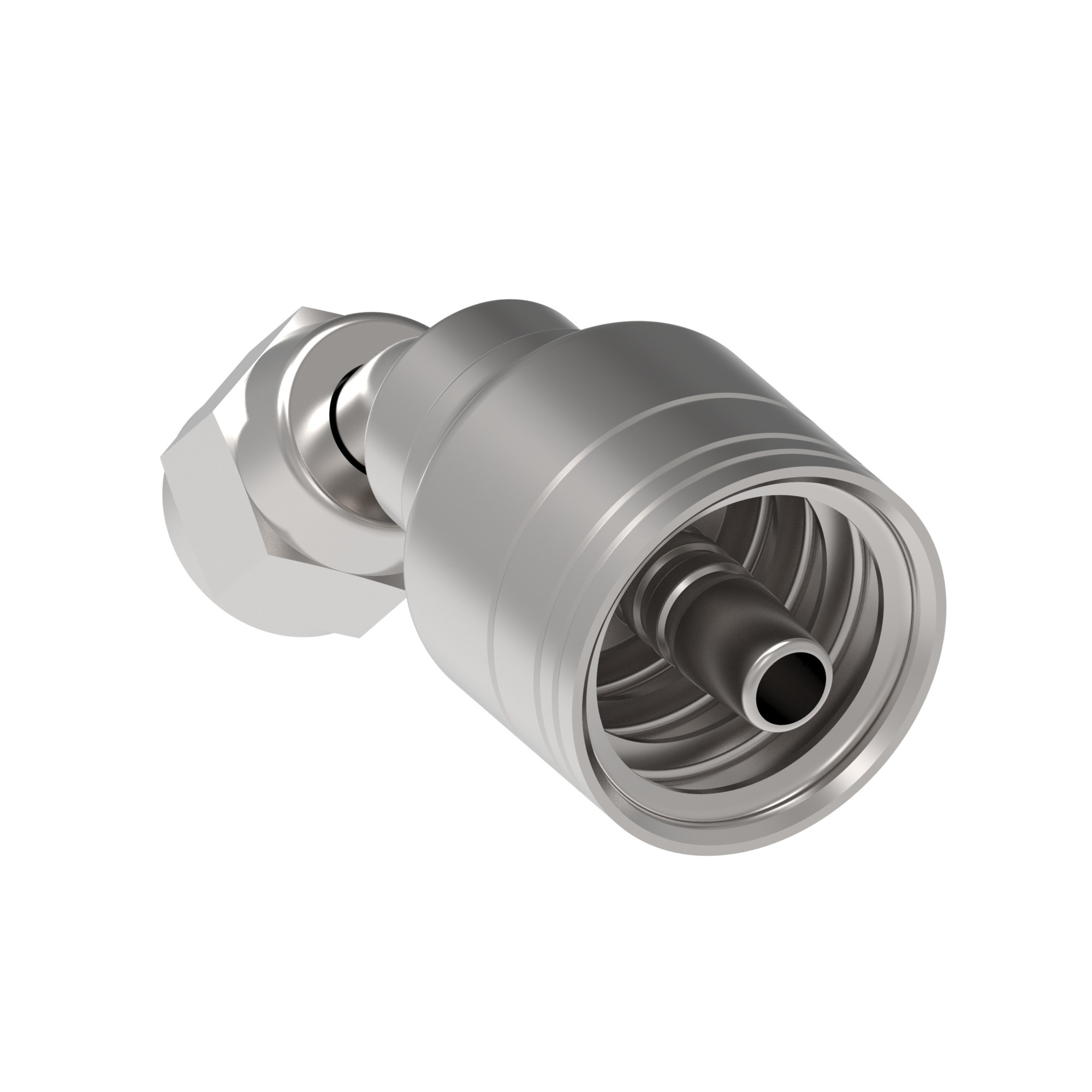

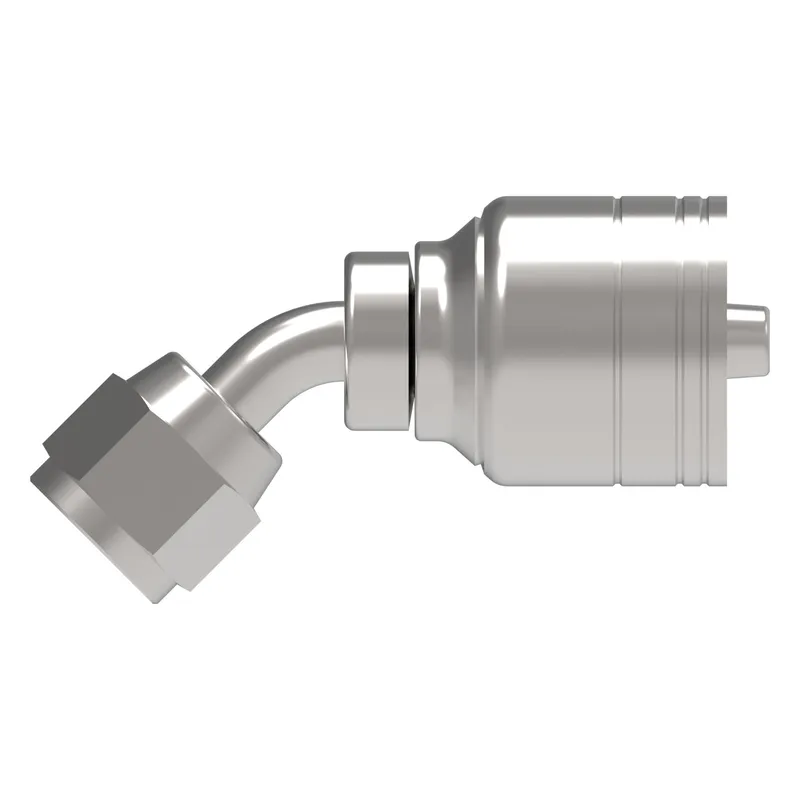

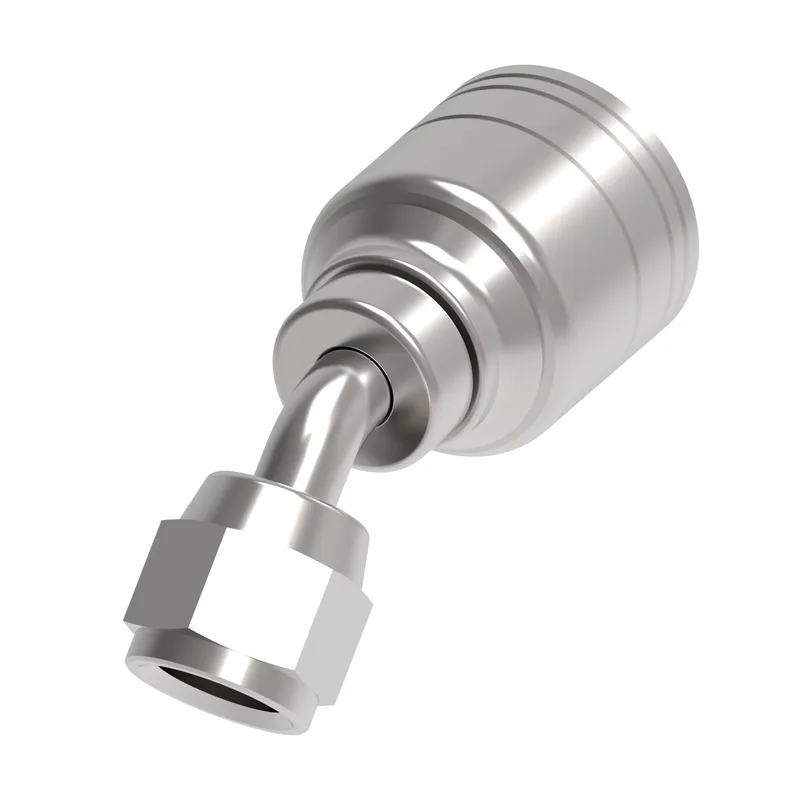

HOSE FTG, 1A/08, JIC-F/10, CS, 45D

MPN: 1A10FJA8
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A10FJA8?

Danfoss HOSE FTG, 1A/08, JIC-F/10, CS, 45D, manufacturer part number 1A10FJA8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146168047
A dimension IN	2.860
A dimension MM	72.700
Angle shape	45 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
Drop dimension IN	0.630
Drop dimension MM	16.00
End connection torque	57-62 lb-ft(77-85 Nm)
End size 1	-10
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.060
Hex size 1 MM	26.924
Hose cut off factor IN	1.860
Hose cut off factor MM	47.244
Hose size	-8
Inside diameter IN	0.380
Inside diameter MM	9.652
Product height in	2.260
Product height mm	57.404
Product length in	4.040
Product length mm	102.616
Product material	Carbon steel
Product width in	1.220
Product width mm	30.988
Proposition 65	Cancer and Reproductive Harm
Series	1A/Z Series
Thread sealant	No
Thread size 1	7/8-14 UNF
Working pressure max BAR	350
Working pressure max PSI	5100
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
