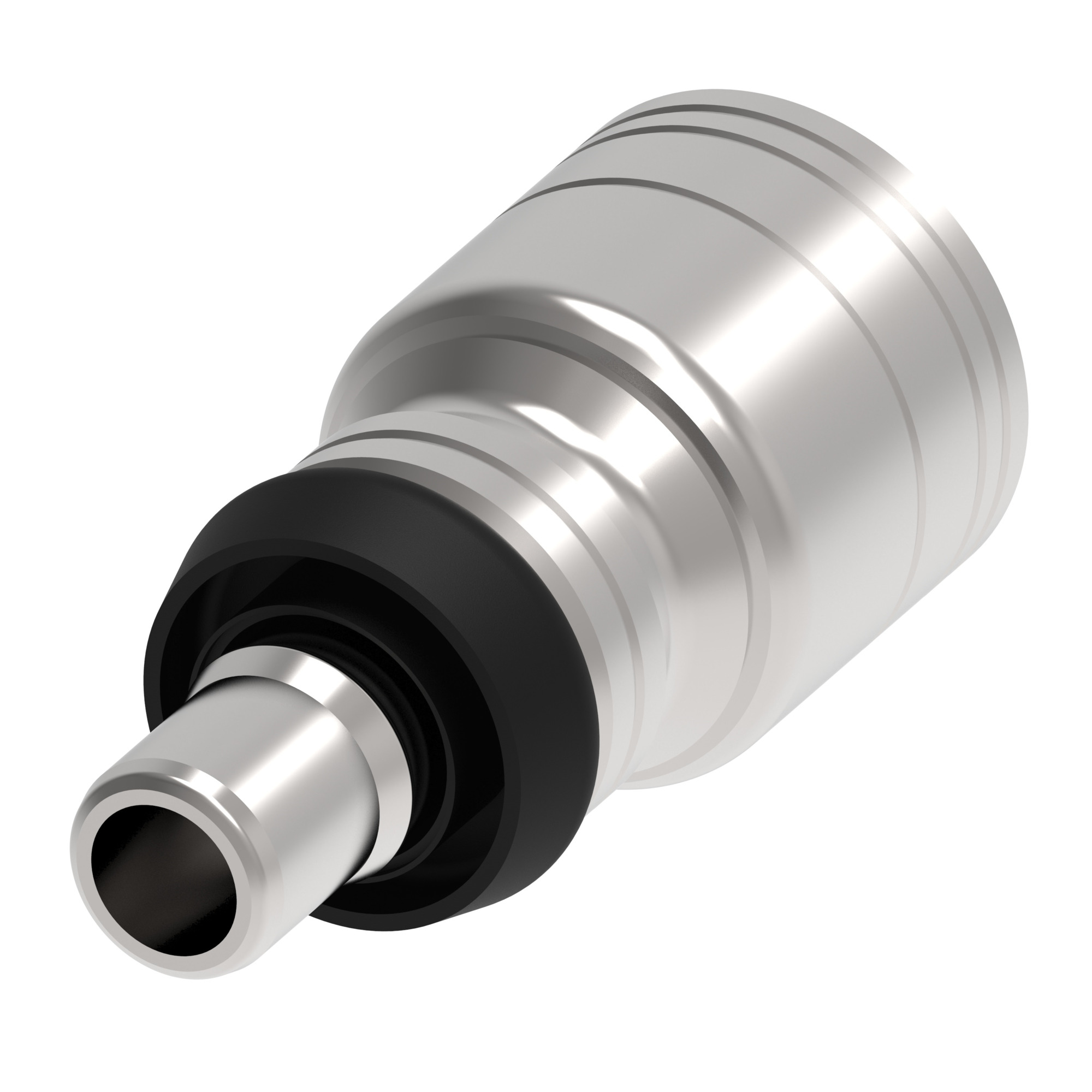

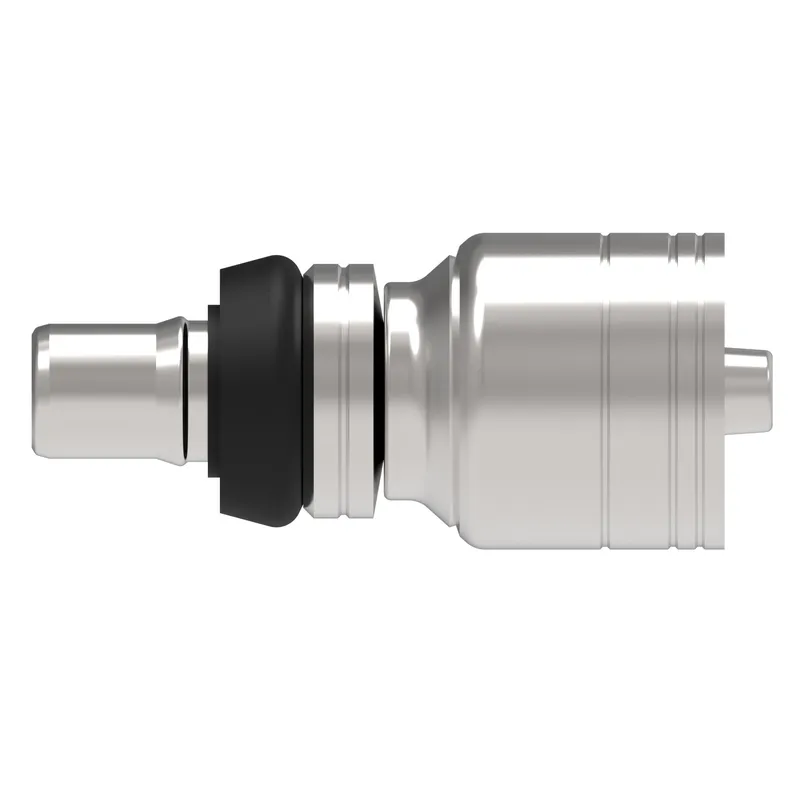

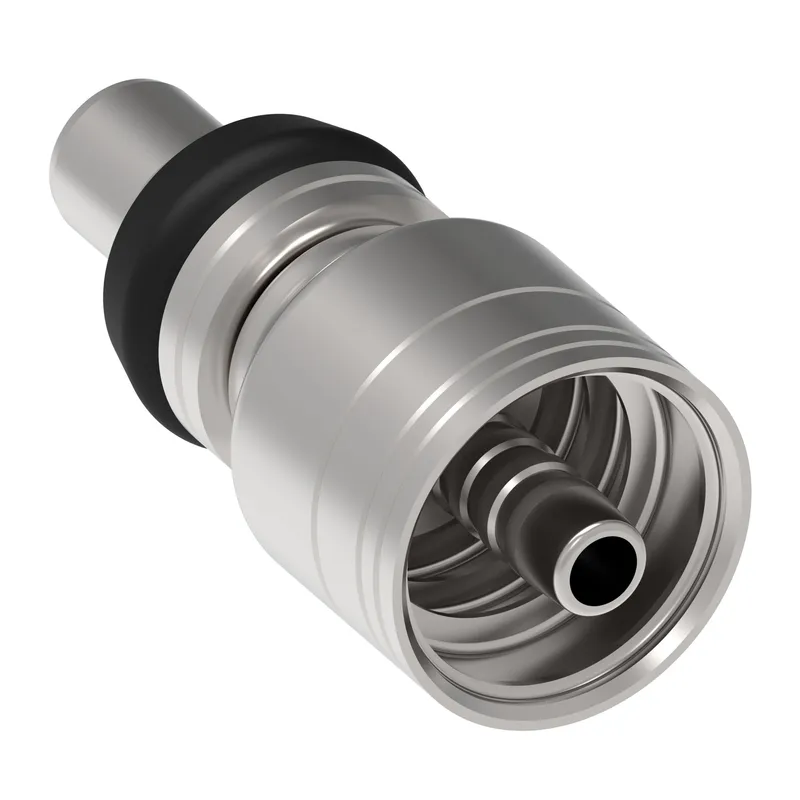

Danfoss 1A10MC10

HOSE FTG, 1A/10, STC-M/10, CS, STR

MPN: 1A10MC10
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A10MC10?

Danfoss HOSE FTG, 1A/10, STC-M/10, CS, STR, manufacturer part number 1A10MC10. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146123374
A dimension IN	2.590
A dimension MM	65.700
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Construction Style	Crimp
End size 1	-10
End Type 1	Male STC connector
Finish plating	Dura-Kote
Hose cut off factor IN	1.560
Hose cut off factor MM	39.600
Hose size	-10
Inside diameter IN	0.500
Inside diameter MM	12.800
Product height in	1.390
Product height mm	35.306
Product length in	2.720
Product length mm	69.088
Product material	Carbon steel
Product width in	1.390
Product width mm	35.306
Proposition 65	Cancer and Reproductive Harm
Seal material	Hydrogenated Nitrile (HNBR)
Series	1A/Z Series
Thread sealant	No
Working pressure max BAR	275.00
Working pressure max PSI	4000.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
