Braided hose and fittings Parts

Danfoss

1A12DK8AH

HOSE FTG, 1A/08, DKL-M/12, CS, STR

Danfoss

1A12DK6

HOSE FTG, 1A/06, DKL-M/12, CS, STR

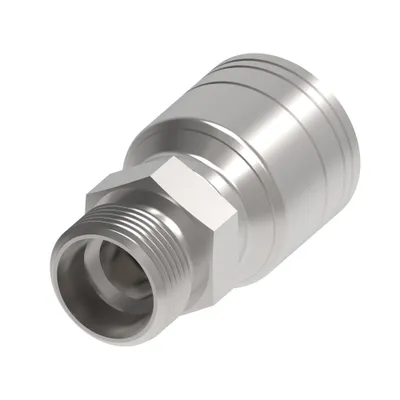

Danfoss

1A12DK10

HOSE FTG, 1A/10, DKL-M/12, CS, STR

Danfoss

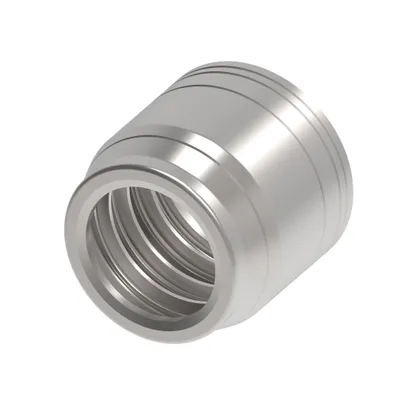

1A12C

SOCKET-PERM, 1A/12, CS

Danfoss

1A12BT12

HOSE FTG, 1A/12, BSPT-M/12, CS, STR

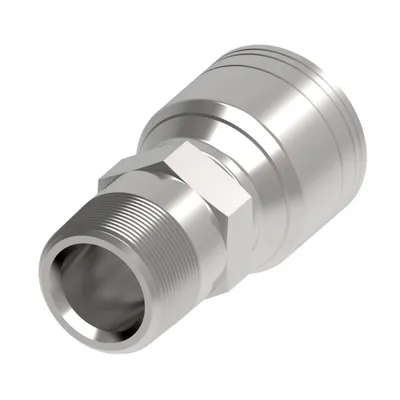

Danfoss

1A12BT10

HOSE FTG, 1A/10, BSPT-M/12, CS, STR

Danfoss

1A12BP12AH

HOSE FTG, 1A/12, BSPJ/12, CS, STR

Danfoss

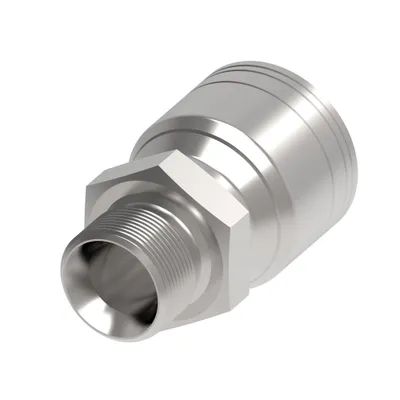

1A12BP12

HOSE FTG, 1A/12, BSPJ/12, CS, STR

Danfoss

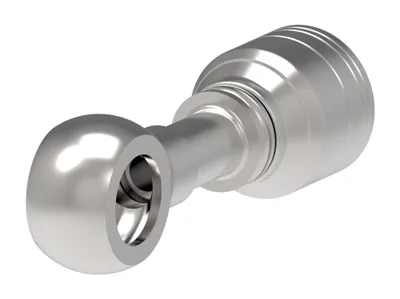

1A12BJ8

HOSE FTG, 1A/08, BANJO/12, CS, STR

Danfoss

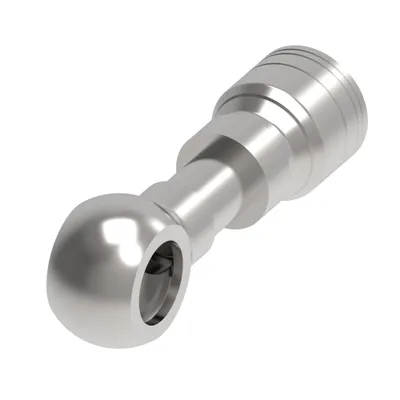

1A12BJ6

HOSE FTG, 1A/06, BANJO/12, CS, STR

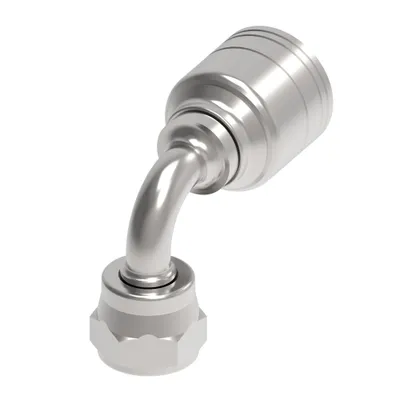

Danfoss

1A12BFB12C

HOSE FTG, 1A/12, BF/12, CS, 90D

Danfoss

1A12BFB12

HOSE FTG, 1A/12, BF/12, CS, 90D

Danfoss

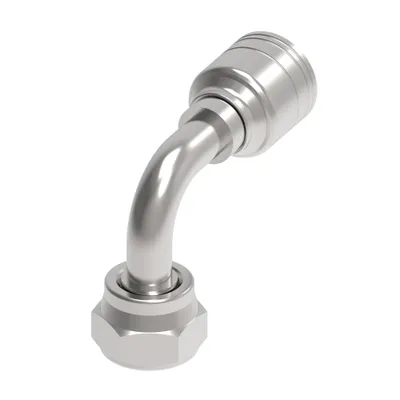

1A12BFB10

HOSE FTG, 1A/10, BF/12, CS, 90D

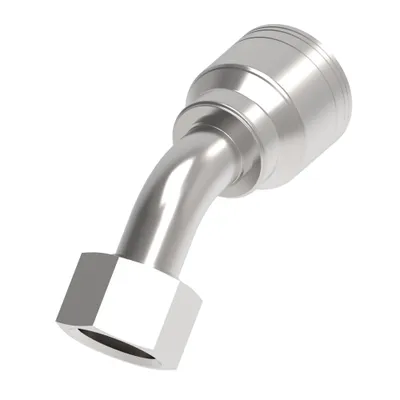

Danfoss

1A12BFA12

HOSE FTG, 1A/12, BF/12, CS, 45D

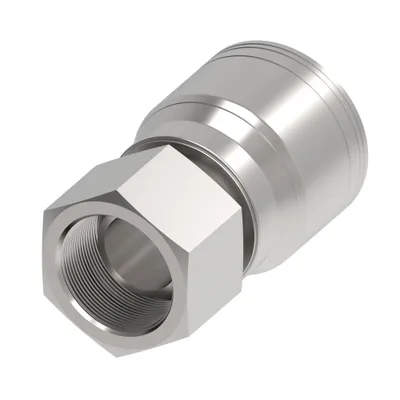

Danfoss

1A12BF8

HOSE FTG, 1A/08, BF/12, CS, STR

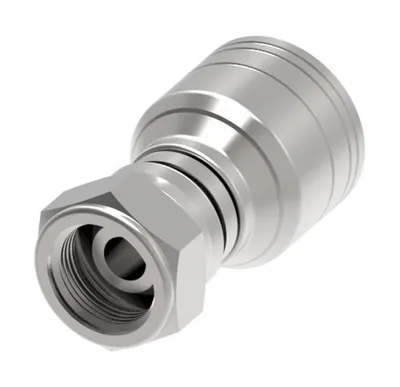

Danfoss

1A12BF12

HOSE FTG, 1A/12, BF/12, CS, STR

Danfoss

1A12BF10

HOSE FTG, 1A/10, BF/12, CS, STR

Danfoss

1A12ADB10

HOSE FTG, 1A/10, AD/12, CS, 90D

Danfoss

1A12AD8

HOSE FTG, 1A/08, AD/12, CS, STR

Danfoss

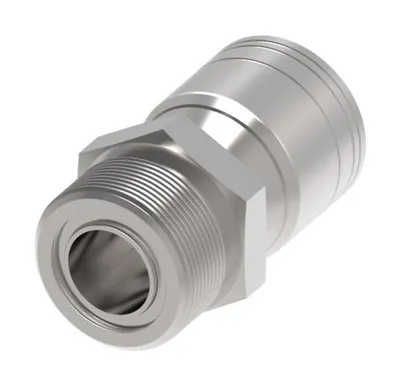

1A10MR8

HOSE FTG, 1A/08, ORS-M/10, CS, STR

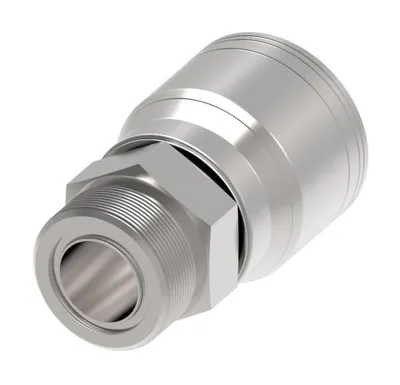

Danfoss

1A10MR10

HOSE FTG, 1A/10, ORS-M/10, CS, STR

Danfoss

1A10MJ8

HOSE FTG, 1A/08, JIC-M/10, CS, STR

Danfoss

1A10MJ10

HOSE FTG, 1A/10, JIC-M/10, CS, STR

Danfoss

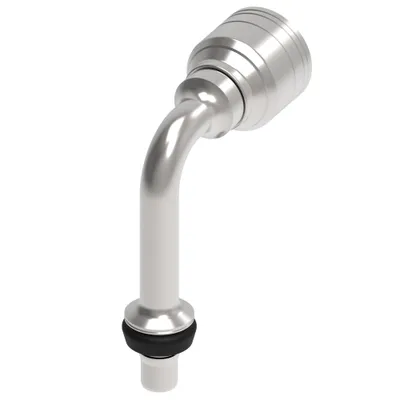

1A10MCC10

HOSE FTG, 1A/10, STC-M/10, CS, 90D

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	A dimension IN	A dimension MM	Hose cut off factor MM	Product length in	Product length mm
1A12DK8AH	2.200	56.000	26.300	2.200	55.880
1A12DK6	1.990	50.500	25.200	1.988	50.500
1A12DK10	2.200	56.000	26.400	2.200	55.880
1A12C	1.338	34.000	—	1.330	33.782
1A12BT12	2.800	71.100	40.900	2.800	71.120
1A12BT10	2.760	70.200	40.800	2.764	70.200
1A12BP12AH	2.480	63.100	32.900	2.484	63.100
1A12BP12	2.480	63.100	32.900	2.480	62.992
1A12BJ8	3.360	85.400	55.700	3.990	101.346
1A12BJ6	3.270	83.200	57.900	3.900	99.060
1A12BFB12C	3.110	79.100	52.000	3.730	94.742
1A12BFB12	3.360	85.400	55.000	3.860	98.044
1A12BFB10	3.660	93.000	63.600	4.291	109.000
1A12BFA12	3.590	91.300	61.100	5.300	134.620
1A12BF8	2.230	56.600	26.900	2.230	56.642
1A12BF12	2.190	55.500	25.300	2.710	68.834
1A12BF10	2.220	56.500	27.100	2.720	69.088
1A12ADB10	2.840	72.200	42.800	3.460	87.884
1A12AD8	2.280	57.800	28.100	2.280	57.912
1A10MR8	2.170	55.200	29.700	2.338	59.390
1A10MR10	2.590	65.700	40.894	2.590	65.786
1A10MJ8	2.260	57.400	31.900	2.425	61.600
1A10MJ10	2.600	66.000	40.000	2.730	69.350
1A10MCC10	2.950	74.800	48.500	3.560	90.424

Common to all listed parts

Construction Style	Crimp
Product material	Carbon steel
Series	1A/Z Series
