Danfoss 1A10LM5

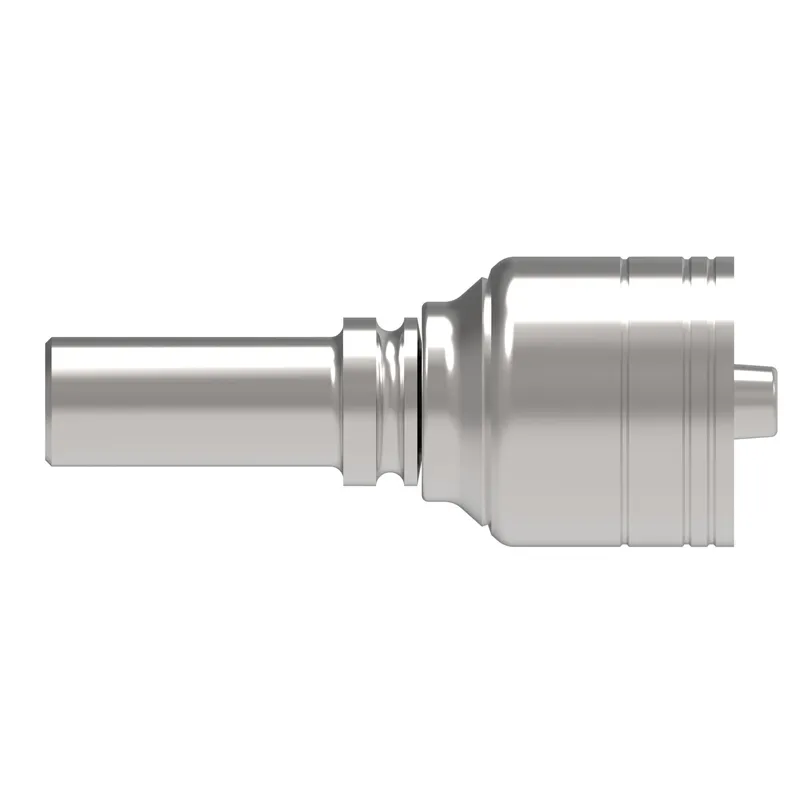

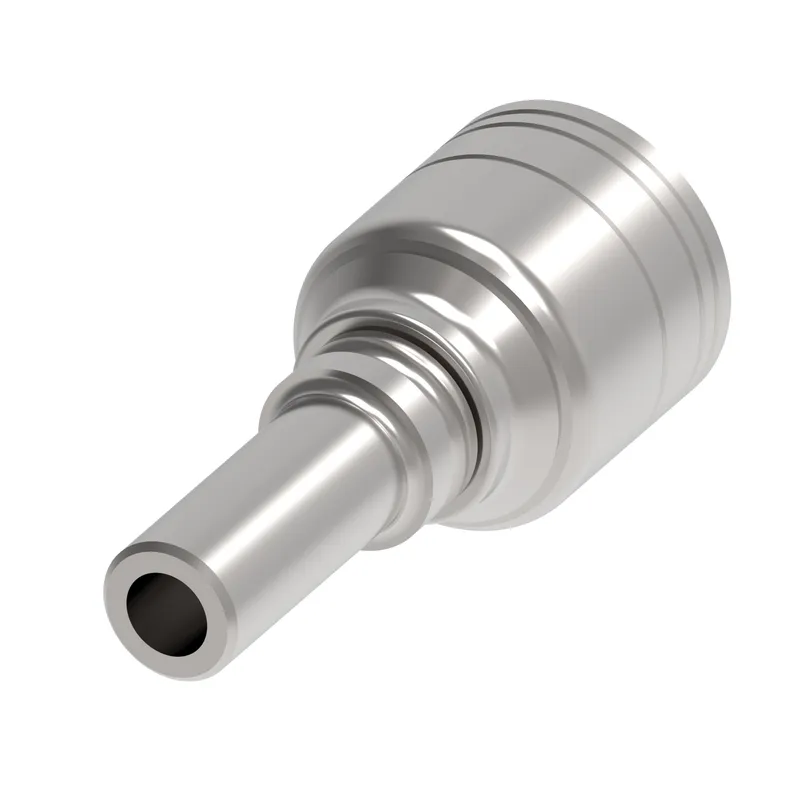

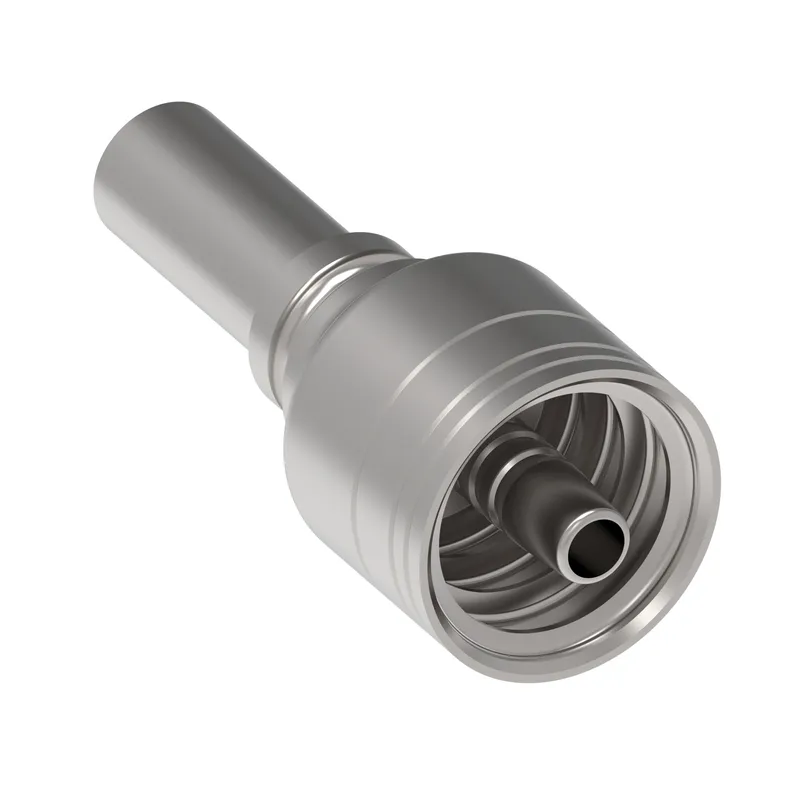

HOSE FTG, 1A/05, STPIPE/10, CS, STR

MPN: 1A10LM5
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A10LM5?

Danfoss HOSE FTG, 1A/05, STPIPE/10, CS, STR, manufacturer part number 1A10LM5. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.250
A dimension MM	57.100
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.310
Compatible hose ID MM	7.900
Construction Style	Crimp
End size 1	-10
End Type 1	Standpipe Metric
Finish plating	Dura-Kote
Hose cut off factor IN	1.310
Hose cut off factor MM	33.200
Hose size	-5
Inside diameter IN	0.210
Inside diameter MM	5.300
Product height in	0.969
Product height mm	24.600
Product length in	57.100
Product length mm	57.100
Product material	Carbon steel
Product width in	0.969
Product width mm	24.6
Proposition 65	Cancer and Reproductive Harm
Series	1A/Z Series
Thread sealant	No
Working pressure max BAR	400
Working pressure max PSI	5800
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
