Braided hose and fittings Parts

Danfoss

1A10BJ6

HOSE FTG, 1A/06, BANJO/10, CS, STR

Danfoss

1A10BFB8

HOSE FTG, 1A/08, BF/10, CS, 90D

Danfoss

1A10BFB10

HOSE FTG, 1A/10, BF/10, CS, 90D

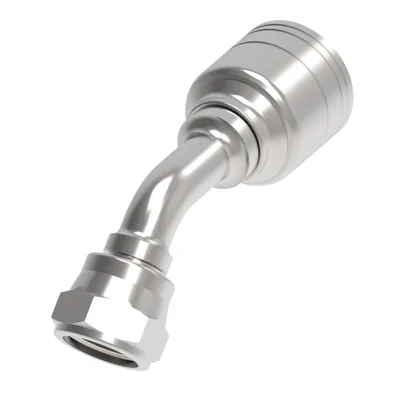

Danfoss

1A10BFA10

HOSE FTG, 1A/10, BF/10, CS, 45D

Danfoss

1A10BF8

HOSE FTG, 1A/08, BF/10, CS, STR

Danfoss

1A10BF10

HOSE FTG, 1A/10, BF/10, CS, STR

Danfoss

19611-08-08Z

HOSE NIPPLE, 2P/08, BSPJ/08, CS, STR

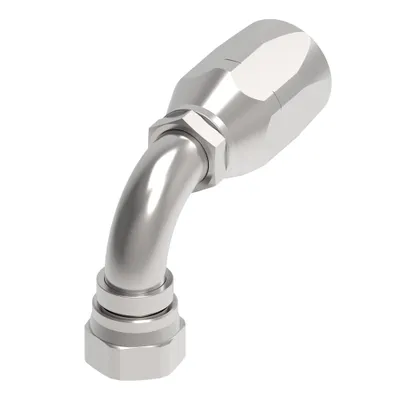

Danfoss

190264-16S

HOSE FTG, 5R/16, JIC-F/16, CS, 90D

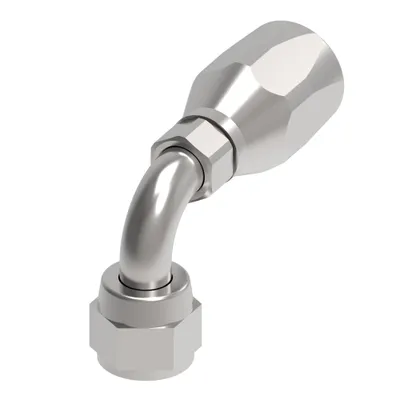

Danfoss

190264-10-8S

HOSE FTG, 5R/08, JIC-F/10, CS, 90D

Danfoss

18611-22-08Z

HOSE NIPPLE ASSY,2P/08,KSF-M/22,CS,STR

Danfoss

18611-16-06Z

HOSE NIPPLE ASSY,2P/06,KSF-M/16,CS,STR

Danfoss

18611-14-04Z

HOSE NIPPLE ASSY,2P/04,KSF-M/14,CS,STR

Danfoss

185264-8S

HOSE INSERT ASSY,2R/08,JIC-F/08,CS,90D

Danfoss

185264-6S

HOSE INSERT ASSY,2R/06,JIC-F/06,CS,90D

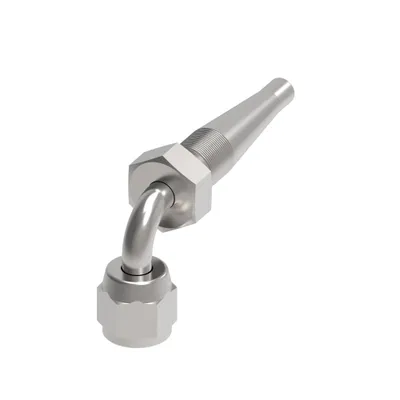

Danfoss

185264-4S

HOSE INSERT ASSY,2R/04,JIC-F/04,CS,90D

Danfoss

185264-10-8S

HOSE INSERT ASSY,2R/08,JIC-F/10,CS,90D

Danfoss

17811-12-12Z

HOSE NIPPLE ASSY,2P/12,45D-M/12,CS,STR

Danfoss

17811-06-06Z

HOSE NIPPLE ASSY,2P/06,45D-M/06,CS,STR

Danfoss

17811-06-05Z

HOSE NIPPLE ASSY,2P/05,45D-M/06,CS,STR

Danfoss

16711Y-16-16Z

HOSE NIPPLE ASSY,1P/16,JIC-M/16,CS,STR

Danfoss

16711Y-12-12Z

HOSE NIPPLE ASSY,1P/12,JIC-M/12,CS,STR

Danfoss

16711Y-12-12CNZ

HOSE NIPPLE ASSY,1P/12,JIC-M/12,CS,STR

Danfoss

16711Y-10-10CNZ

HOSE NIPPLE ASSY,1P/10,JIC-M/10,CS,STR

Danfoss

16711Y-08-08CNZ

HOSE NIPPLE ASSY,1P/08,JIC-M/08,CS,STR

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	A dimension IN	A dimension MM	Product height in	Product height mm	Product length in
1A10BJ6	3.020	76.900	1.100	27.940	3.570
1A10BFB8	3.570	90.700	3.320	84.328	4.100
1A10BFB10	3.570	90.600	3.400	86.360	4.100
1A10BFA10	3.950	100.400	2.660	67.564	4.880
1A10BF8	2.220	56.400	1.180	29.972	2.710
1A10BF10	2.130	54.100	1.390	35.306	2.620
19611-08-08Z	2.618	66.500	1.000	25.400	1.200
190264-16S	4.840	122.900	3.860	98.044	5.590
190264-10-8S	3.150	80.000	2.340	59.436	3.650
18611-22-08Z	2.637	67.000	1.080	27.432	2.637
18611-16-06Z	2.381	60.500	0.770	19.558	2.381
18611-14-04Z	2.263	57.500	0.770	19.558	2.260
185264-8S	3.070	77.970	1.430	36.322	3.070
185264-6S	2.710	68.830	1.160	29.464	3.050
185264-4S	2.350	59.690	1.030	26.162	2.630
185264-10-8S	3.190	81.020	1.610	40.894	3.690
17811-12-12Z	3.260	83.000	1.360	34.544	3.267
17811-06-06Z	2.300	58.500	0.770	19.558	2.303
17811-06-05Z	2.220	56.500	0.770	19.558	2.224
16711Y-16-16Z	3.562	90.500	1.830	46.482	3.562
16711Y-12-12Z	3.090	78.500	1.550	39.370	3.090
16711Y-12-12CNZ	3.090	78.500	1.450	36.830	3.090
16711Y-10-10CNZ	2.716	69.000	1.300	33.020	2.710
16711Y-08-08CNZ	2.500	63.500	1.140	28.956	2.500

Common to all listed parts

Product material

Carbon steel
