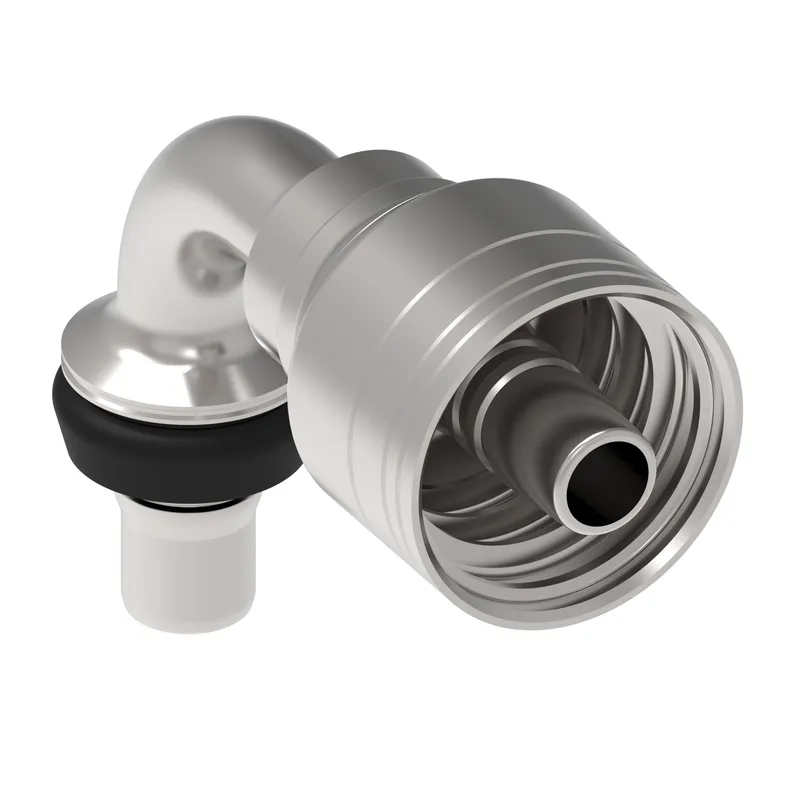

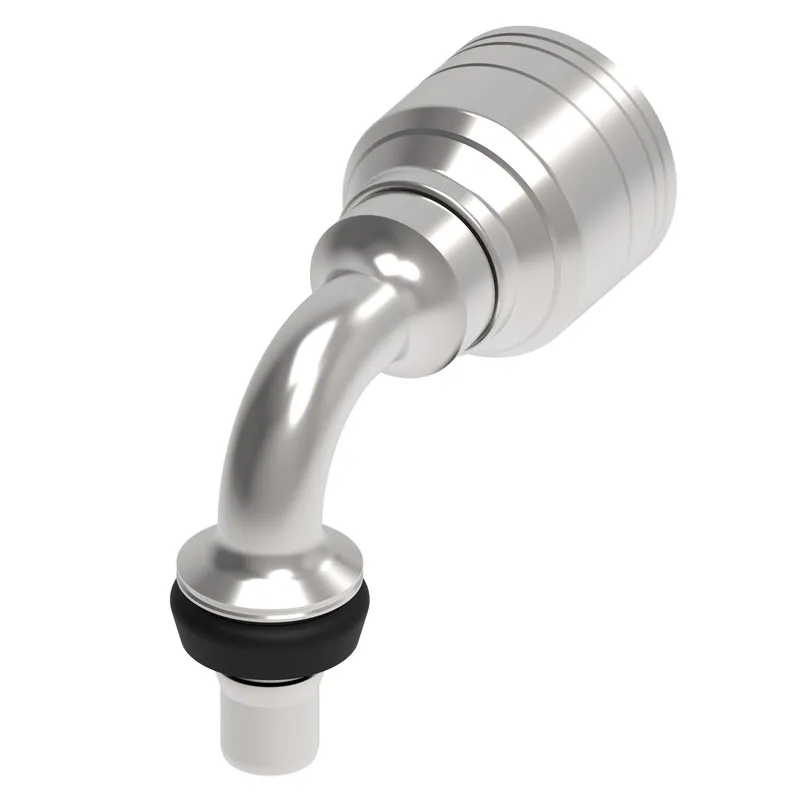

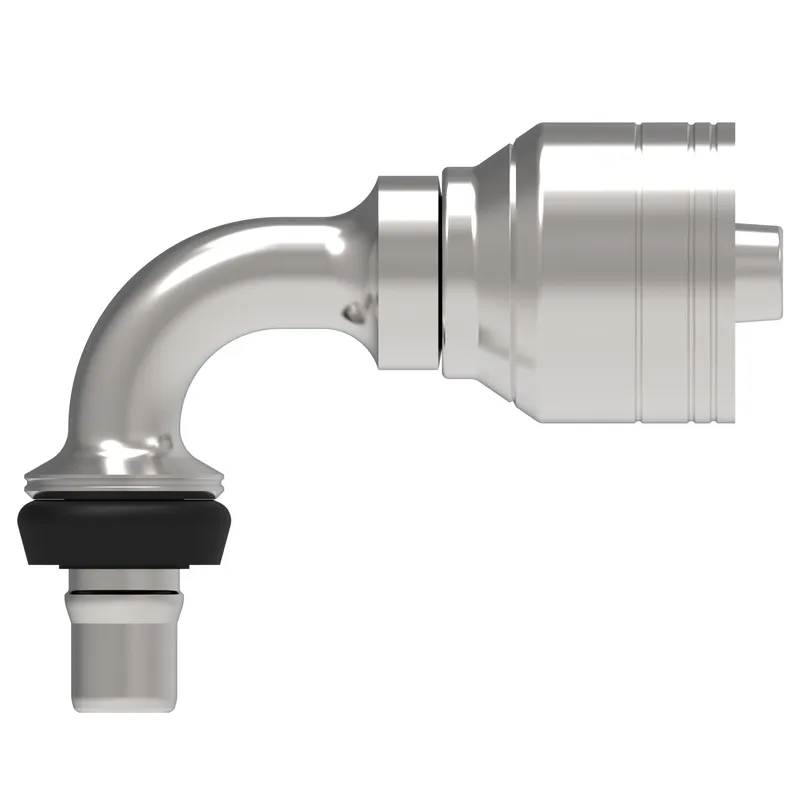

Danfoss 1A10MCB10

HOSE FTG, 1A/10, STC-M/10, CS, 90D

MPN: 1A10MCB10
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A10MCB10?

Danfoss HOSE FTG, 1A/10, STC-M/10, CS, 90D, manufacturer part number 1A10MCB10. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.070
A dimension MM	77.900
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Construction Style	Crimp
Drop dimension IN	2.380
Drop dimension MM	60.40
End size 1	-10
End Type 1	Male STC connector
Finish plating	Zinc plating
Hose cut off factor IN	1.910
Hose cut off factor MM	48.500
Hose size	-10
Inside diameter IN	0.460
Inside diameter MM	11.600
Product height in	3.070
Product height mm	77.978
Product length in	3.570
Product length mm	90.678
Product material	Carbon steel
Product width in	1.390
Product width mm	35.306
Proposition 65	Cancer and Reproductive Harm
Seal material	Hydrogenated Nitrile (HNBR)
Series	1A/Z Series
Thread sealant	No
Working pressure max BAR	275.00
Working pressure max PSI	4000.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
