Braided hose and fittings Parts

Danfoss

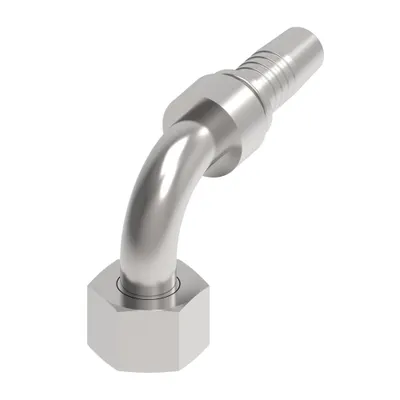

1SA12FRB10

HOSE NIPPLE ASSY,1A/10,ORS-F/12,CS,90D

Danfoss

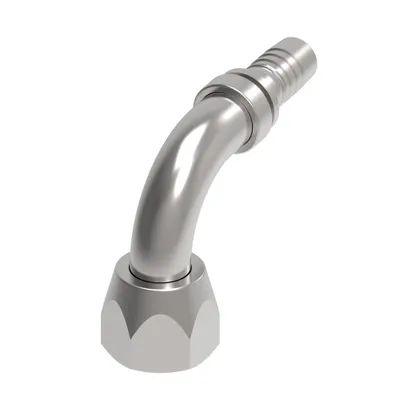

1SA12FJB12

HOSE NIPPLE ASSY,1W/12,JIC-F/12,CS,90D

Danfoss

1SA12FJ8

HOSE NIPPLE ASSY,1W/08,JIC-F/12,CS,STR

Danfoss

1SA12FJ16

HOSE NIPPLE ASSY,1W/16,JIC-F/12,CS,STR

Danfoss

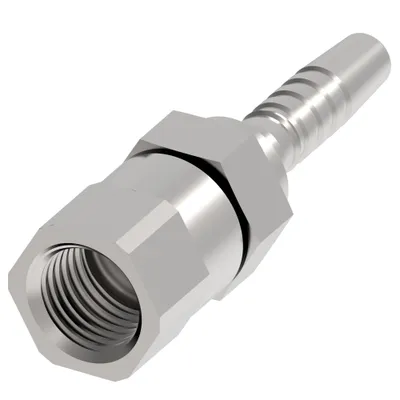

1SA12FJ12

HOSE NIPPLE ASSY,1W/12,JIC-F/12,CS,STR

Danfoss

1SA12FJ10

HOSE NIPPLE ASSY,1W/10,JIC-F/12,CS,STR

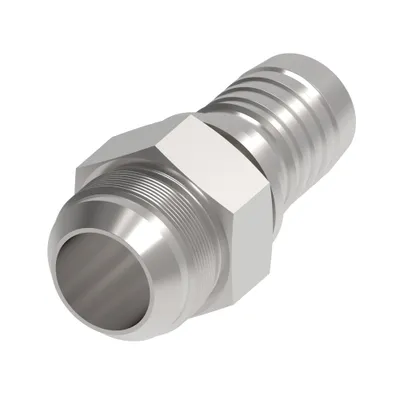

Danfoss

1SA10MJ10

HOSE NIPPLE ASSY,1W/10,JIC-M/10,CS,STR

Danfoss

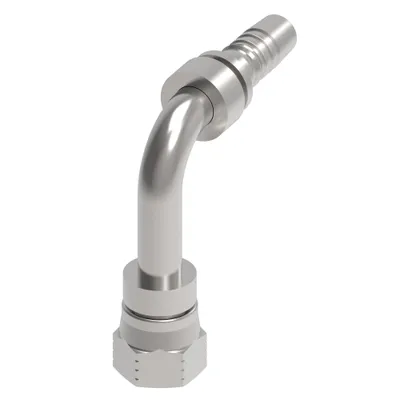

1SA10FJC10

HOSE NIPPLE ASSY,1W/10,JIC-F/10,CS,90D

Danfoss

1SA10FJ8

HOSE NIPPLE ASSY,1W/08,JIC-F/10,CS,STR

Danfoss

1SA10FJ12

HOSE NIPPLE ASSY,1W/12,JIC-F/10,CS,STR

Danfoss

1SA10FJ10

HOSE NIPPLE ASSY,1W/10,JIC-F/10,CS,STR

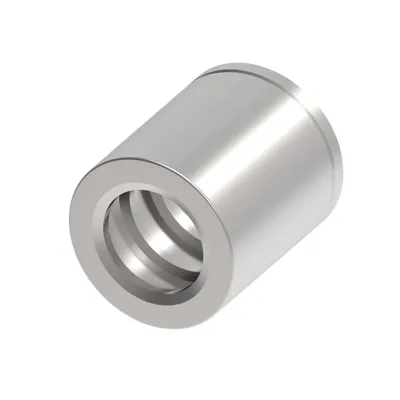

Danfoss

1SA10

SOCKET-PERM, 1W/10, CS

Danfoss

1S8MP8

HOSE NIPPLE ASSY,1A/08,NPTF-M/08,CS,STR

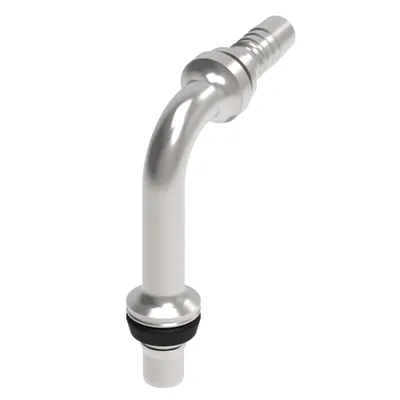

Danfoss

1S8MCC8

HOSE NIPPLE ASSY,1A/08,STC-M/08,CS,90D

Danfoss

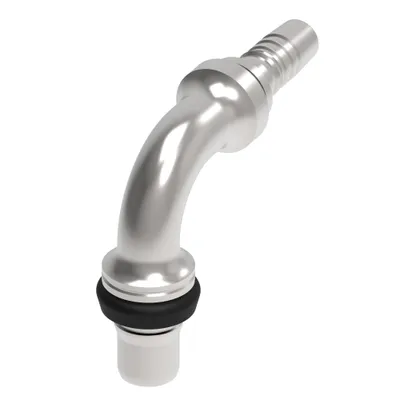

1S8MCB8

HOSE NIPPLE ASSY,1A/08,STC-M/08,CS,90D

Danfoss

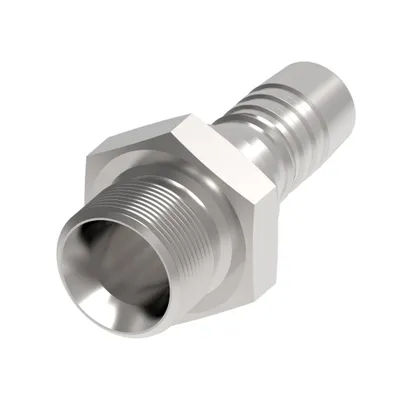

1S8BP8

HOSE NIPPLE ASSY,1A/08,BSPJ/08,CS,STR

Danfoss

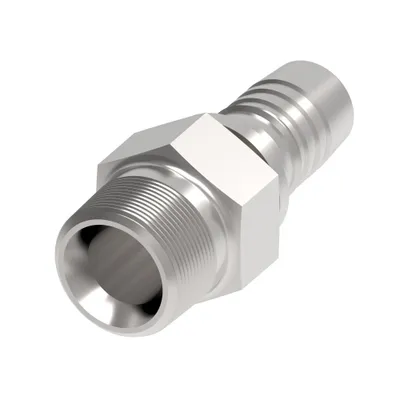

1S6MP6

HOSE NIPPLE ASSY,1A/06,NPT-M/06,CS,STR

Danfoss

1S4BP4

HOSE NIPPLE ASSY, 1A/04, BF/04, CS, STR

Danfoss

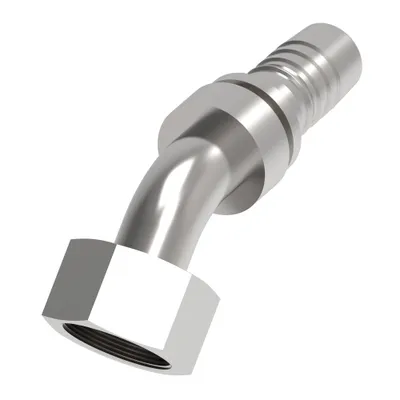

1S40DLA24

HOSE NIPPLE ASSY,1A/24,DKOL/40,CS,45D

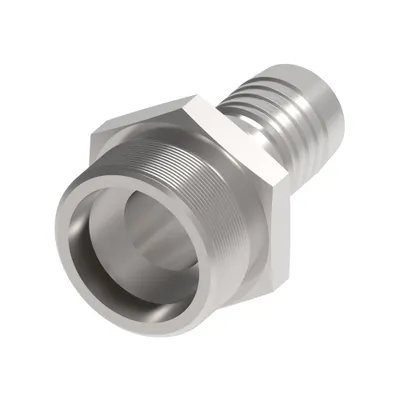

Danfoss

1S32EK20

HOSE NIPPLE, 1A/20, DKH-M/32, CS, STR

Danfoss

1S2MP4

HOSE NIPPLE, 1A/04, NPTF-M/02, CS, STR

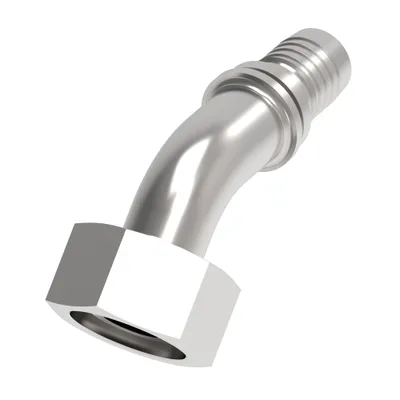

Danfoss

1S25DSA16

HOSE NIPPLE ASSY,1A/16,DKOH-B/12,CS,45D

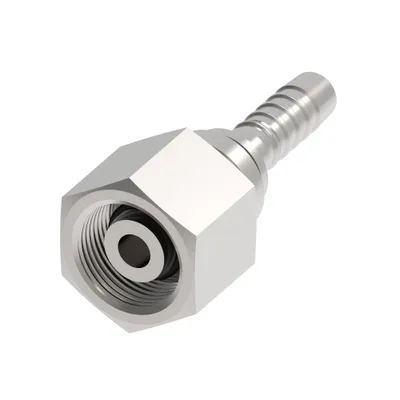

Danfoss

1S25DS16

HOSE NIPPLE ASSY,1A/16,DKOH-B/12,CS,STR

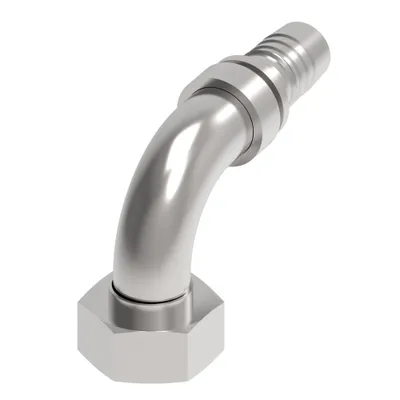

Danfoss

1S25ADB16

HOSE NIPPLE ASSY, 1A/16, AD/12, CS, 90D

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	A dimension IN	A dimension MM	Hose cut off factor MM	Product length in	Product length mm
1SA12FRB10	3.440	87.500	58.166	3.440	87.376
1SA12FJB12	3.362	85.400	55.118	3.360	85.344
1SA12FJ8	2.728	69.300	39.624	2.730	69.342
1SA12FJ16	3.149	80.000	45.720	3.150	80.010
1SA12FJ12	2.840	72.100	41.900	2.840	72.136
1SA12FJ10	2.724	69.200	39.878	2.720	69.088
1SA10MJ10	2.730	69.350	39.878	2.730	69.342
1SA10FJC10	2.700	68.600	39.116	2.700	68.580
1SA10FJ8	2.640	67.100	37.338	2.640	67.056
1SA10FJ12	2.814	71.500	41.300	2.810	71.374
1SA10FJ10	2.770	70.300	40.900	2.770	70.358
1SA10	1.220	31.000	—	0.100	2.540
1S8MP8	2.741	69.630	39.930	2.740	69.596
1S8MCC8	2.830	72.000	42.418	3.200	81.280
1S8MCB8	2.830	72.000	42.300	2.830	71.882
1S8BP8	2.283	58.000	22.000	2.280	57.912
1S6MP6	2.270	57.700	27.300	2.260	57.404
1S4BP4	1.744	44.300	23.400	1.740	44.196
1S40DLA24	7.039	178.870	132.500	8.400	213.360
1S32EK20	3.465	88.000	44.000	3.460	87.884
1S2MP4	1.840	46.730	10.030	1.840	46.736
1S25DSA16	4.780	121.400	87.000	5.920	150.368
1S25DS16	3.090	78.500	36.576	3.090	78.486
1S25ADB16	4.311	109.500	75.100	5.350	135.890

Common to all listed parts

Construction Style	Crimp
Product material	Carbon steel
