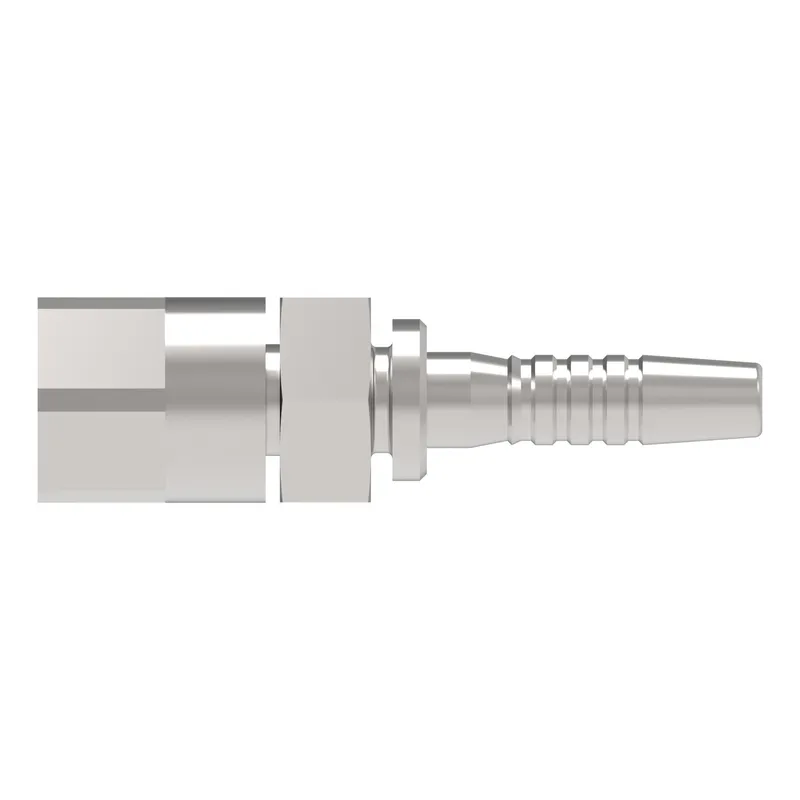

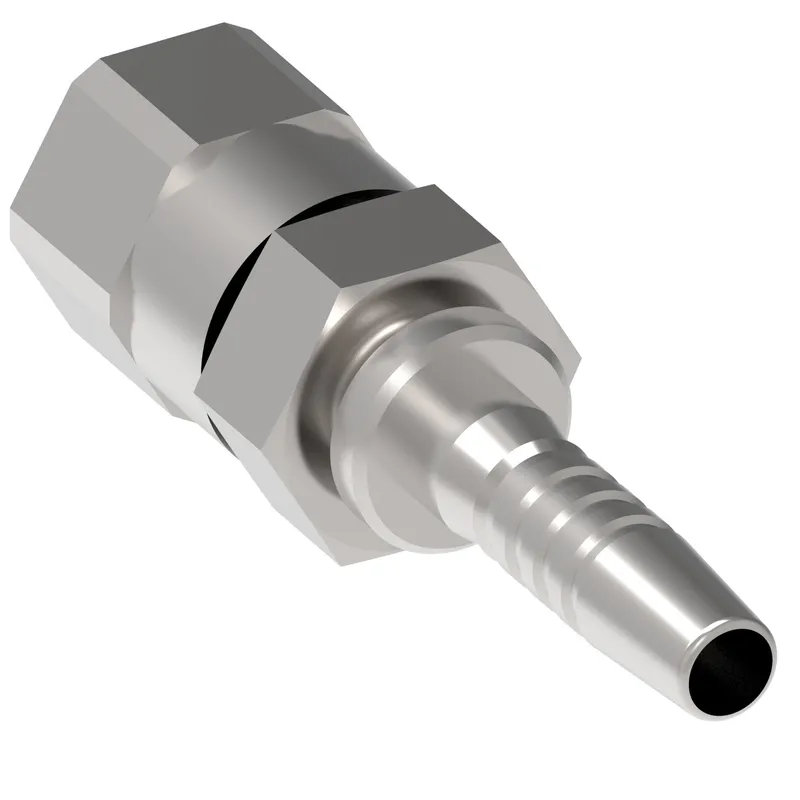

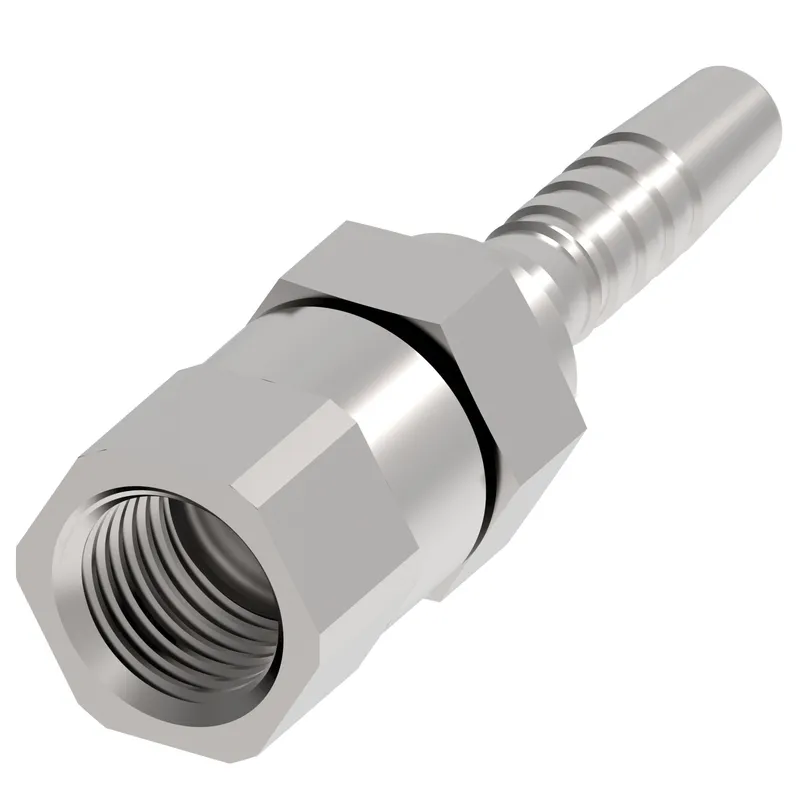

Danfoss 1SA10FJ10

HOSE NIPPLE ASSY,1W/10,JIC-F/10,CS,STR

MPN: 1SA10FJ10
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1SA10FJ10?

Danfoss HOSE NIPPLE ASSY,1W/10,JIC-F/10,CS,STR, manufacturer part number 1SA10FJ10. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146133236
A dimension IN	2.770
A dimension MM	70.300
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Construction Style	Crimp
End connection torque	57-62 lb-ft(77-85 Nm)
End size 1	-10
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.000
Hex size 1 MM	25.000
Hex size 2 IN	0.938
Hex size 2 MM	24.000
Hose cut off factor IN	1.610
Hose cut off factor MM	40.900
Hose size	-10
Inside diameter IN	0.500
Inside diameter MM	12.800
Product height in	1.000
Product height mm	25.400
Product length in	2.770
Product length mm	70.358
Product material	Carbon steel
Product width in	1.000
Product width mm	25.4
Series	1SA
Thread size 1	7/8-14 UNF
Working pressure max BAR	350.00
Working pressure max PSI	5100.00
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
