Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | A dimension IN | A dimension MM | Hose cut off factor IN | Hose cut off factor MM | Product height in |
|---|---|---|---|---|---|
| 1GA6MP6 | 2.074 | 52.700 | 1.270 | 32.400 | 0.785 |

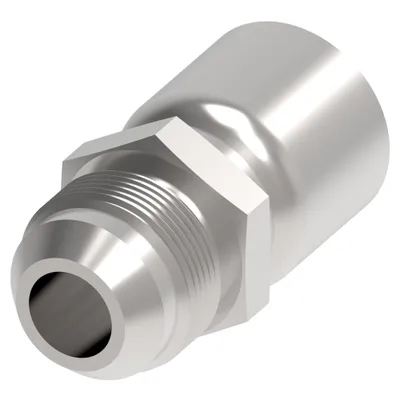

| 1GA6MJ6 | 1.964 | 49.900 | 1.170 | 29.718 | 0.905 |

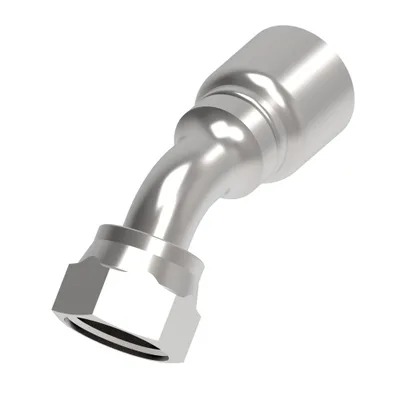

| 1GA6FRA6 | 2.230 | 56.600 | 1.430 | 36.322 | 1.650 |

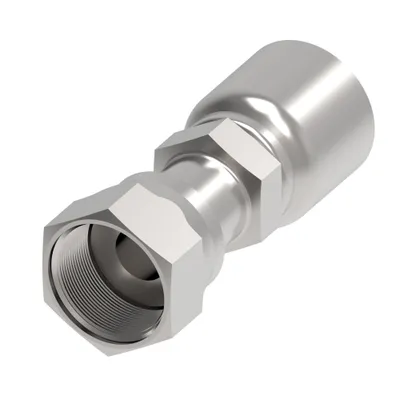

| 1GA6FR6 | 2.030 | 51.700 | 1.240 | 31.400 | 0.938 |

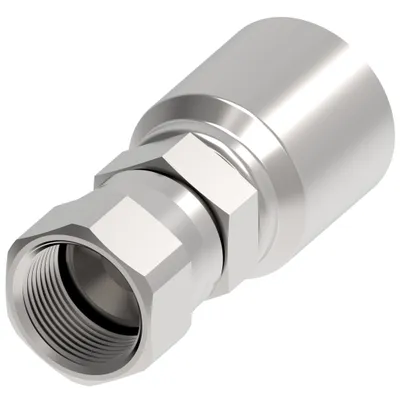

| 1GA6FJ4 | 2.070 | 52.700 | 1.106 | 28.100 | 0.690 |

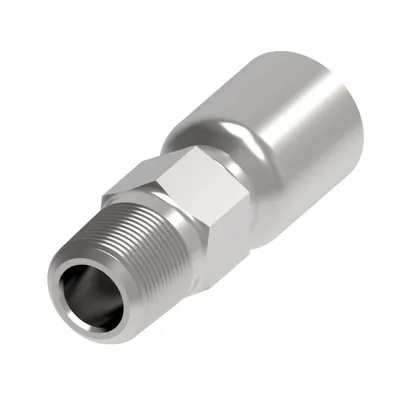

| 1GA4MP4 | 1.890 | 47.900 | 1.140 | 28.900 | 0.680 |

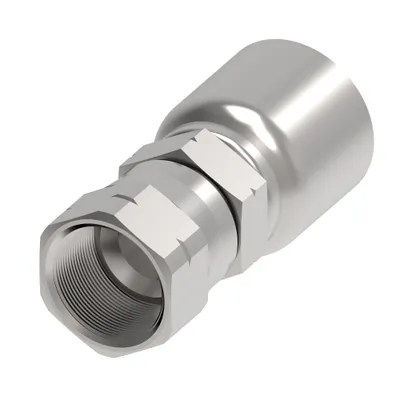

| 1GA4FS4 | 1.822 | 46.300 | 1.070 | 27.178 | 0.680 |

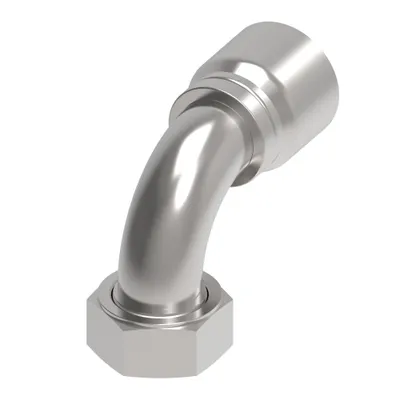

| 1GA24FRB24 | 4.390 | 111.900 | 2.811 | 71.400 | 4.410 |
| 1GA24FJ24 | 3.670 | 93.200 | 2.100 | 52.700 | 2.250 |

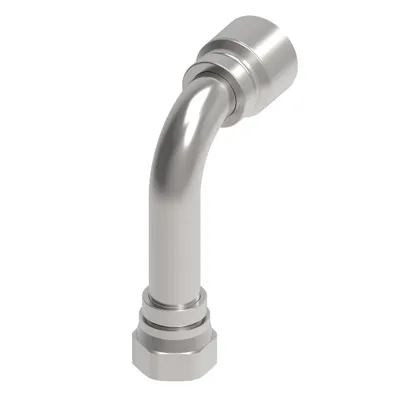

| 1GA20FJC20 | 3.905 | 99.200 | 2.510 | 64.000 | 7.210 |

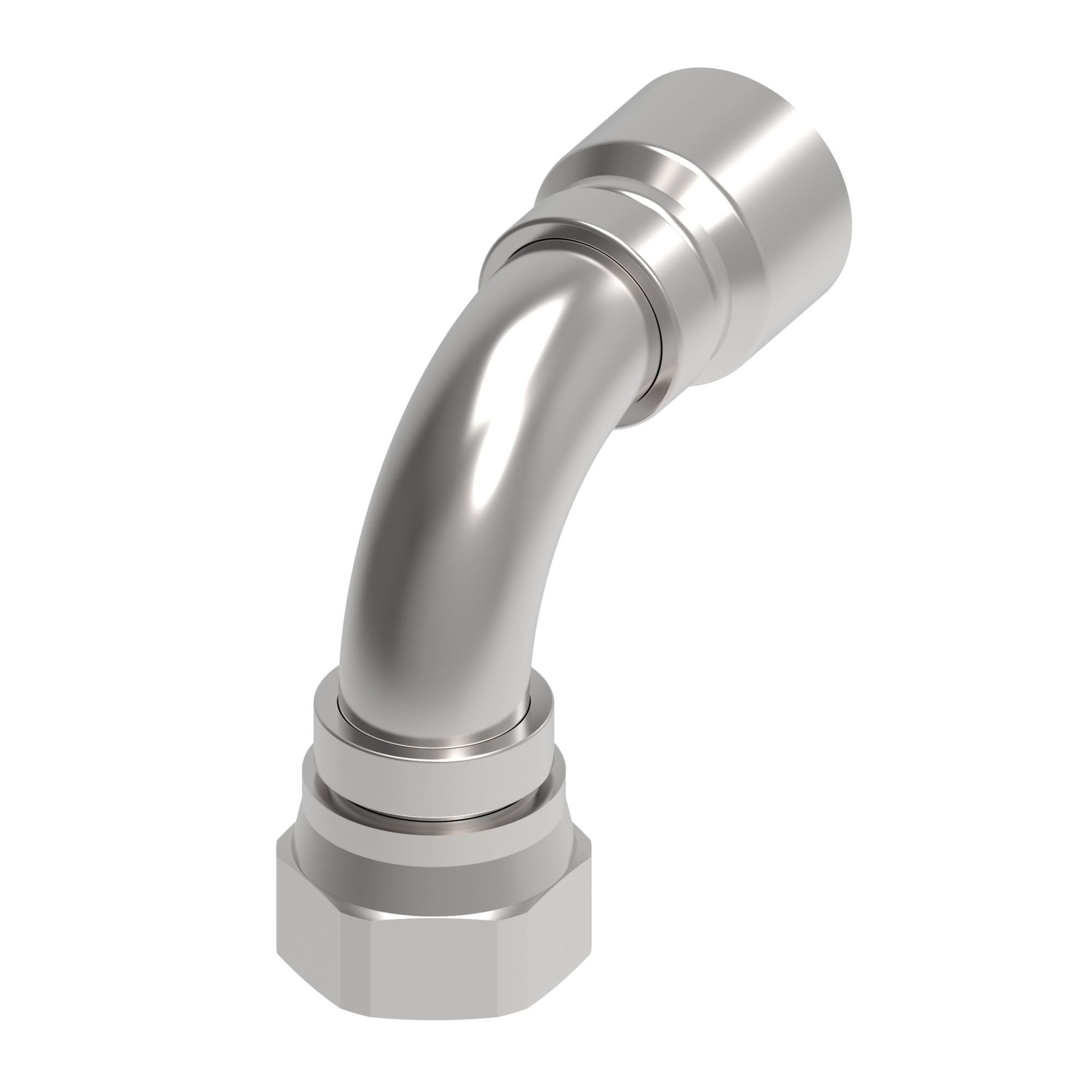

| 1GA20FJB20 | 3.905 | 99.200 | 2.519 | 64.000 | 4.430 |

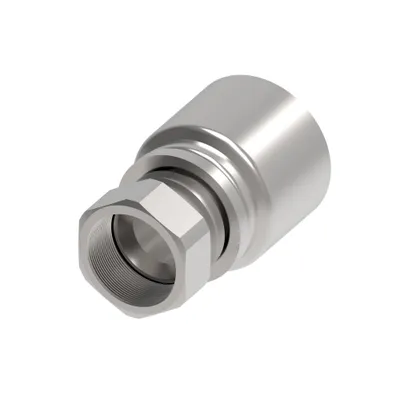

| 1GA20FJ20 | 3.267 | 83.000 | 1.881 | 47.800 | 2.000 |
| 1GA16FJ16 | 3.020 | 76.800 | 1.930 | 49.100 | 1.500 |

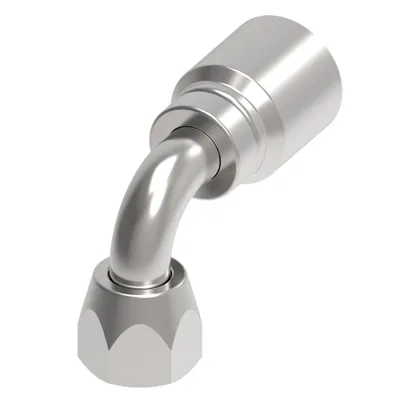

| 1GA12FJB12 | 3.100 | 78.800 | 2.173 | 55.200 | 3.110 |

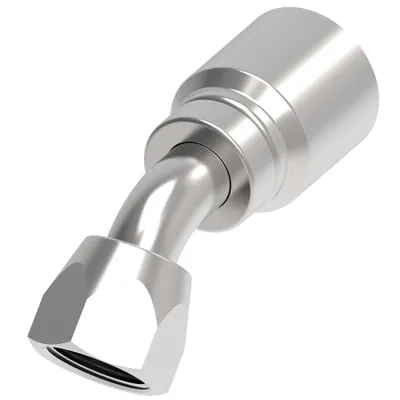

| 1GA12FJA12 | 3.170 | 80.500 | 2.240 | 56.900 | 2.690 |
| 1GA10FR10 | 2.530 | 64.300 | 1.610 | 40.800 | 1.290 |

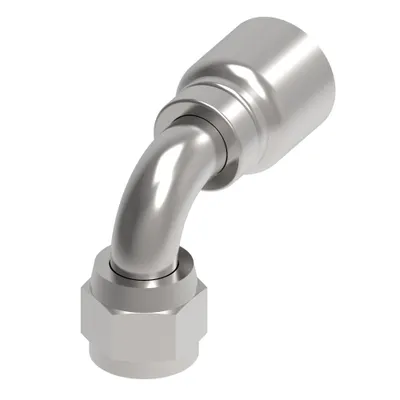

| 1GA10FJB8 | 2.540 | 64.700 | 1.610 | 40.894 | 2.220 |
| 1GA10FJ8 | 2.410 | 61.100 | 1.470 | 37.400 | 1.150 |

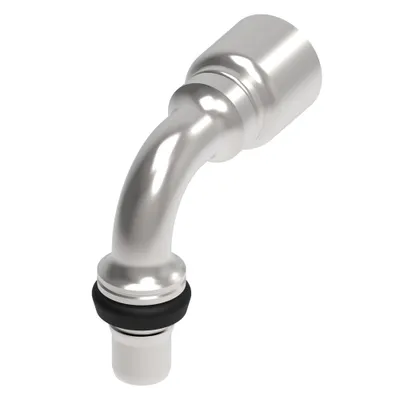

| 1G8MCB8 | 2.830 | 72.000 | 1.420 | 36.068 | 2.620 |

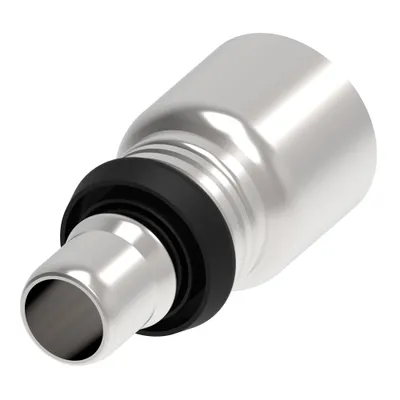

| 1G8MC8 | 2.370 | 60.300 | 1.440 | 36.576 | 1.070 |

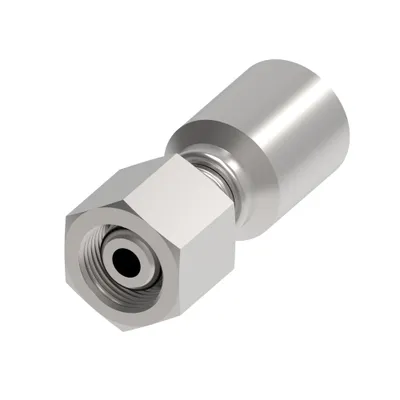

| 1G8GM4 | 1.850 | 47.000 | 0.929 | 23.600 | 0.772 |
| 1G8FS8 | 2.190 | 55.500 | 1.020 | 25.800 | 1.078 |

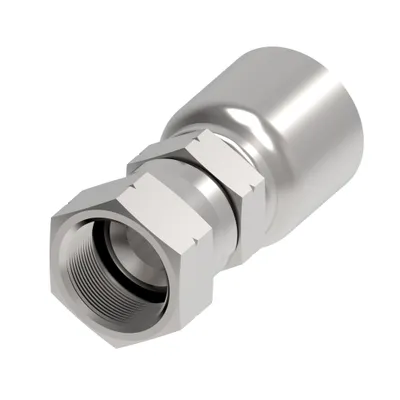

| 1G8FS6 | 1.860 | 47.300 | 0.870 | 22.000 | 1.000 |

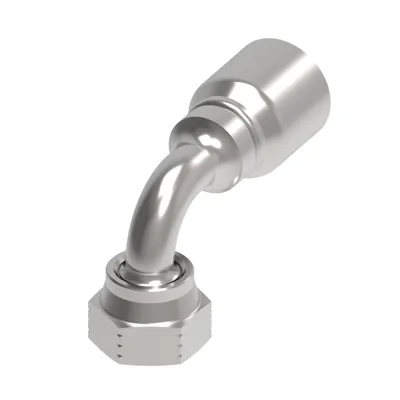

| 1G8FRB8TY | 2.600 | 66.100 | 1.670 | 42.400 | 1.150 |
Common to all listed parts
| Construction Style | Crimp |
| Product material | Carbon steel |
