Danfoss 1SA10FJ12

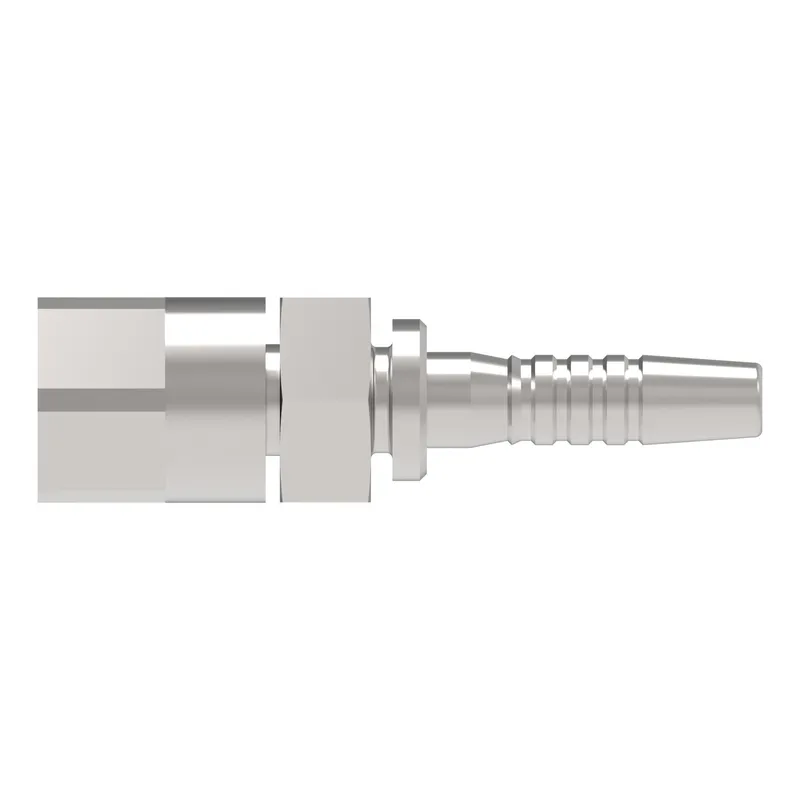

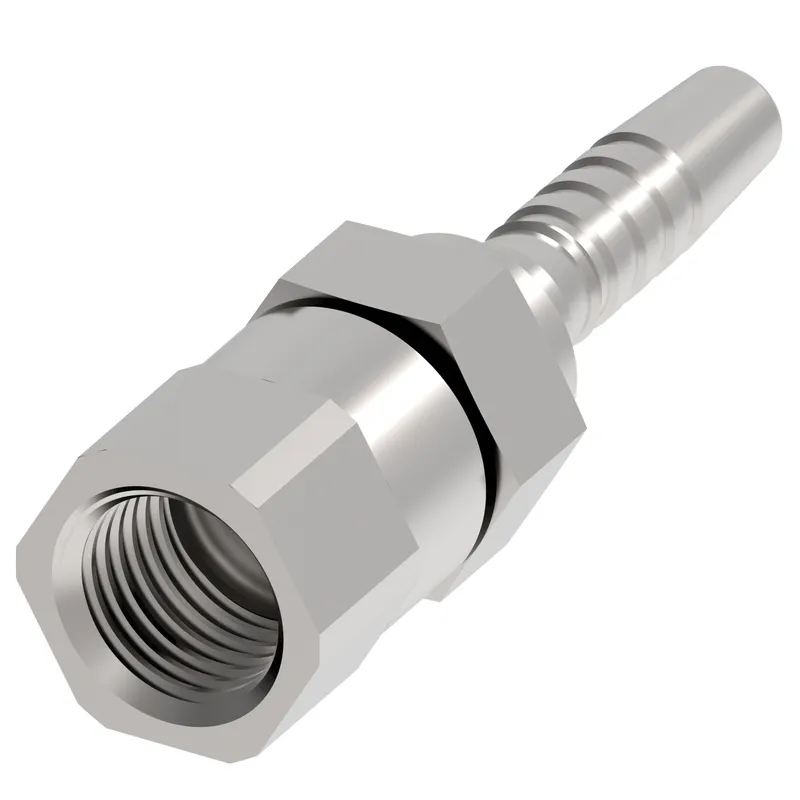

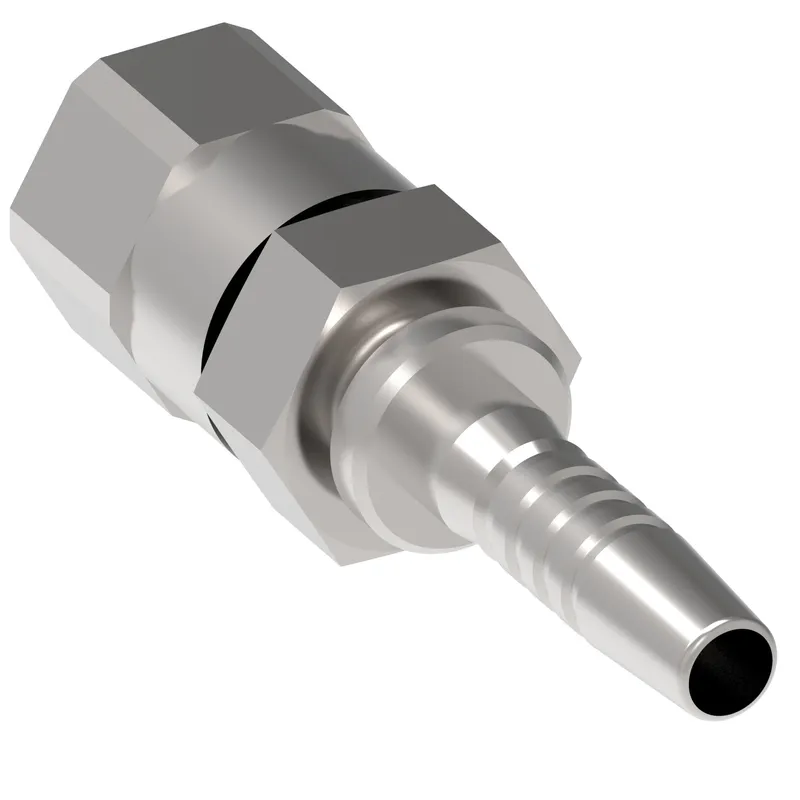

HOSE NIPPLE ASSY,1W/12,JIC-F/10,CS,STR

MPN: 1SA10FJ12
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1SA10FJ12?

Danfoss HOSE NIPPLE ASSY,1W/12,JIC-F/10,CS,STR, manufacturer part number 1SA10FJ12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.814
A dimension MM	71.500
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Construction Style	Crimp
End connection torque	57-62 lb-ft(77-85 Nm)
End size 1	-10
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 2 MM	28.000
Hose cut off factor IN	1.625
Hose cut off factor MM	41.300
Hose size	-12
Inside diameter IN	0.484
Inside diameter MM	12.300
Product height in	1.130
Product height mm	28.702
Product length in	2.810
Product length mm	71.374
Product material	Carbon steel
Product width in	1.130
Product width mm	28.702
Series	1SA
Thread size 1	7/8-14 UNF
Working pressure max BAR	350
Working pressure max PSI	5100
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

1SA10FJ12: frequently asked questions

When can 1SA10FJ12 be shipped?

1SA10FJ12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SA10FJ12 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SA10FJ12 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SA10FJ12, subject to availability and destination.
