Danfoss 1SA12FJ8

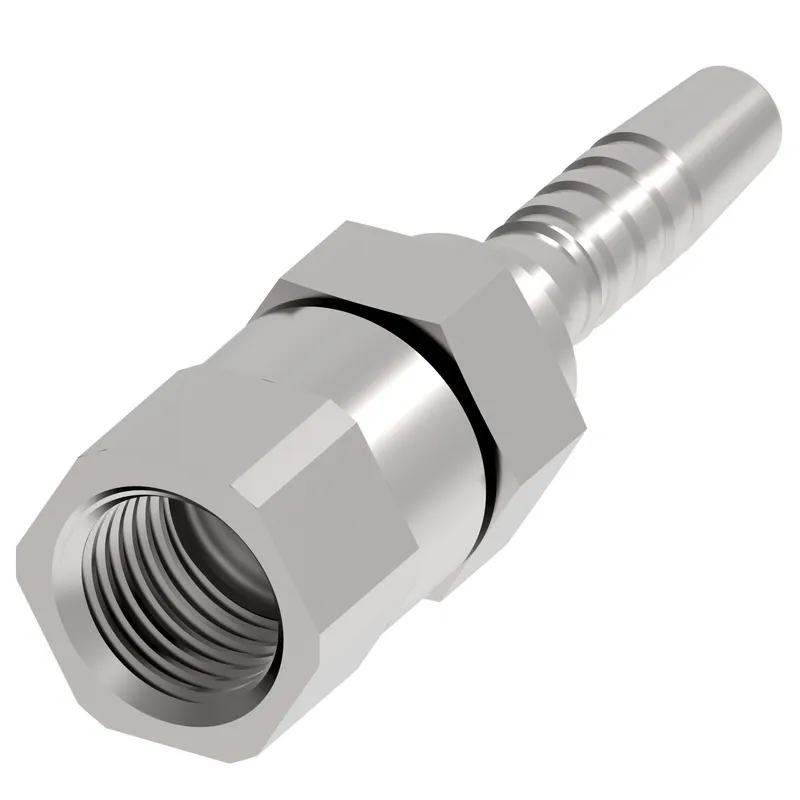

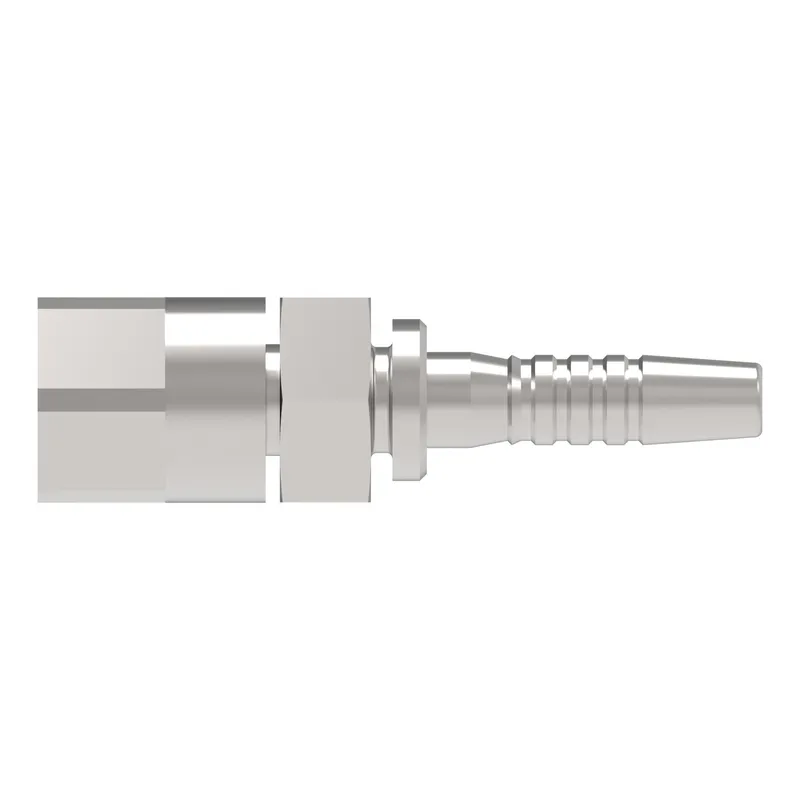

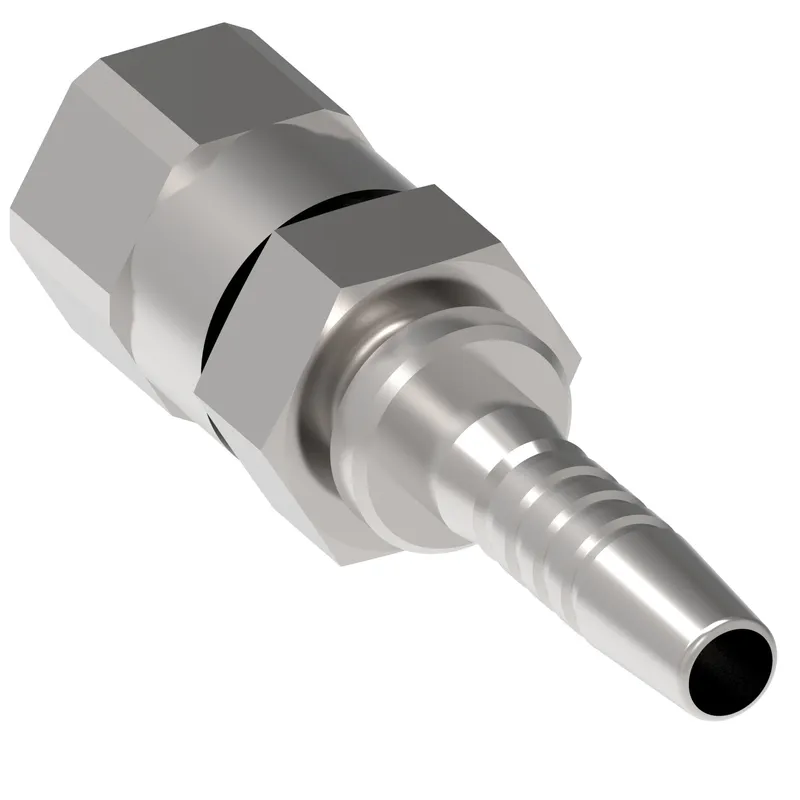

HOSE NIPPLE ASSY,1W/08,JIC-F/12,CS,STR

MPN: 1SA12FJ8
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1SA12FJ8?

Danfoss HOSE NIPPLE ASSY,1W/08,JIC-F/12,CS,STR, manufacturer part number 1SA12FJ8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.728
A dimension MM	69.300
Angle shape	Straight
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
End connection torque	79-87 lb-ft(108-119 Nm)
End size 1	-12
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.250
Hex size 1 MM	31.750
Hex size 2 IN	1.000
Hex size 2 MM	25.400
Hose cut off factor IN	1.560
Hose cut off factor MM	39.624
Hose size	-8
Inside diameter IN	0.380
Inside diameter MM	9.652
Product height in	1.250
Product height mm	31.750
Product length in	2.730
Product length mm	69.342
Product material	Carbon steel
Product width in	1.250
Product width mm	31.75
Series	1SA
Thread sealant	No
Thread size 1	1 1/16-12 UN
Working pressure max BAR	330.00
Working pressure max PSI	4800.00
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

1SA12FJ8: frequently asked questions

When can 1SA12FJ8 be shipped?

1SA12FJ8 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SA12FJ8 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SA12FJ8 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SA12FJ8, subject to availability and destination.
