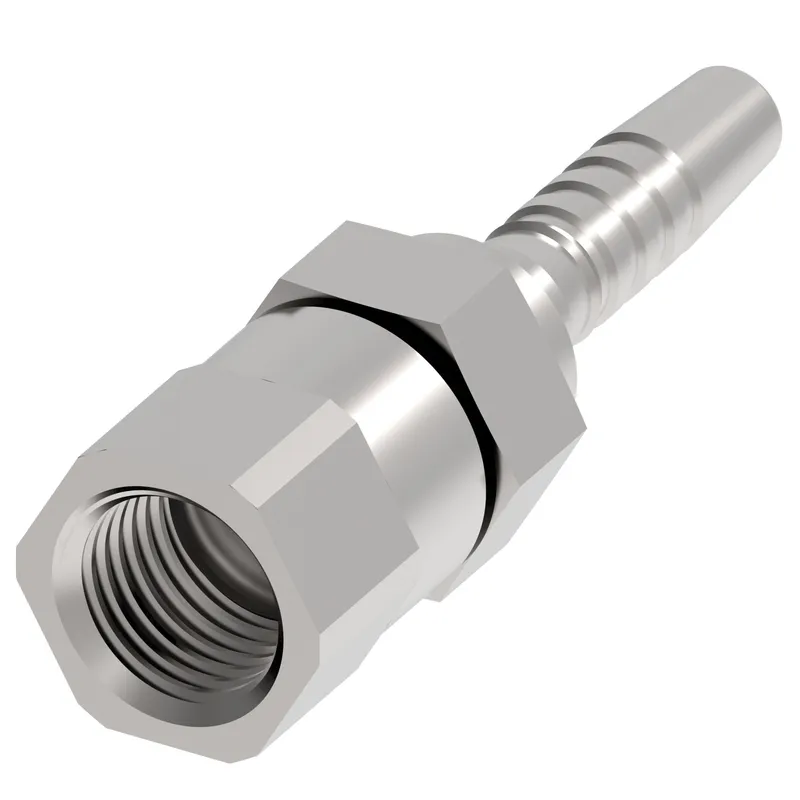

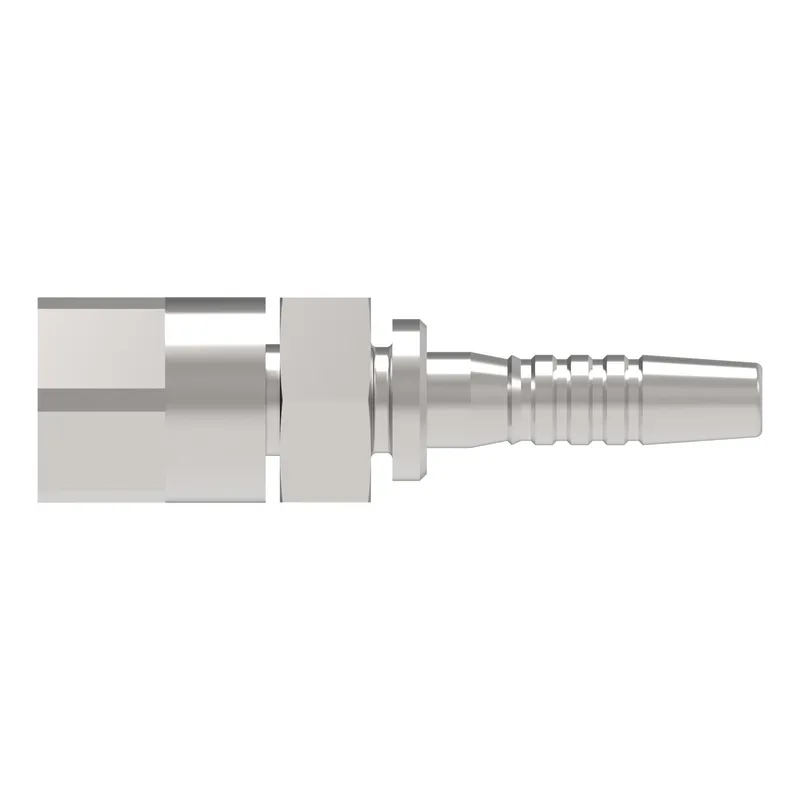

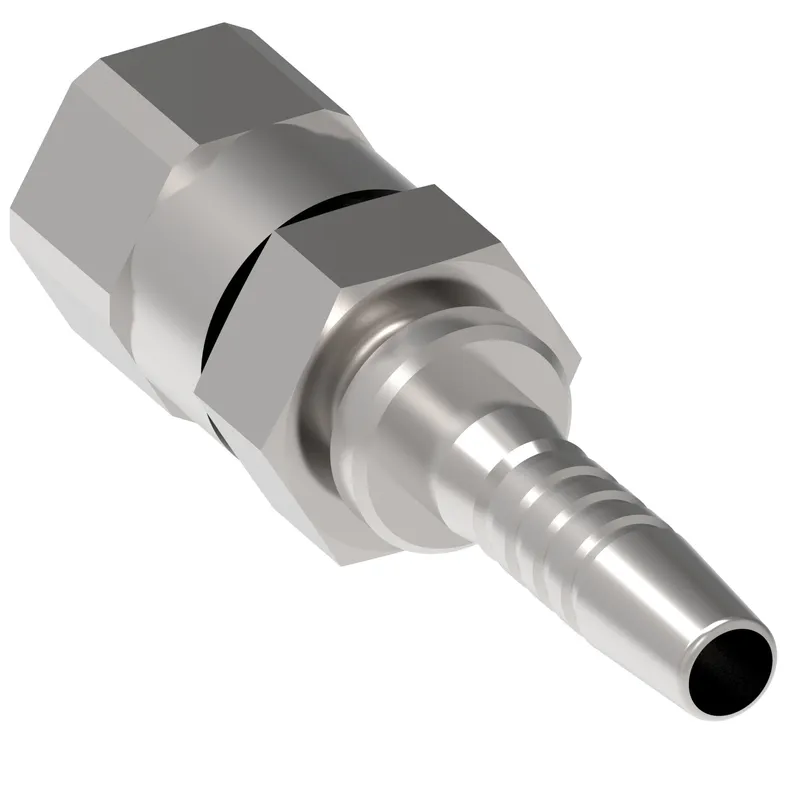

Danfoss 1SA12FJ16

HOSE NIPPLE ASSY,1W/16,JIC-F/12,CS,STR

MPN: 1SA12FJ16
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1SA12FJ16?

Danfoss HOSE NIPPLE ASSY,1W/16,JIC-F/12,CS,STR, manufacturer part number 1SA12FJ16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.149
A dimension MM	80.000
Angle shape	Straight
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Construction Style	Crimp
End connection torque	79-87 lb-ft(108-119 Nm)
End size 1	-12
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.250
Hex size 1 MM	31.750
Hex size 2 IN	1.380
Hex size 2 MM	34.925
Hose cut off factor IN	1.800
Hose cut off factor MM	45.720
Hose size	-16
Inside diameter IN	0.610
Inside diameter MM	15.494
Product height in	1.380
Product height mm	35.052
Product length in	3.150
Product length mm	80.010
Product material	Carbon steel
Product width in	1.380
Product width mm	35.052
Series	1SA
Thread sealant	No
Thread size 1	1 1/16-12 UN
Working pressure max BAR	330.00
Working pressure max PSI	4800.00
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
