Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | A dimension IN | A dimension MM | Product height in | Product length in | Product length mm |
|---|---|---|---|---|---|
| 20111-24-08TZ | 2.106 | 53.500 | 1.360 | 2.100 | 53.340 |
| 20111-22-08Z | 2.165 | 55.000 | 1.220 | 2.220 | 56.388 |
| 20111-20-08Z | 2.145 | 54.500 | 1.227 | 2.360 | 59.944 |
| 20111-18-06Z | 2.027 | 51.500 | 1.080 | 2.130 | 54.102 |
| 20111-16-06Z | 1.968 | 50.000 | 1.000 | 2.150 | 54.610 |
| 20111-16-05Z | 1.889 | 48.000 | 1.000 | 2.070 | 52.578 |
| 20111-16-04Z | 1.870 | 47.500 | 1.000 | 2.050 | 52.070 |
| 20111-14-05Z | — | 90.000 | 0.850 | 2.040 | 51.816 |
| 20111-14-04Z | 1.870 | 47.500 | 0.863 | 2.050 | 52.070 |
| 20111-12-04Z | 1.830 | 46.500 | 0.770 | 1.830 | 46.482 |
| 20011Y-22-05TZ | 2.086 | 53.000 | 1.370 | 2.080 | 52.832 |
| 20011-22-06STZ | 2.165 | 55.000 | 1.220 | 2.165 | 54.991 |
| 20011-22-05STZ | 2.086 | 53.000 | 1.380 | 2.080 | 52.832 |
| 20011-22-04STZ | 2.086 | 53.000 | 1.220 | 2.086 | 52.984 |

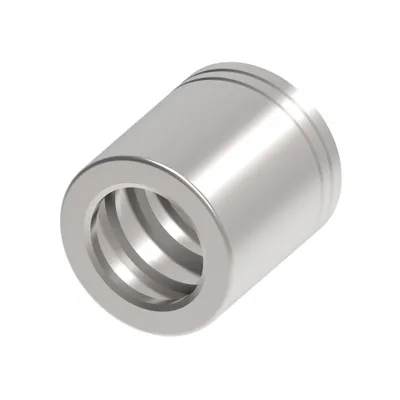

| 1SB8 | 1.161 | 29.500 | 1.150 | 1.160 | 29.464 |
| 1SB6 | 1.004 | 25.500 | 1.000 | 1.000 | 25.400 |
| 1SB24 | 1.925 | 48.900 | 2.480 | 1.920 | 48.768 |
| 1SA8MJ8 | 2.574 | 65.390 | 0.810 | 2.570 | 65.278 |

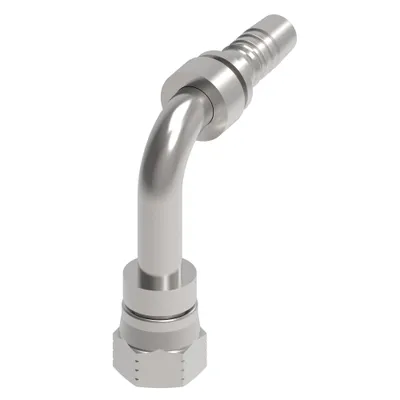

| 1SA8FJC8 | 2.712 | 68.900 | 2.450 | 2.710 | 68.834 |

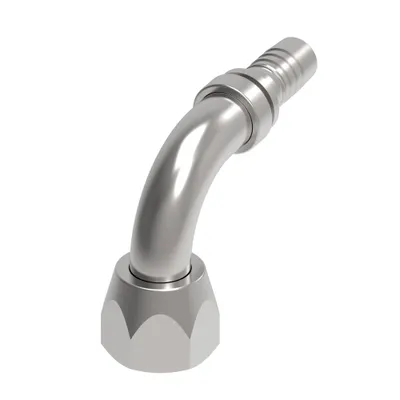

| 1SA8FJB8 | 2.590 | 65.800 | 1.090 | 2.590 | 65.786 |
| 1SA8FJ8 | 2.630 | 66.700 | 0.880 | 2.630 | 66.802 |
| 1SA8FJ6 | 2.310 | 58.600 | 0.880 | 2.310 | 58.674 |

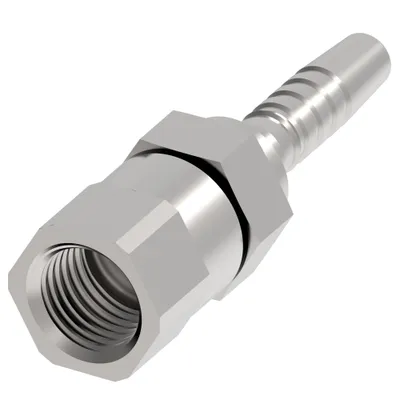

| 1SA8FJ10 | 2.653 | 67.400 | 0.940 | 2.650 | 67.310 |

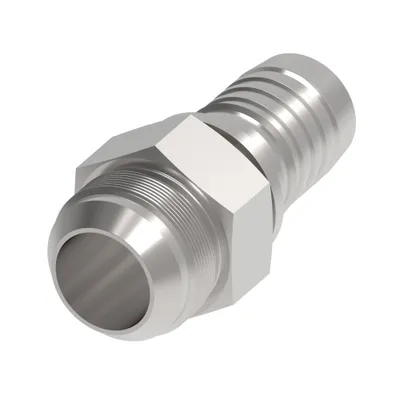

| 1SA6MJ6 | 2.162 | 54.920 | 0.940 | 2.160 | 54.864 |
Common to all listed parts
| Construction Style | Crimp |
| Product material | Carbon steel |
