Danfoss 1S8MCC8

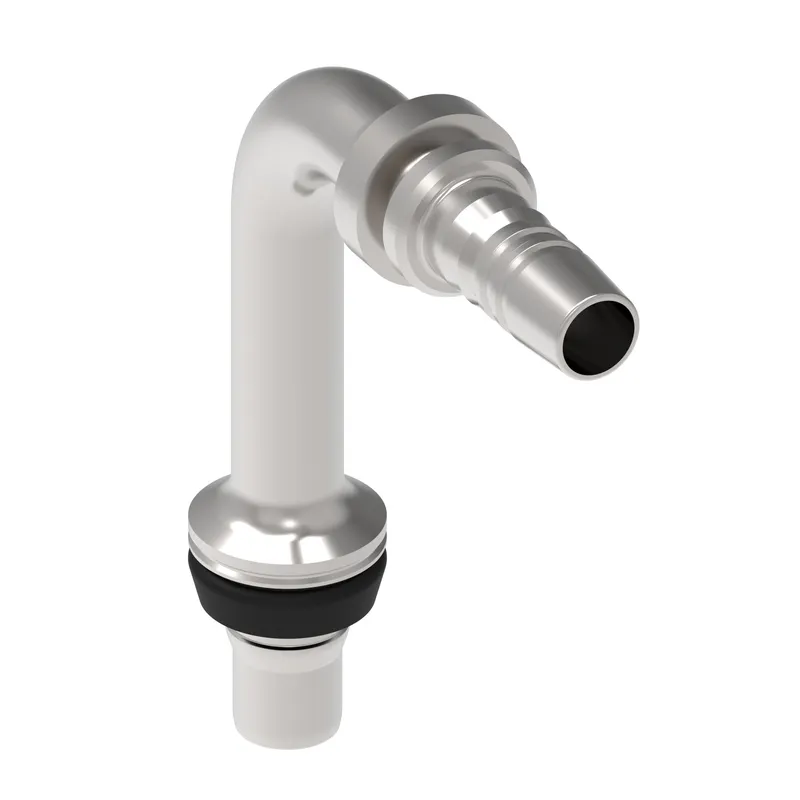

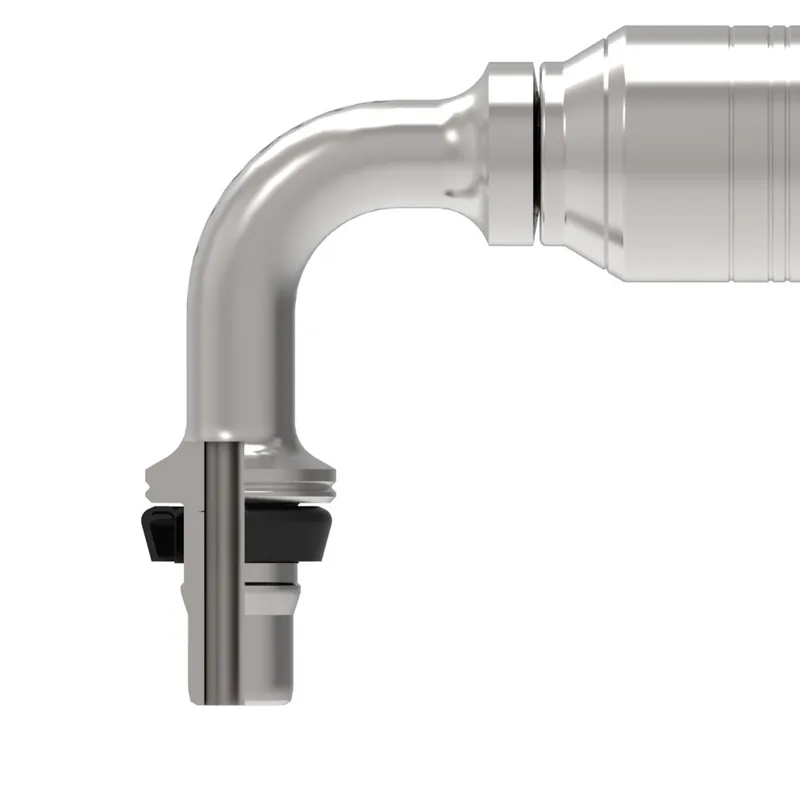

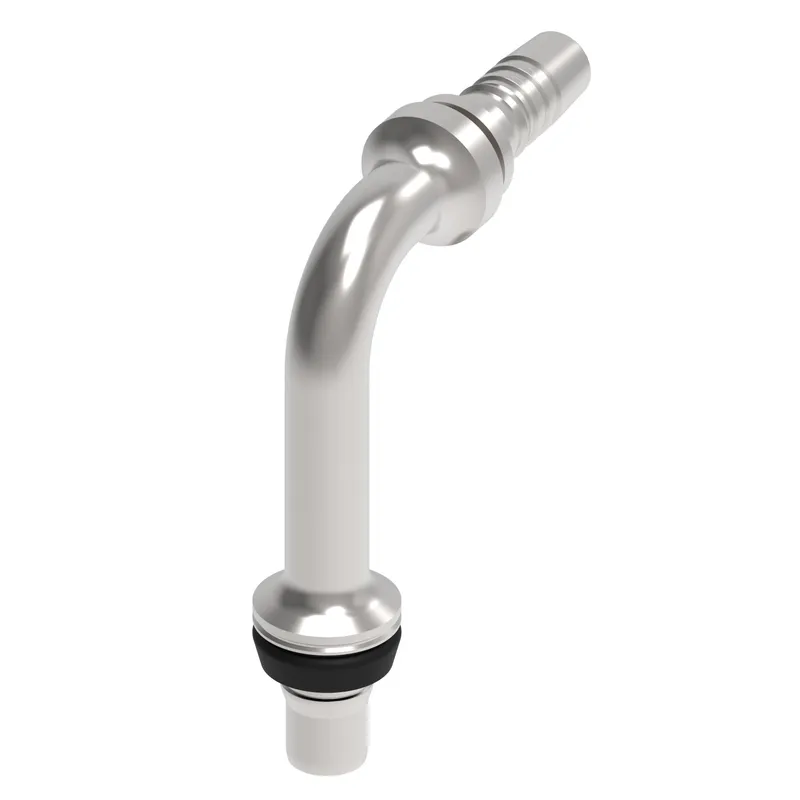

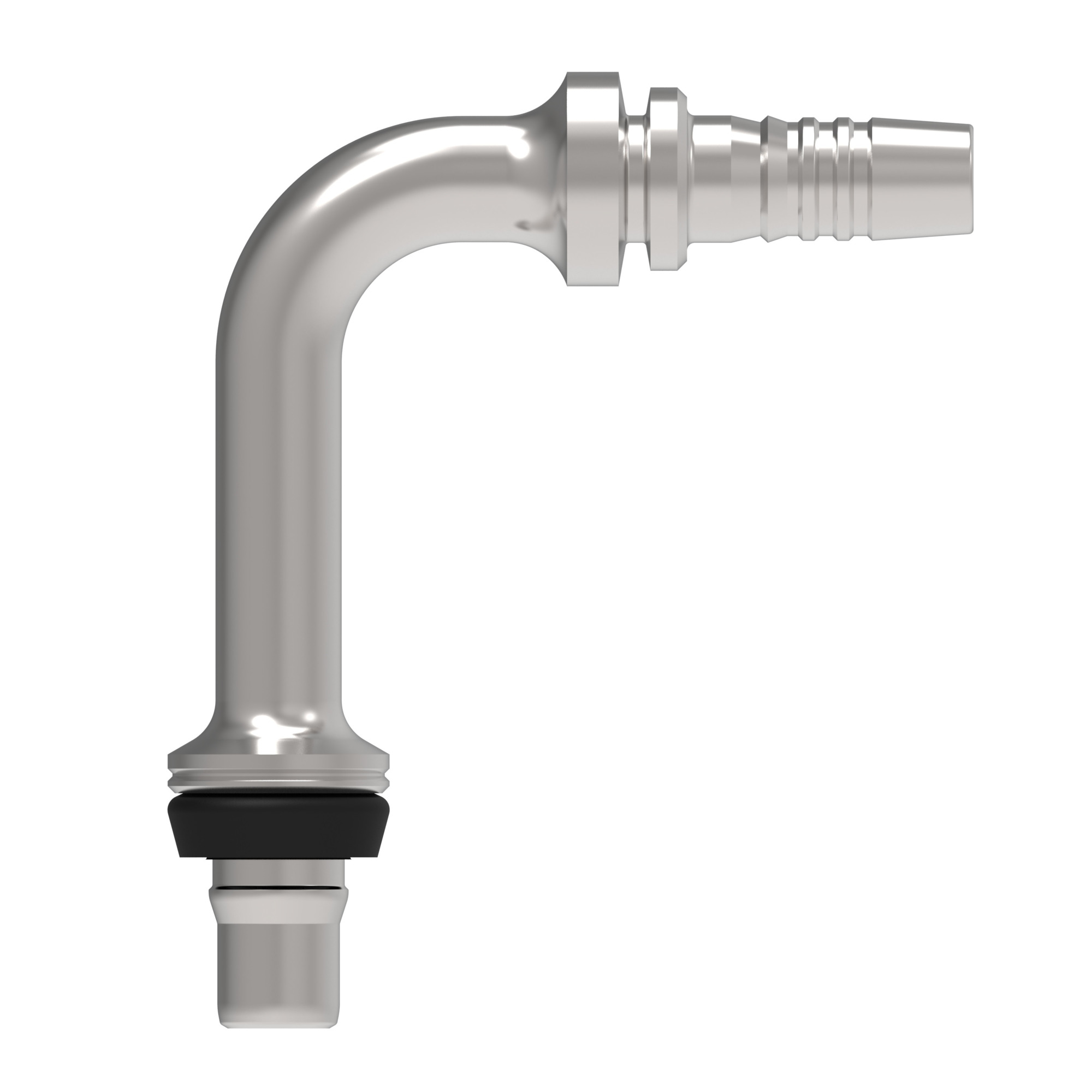

HOSE NIPPLE ASSY,1A/08,STC-M/08,CS,90D

MPN: 1S8MCC8
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1S8MCC8?

Danfoss HOSE NIPPLE ASSY,1A/08,STC-M/08,CS,90D, manufacturer part number 1S8MCC8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.830
A dimension MM	72.000
Angle shape	90 Degree
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Compatible hoses	2781
Construction Style	Crimp
Drop dimension IN	3.460
Drop dimension MM	87.88
End size 1	-8
End Type 1	Male STC connector
Finish plating	Dura-Kote
Hose cut off factor IN	1.670
Hose cut off factor MM	42.418
Hose size	-8
Inside diameter IN	0.340
Inside diameter MM	8.636
Product height in	3.800
Product height mm	96.520
Product length in	3.200
Product length mm	81.280
Product material	Carbon steel
Product width in	0.880
Product width mm	22.352
Seal material	Hydrogenated Nitrile (HNBR)
Series	1A/Z Series
Thread sealant	No
Working pressure max BAR	293
Working pressure max PSI	4250
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
