Danfoss 1SA10

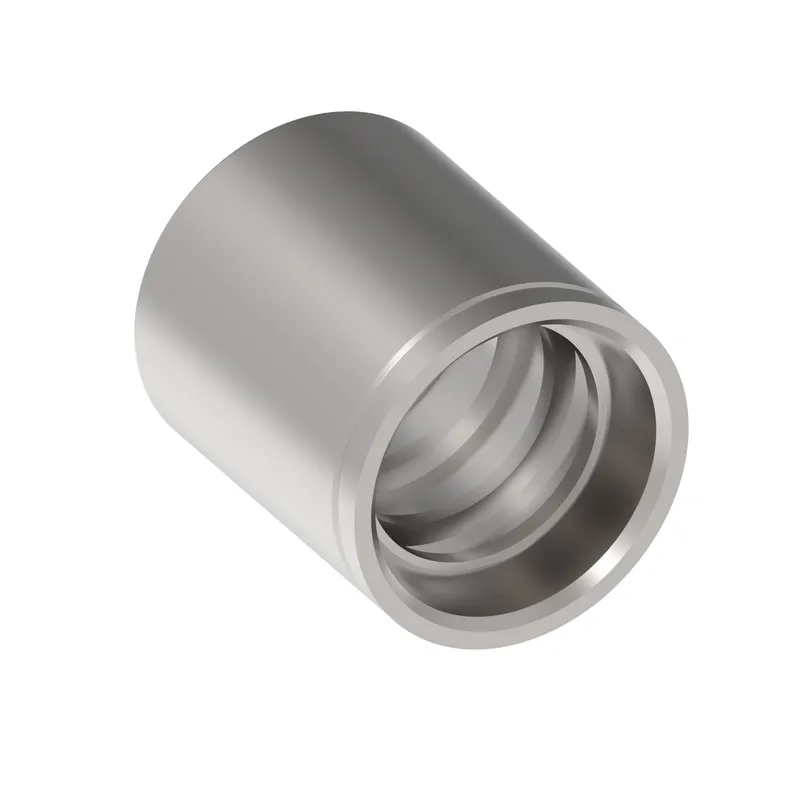

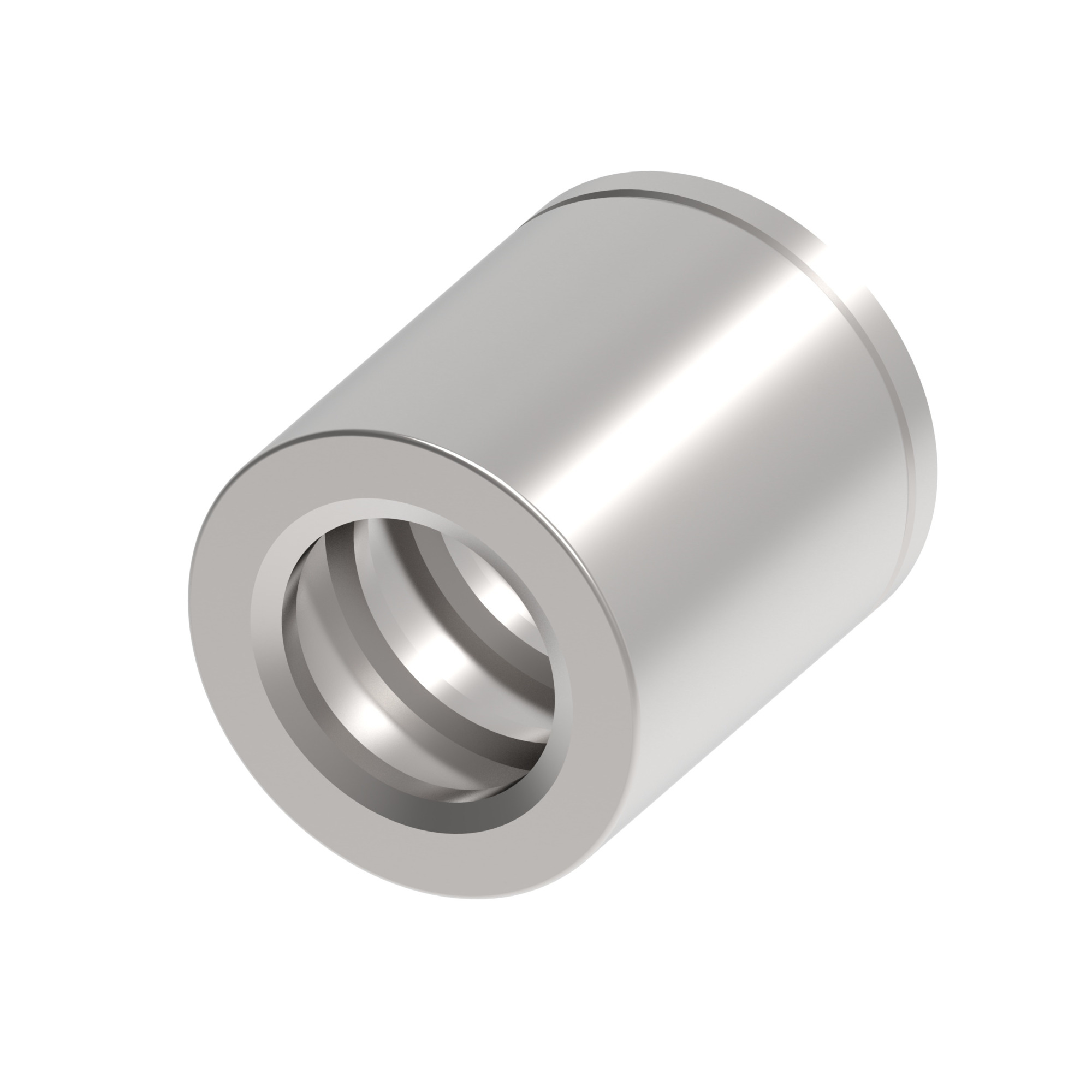

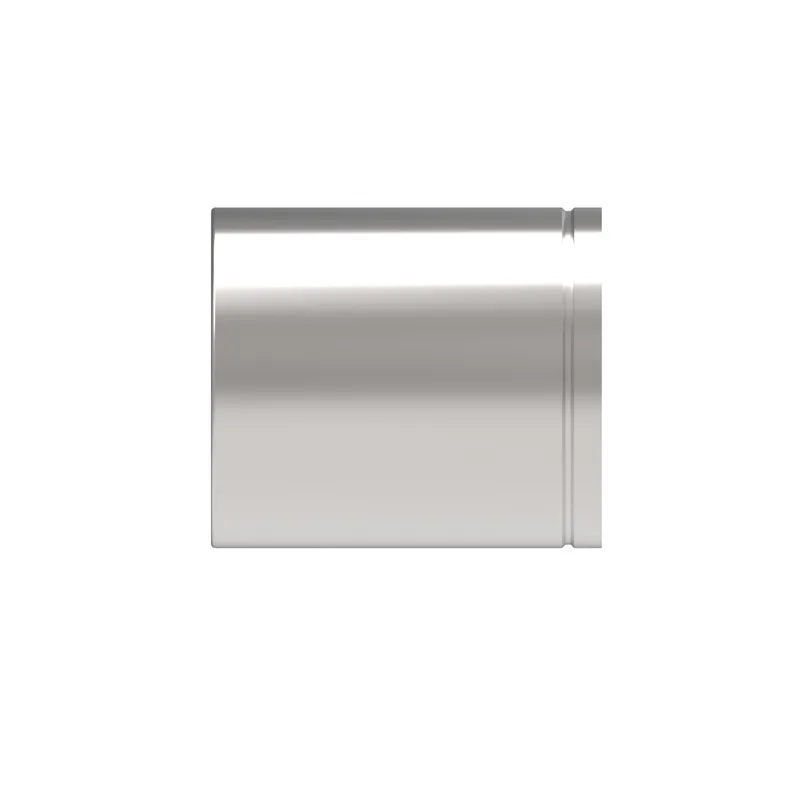

SOCKET-PERM, 1W/10, CS

MPN: 1SA10
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1SA10?

Danfoss SOCKET-PERM, 1W/10, CS, manufacturer part number 1SA10. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146133229
A dimension IN	1.220
A dimension MM	31.000
Angle shape	Straight
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Construction Style	Crimp
End size 1	-10
Finish plating	Dura-Kote
Hose size	-10
Inside diameter IN	0.933
Inside diameter MM	23.700
Product height in	1.270
Product height mm	32.258
Product length in	0.100
Product length mm	2.540
Product material	Carbon steel
Product width in	1.270
Product width mm	32.258
Series	1SA
Thread sealant	No
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

1SA10: frequently asked questions

When can 1SA10 be shipped?

1SA10 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SA10 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SA10 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SA10, subject to availability and destination.
