Danfoss 1S2MP4

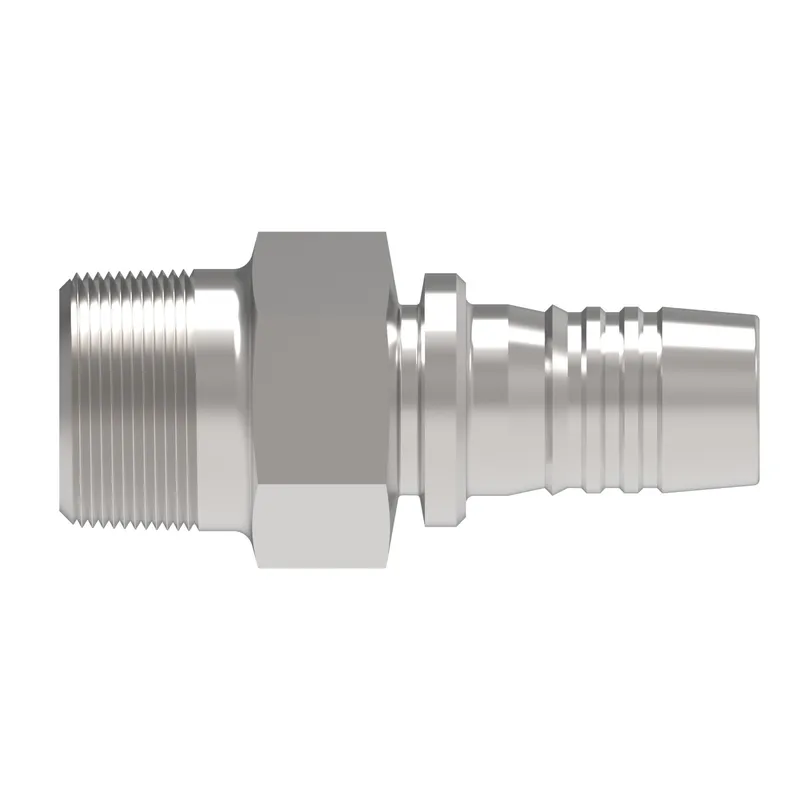

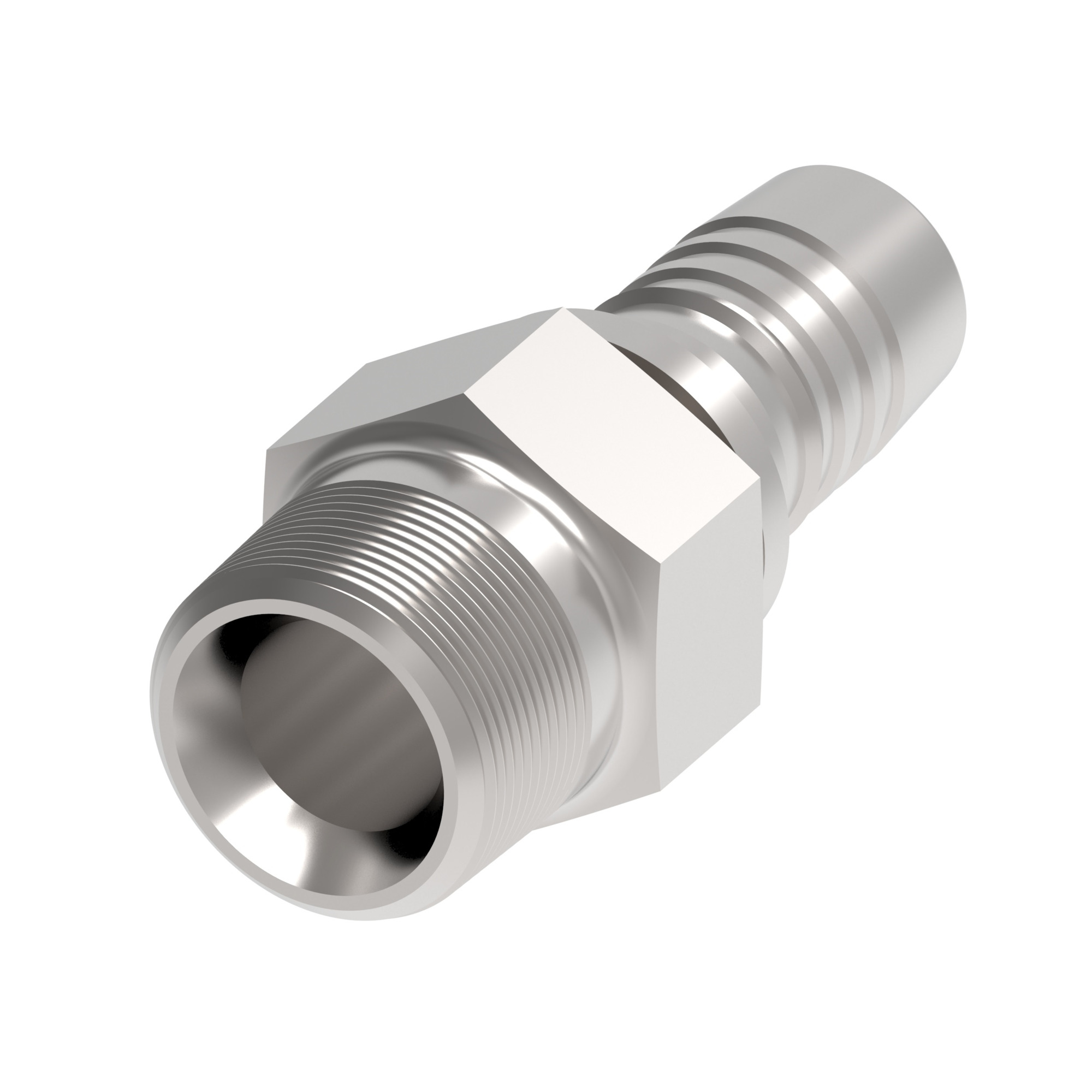

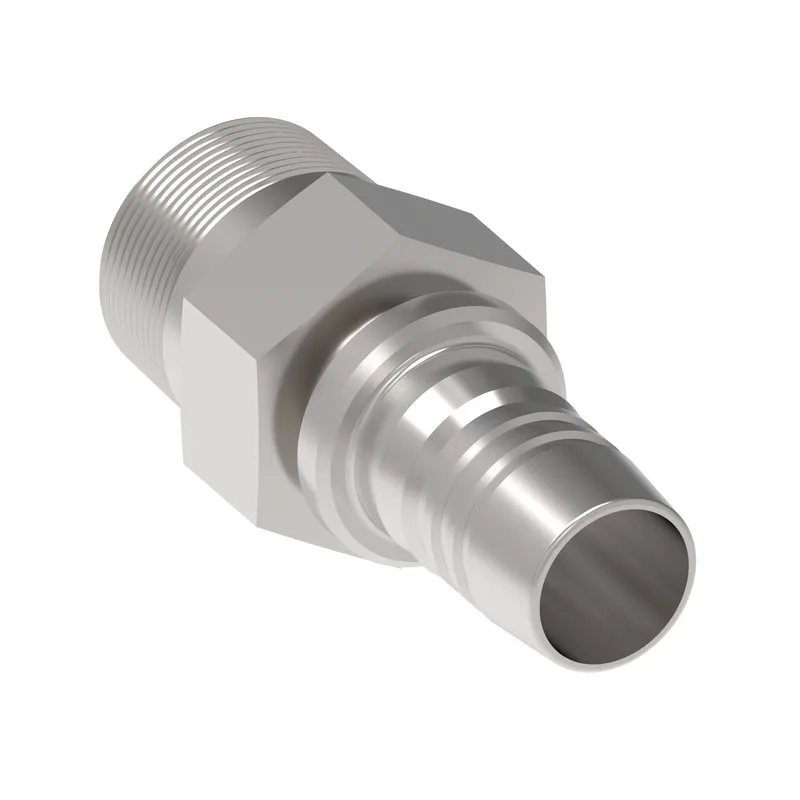

HOSE NIPPLE, 1A/04, NPTF-M/02, CS, STR

MPN: 1S2MP4
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1S2MP4?

Danfoss HOSE NIPPLE, 1A/04, NPTF-M/02, CS, STR, manufacturer part number 1S2MP4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.840
A dimension MM	46.730
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Compatible hoses	2781
Construction Style	Crimp
End size 1	-2
End Type 1	Male pipe (NPTF)
Finish plating	Dura-Kote
Hex size 1 IN	0.550
Hex size 1 MM	13.970
Hose cut off factor IN	0.395
Hose cut off factor MM	10.030
Hose size	-4
Inside diameter IN	0.161
Inside diameter MM	4.100
Product height in	0.630
Product height mm	16.002
Product length in	1.840
Product length mm	46.736
Product material	Carbon steel
Product width in	0.550
Product width mm	13.97
Series	1A/Z Series
Thread sealant	No
Thread size 1	1/8-27 NPTF
Working pressure max BAR	690
Working pressure max PSI	10000

1S2MP4: frequently asked questions

When can 1S2MP4 be shipped?

1S2MP4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1S2MP4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1S2MP4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1S2MP4, subject to availability and destination.
