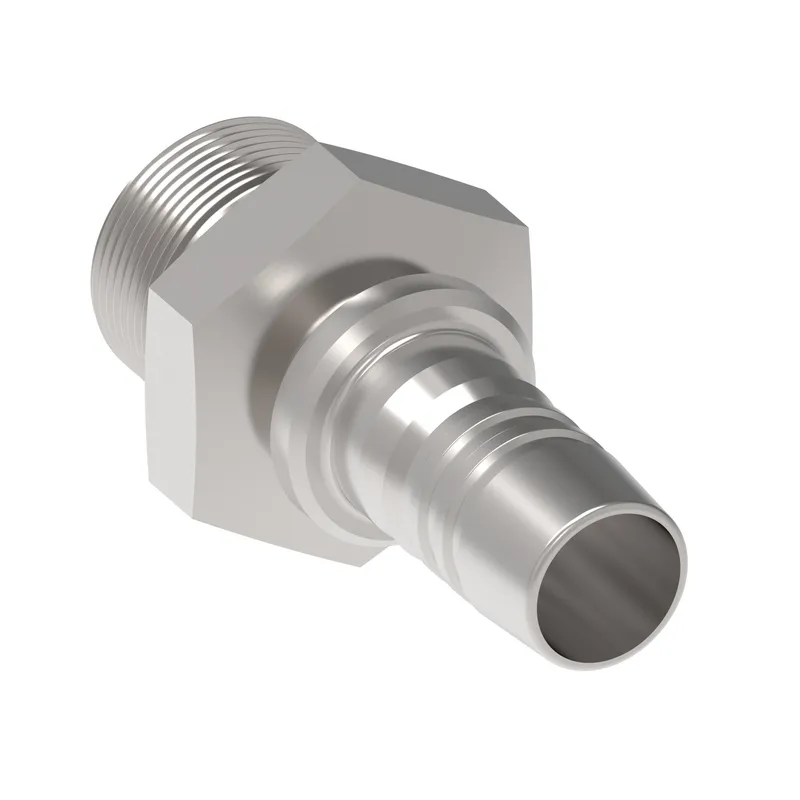

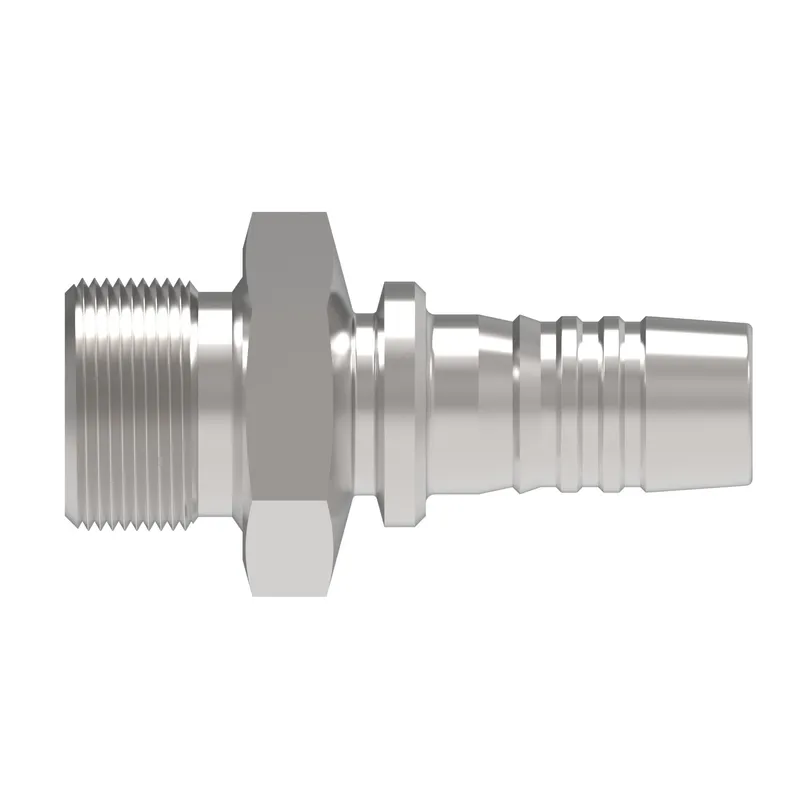

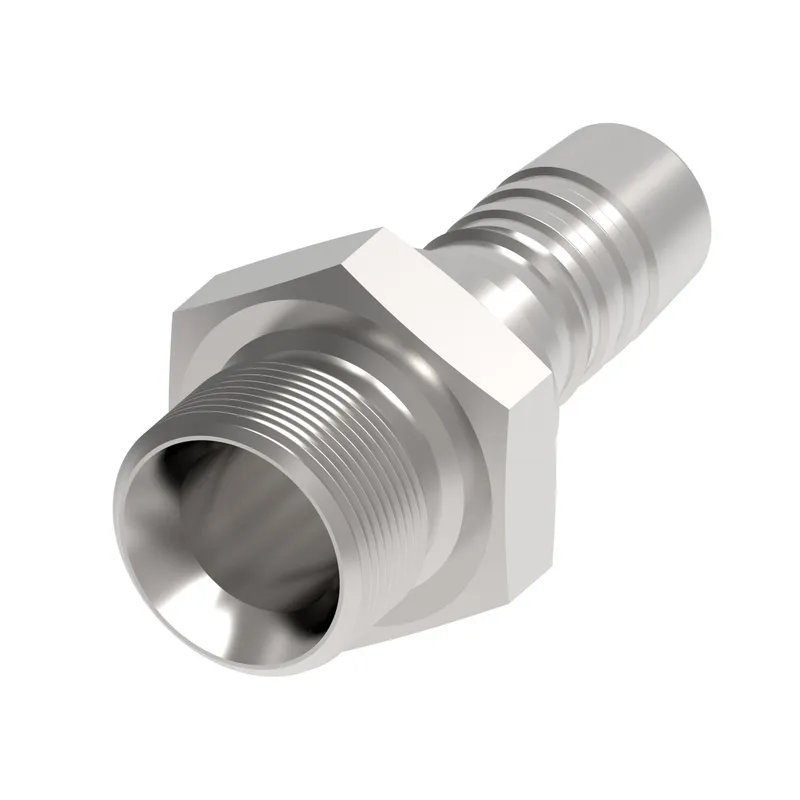

Danfoss 1S8BP8

HOSE NIPPLE ASSY,1A/08,BSPJ/08,CS,STR

MPN: 1S8BP8
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1S8BP8?

Danfoss HOSE NIPPLE ASSY,1A/08,BSPJ/08,CS,STR, manufacturer part number 1S8BP8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.283
A dimension MM	58.000
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Compatible hoses	2781
Construction Style	Crimp
End size 1	-8
End Type 1	Male BSPP 60 degree cone
Finish plating	Dura-Kote
Hex size 1 IN	1.063
Hex size 1 MM	27.000
Hex size 2 IN	0.000
Hose cut off factor IN	0.866
Hose cut off factor MM	22.000
Hose size	-8
Inside diameter IN	0.374
Inside diameter MM	9.500
Product height in	1.220
Product height mm	30.988
Product length in	2.280
Product length mm	57.912
Product material	Carbon steel
Product width in	1.060
Product width mm	26.924
Series	1A/Z Series
Thread sealant	No
Thread size 1	G 1/2
Working pressure max BAR	360.00
Working pressure max PSI	5300.00
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
