Danfoss 1S25ADB16

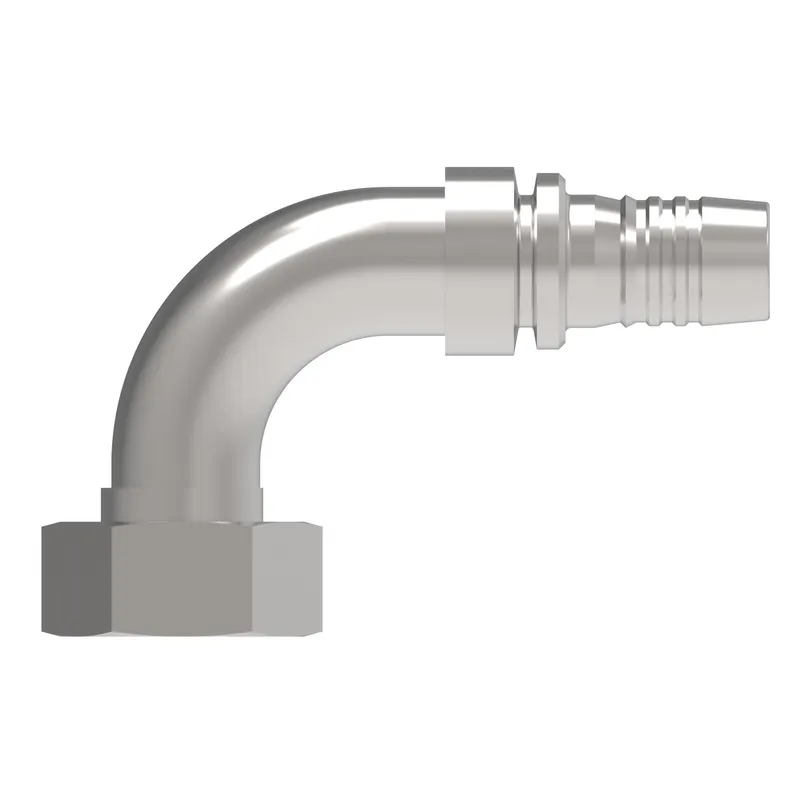

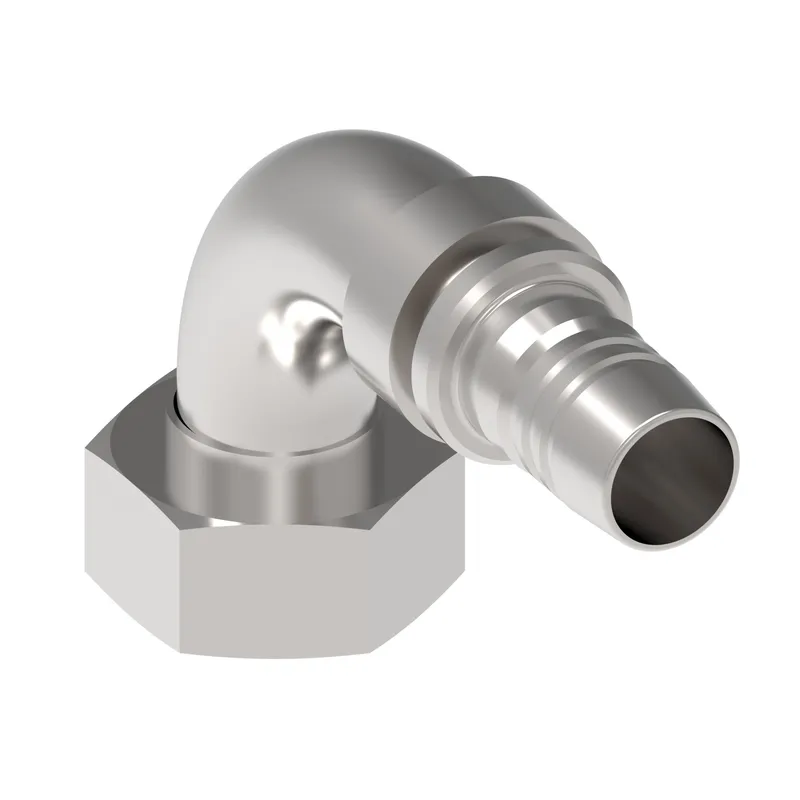

HOSE NIPPLE ASSY, 1A/16, AD/12, CS, 90D

MPN: 1S25ADB16
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1S25ADB16?

Danfoss HOSE NIPPLE ASSY, 1A/16, AD/12, CS, 90D, manufacturer part number 1S25ADB16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	4.311
A dimension MM	109.500
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Compatible hoses	2781
Construction Style	Crimp
Drop dimension IN	2.657
Drop dimension MM	67.50
End size 1	-25
End Type 1	Female globeseal 60 swivel
Finish plating	Protective oil
Hex size 2 IN	1.810
Hex size 2 MM	45.974
Hose cut off factor IN	2.957
Hose cut off factor MM	75.100
Hose size	-16
Inside diameter IN	0.815
Inside diameter MM	20.700
Product height in	3.740
Product height mm	94.996
Product length in	5.350
Product length mm	135.890
Product material	Carbon steel
Product width in	1.810
Product width mm	45.974
Series	1A/Z Series
Thread sealant	No
