Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | A dimension IN | A dimension MM | Product height in | Product length in | Product length mm |
|---|---|---|---|---|---|
| 1SA6FRB6 | 2.340 | 59.400 | 0.900 | 2.340 | 59.436 |

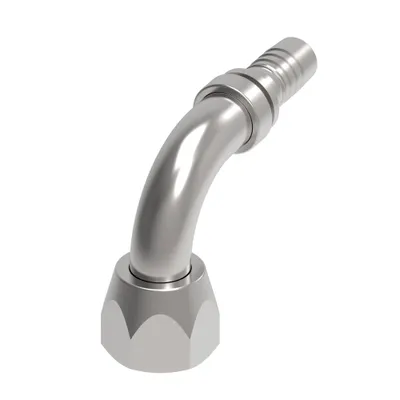

| 1SA6FJB6 | 2.212 | 56.200 | 0.840 | 2.210 | 56.134 |
| 1SA6FJB4 | 2.000 | 50.800 | 0.840 | 2.000 | 50.800 |
| 1SA6FJ6 | 2.279 | 57.900 | 1.060 | 2.280 | 57.912 |
| 1SA6FJ4 | 2.027 | 51.500 | 1.060 | 2.030 | 51.562 |
| 1SA6 | 1.012 | 25.700 | 1.000 | 1.010 | 25.654 |
| 1SA5FJ4 | 1.980 | 50.400 | 0.630 | 1.980 | 50.292 |
| 1SA4FRB4 | 2.086 | 53.000 | 0.820 | 2.090 | 53.086 |

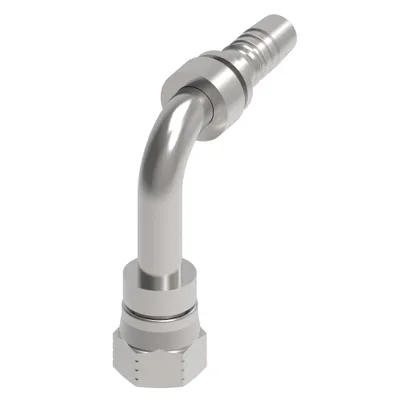

| 1SA4FJC4 | 1.838 | 46.700 | 1.800 | 1.840 | 46.736 |
| 1SA4FJB4 | 1.838 | 46.700 | 0.680 | 1.840 | 46.736 |
| 1SA4FJ6 | 2.190 | 55.600 | 0.690 | 2.190 | 55.626 |
| 1SA4FJ4 | 1.070 | 50.700 | 0.560 | 2.000 | 50.800 |
| 1SA32FJ32 | 4.340 | 110.300 | 2.880 | 4.340 | 110.236 |
| 1SA24FJB24 | 4.633 | 117.700 | 3.170 | 4.630 | 117.602 |
| 1SA24FJ24 | 3.900 | 99.000 | 2.250 | 3.900 | 99.060 |
| 1SA24 | 1.925 | 48.900 | 2.480 | 1.930 | 49.022 |

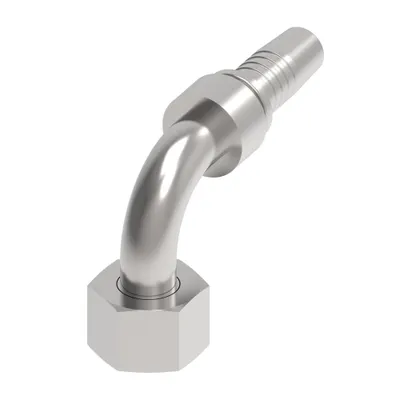

| 1SA20FRB20 | 5.299 | 134.600 | 2.510 | 5.300 | 134.620 |
| 1SA20FJB20 | 4.251 | 108.000 | 2.750 | 4.250 | 107.950 |
| 1SA20FJ20 | 3.614 | 91.800 | 2.000 | 3.610 | 91.694 |

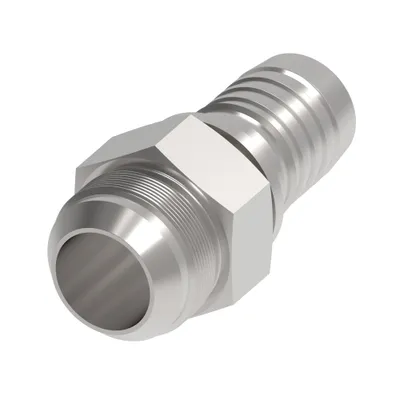

| 1SA16MJ16 | 3.250 | 82.540 | 1.380 | 3.250 | 82.550 |

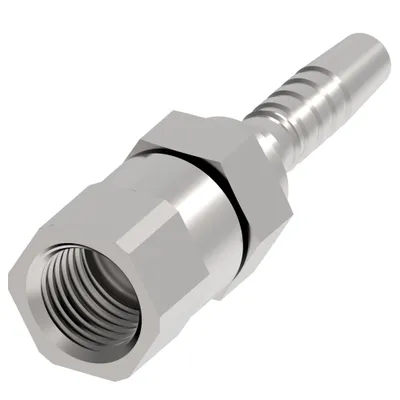

| 1SA16FJ16 | 3.287 | 83.500 | 1.000 | 3.290 | 83.566 |
| 1SA16FJ12 | 2.909 | 73.900 | 1.250 | 2.910 | 73.914 |

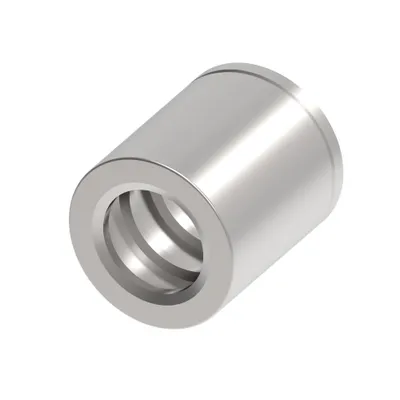

| 1SA16 | 1.409 | 35.800 | 1.720 | 1.410 | 35.814 |
| 1SA12MJ12 | 2.935 | 74.550 | 1.130 | 2.940 | 74.676 |
Common to all listed parts
| Construction Style | Crimp |
| Product material | Carbon steel |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
