Danfoss 1S32EK20

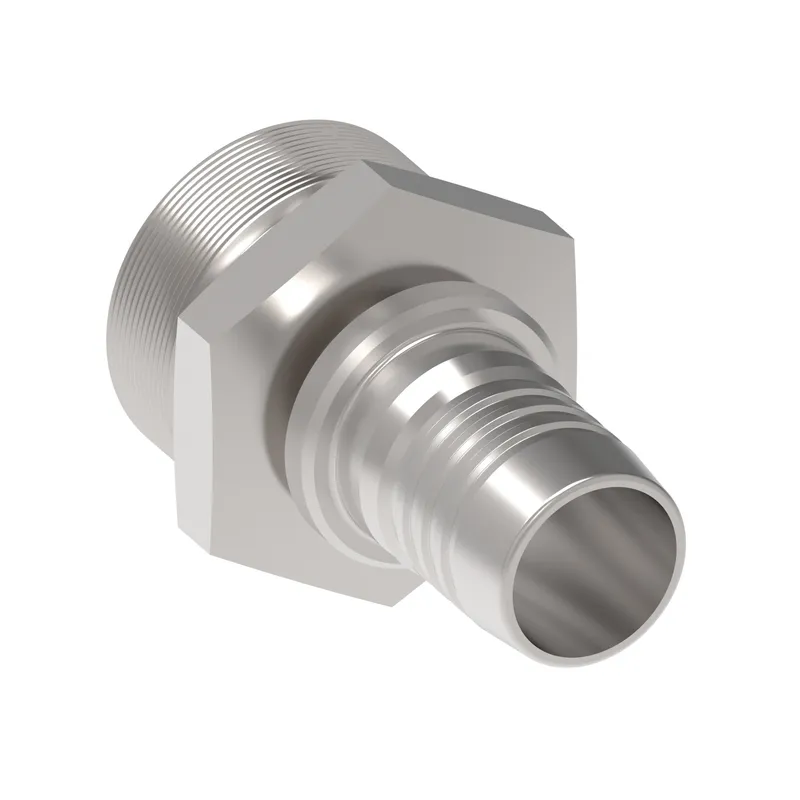

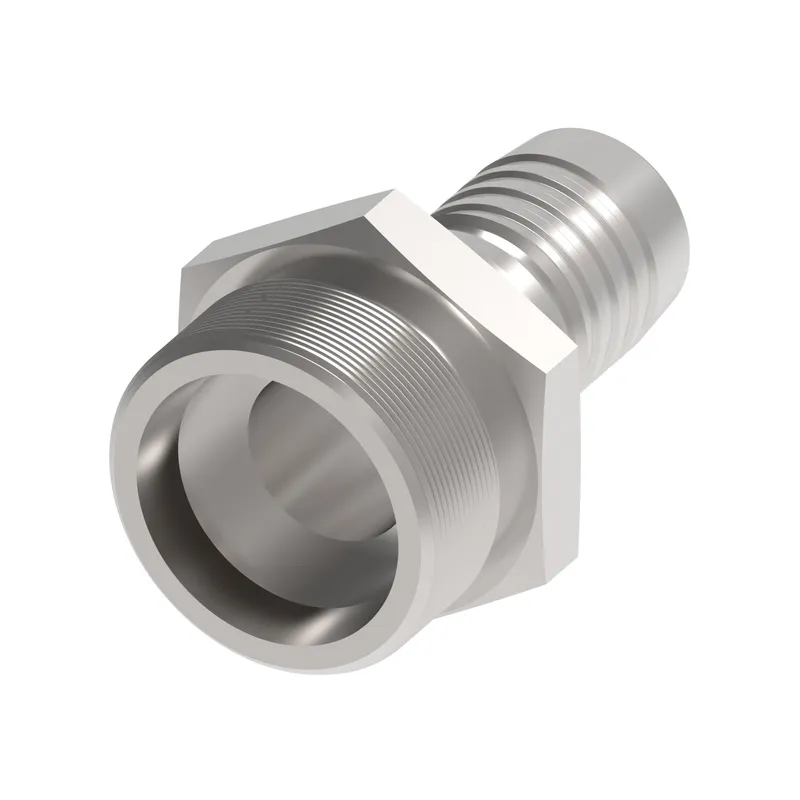

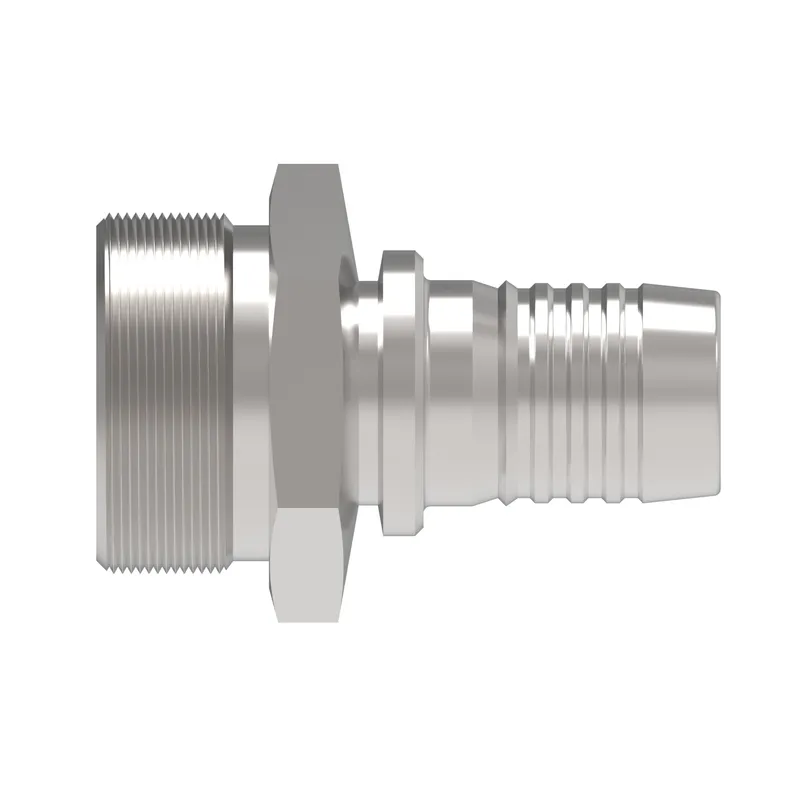

HOSE NIPPLE, 1A/20, DKH-M/32, CS, STR

MPN: 1S32EK20
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1S32EK20?

Danfoss HOSE NIPPLE, 1A/20, DKH-M/32, CS, STR, manufacturer part number 1S32EK20. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.465
A dimension MM	88.000
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Construction Style	Crimp
End connection torque	245-258 lb-ft(334-352 Nm)
End size 1	-32
End Type 1	24 deg. tube port heavy duty
Finish plating	Dura-Kote
Hex size 1 IN	2.160
Hex size 1 MM	54.864
Hose cut off factor IN	1.732
Hose cut off factor MM	44.000
Hose size	-20
Inside diameter IN	1.050
Inside diameter MM	26.500
Product height in	2.500
Product height mm	63.500
Product length in	3.460
Product length mm	87.884
Product material	Carbon steel
Product width in	2.160
Product width mm	54.864
Series	1A/Z Series
Thread sealant	No
Thread size 1	M52x2
