Danfoss 1SA12FRB10

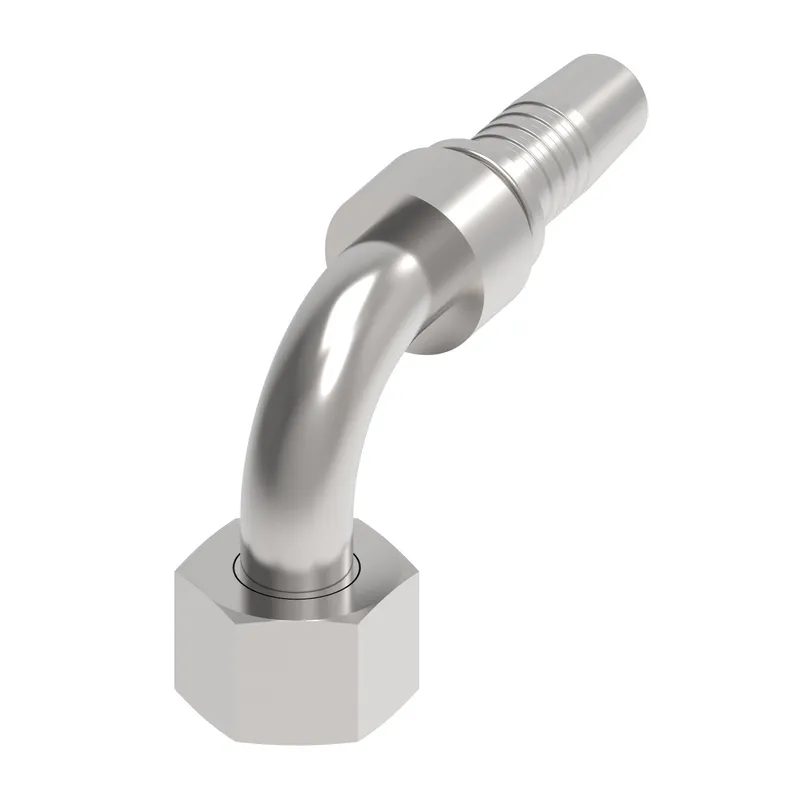

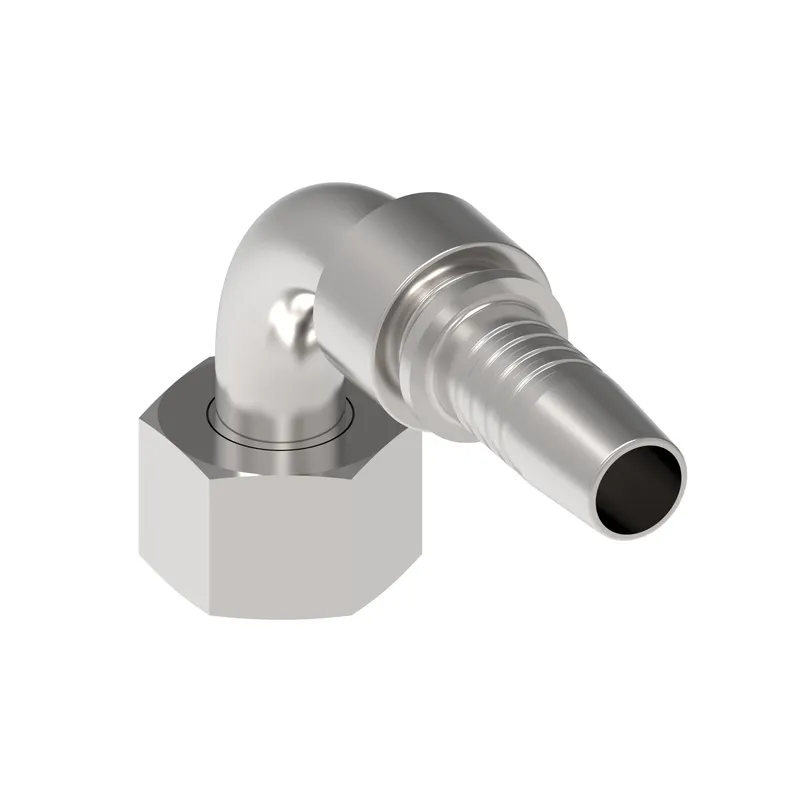

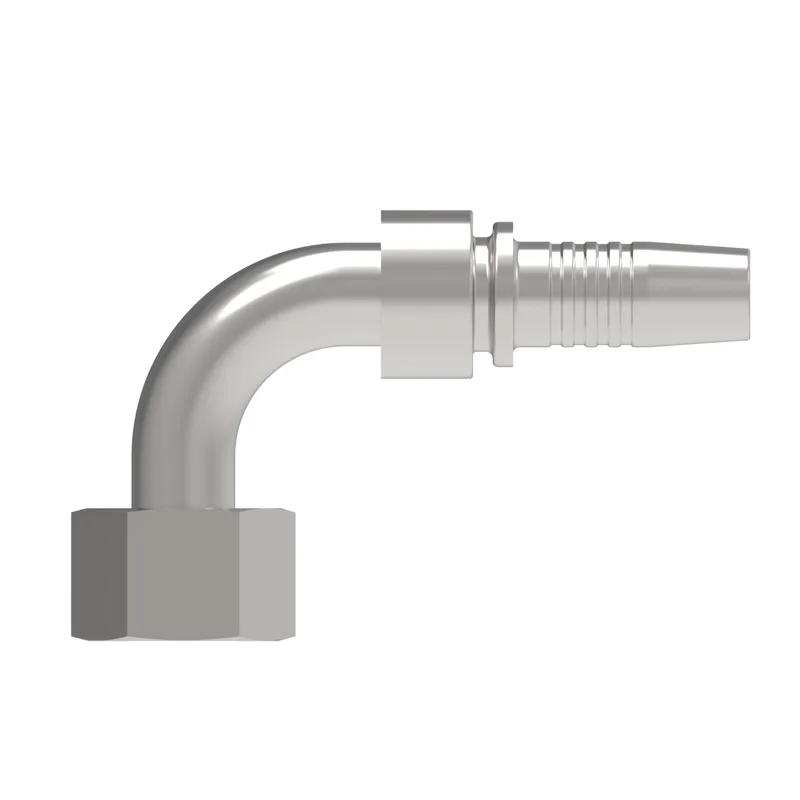

HOSE NIPPLE ASSY,1A/10,ORS-F/12,CS,90D

MPN: 1SA12FRB10
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1SA12FRB10?

Danfoss HOSE NIPPLE ASSY,1A/10,ORS-F/12,CS,90D, manufacturer part number 1SA12FRB10. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.440
A dimension MM	87.500
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Construction Style	Crimp
Drop dimension IN	1.880
Drop dimension MM	47.75
End connection torque	79-87 lb-ft(108-119 Nm)
End size 1	-14
End Type 1	Female ORFS swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.380
Hex size 1 MM	35.052
Hose cut off factor IN	2.290
Hose cut off factor MM	58.166
Hose size	-10
Inside diameter IN	0.500
Inside diameter MM	12.700
Product height in	1.880
Product height mm	47.752
Product length in	3.440
Product length mm	87.376
Product material	Carbon steel
Product width in	1.380
Product width mm	35.052
Series	1A/Z Series
Thread sealant	No
Thread size 1	1 3/16-12 UN
Working pressure max BAR	414
Working pressure max PSI	6000
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
