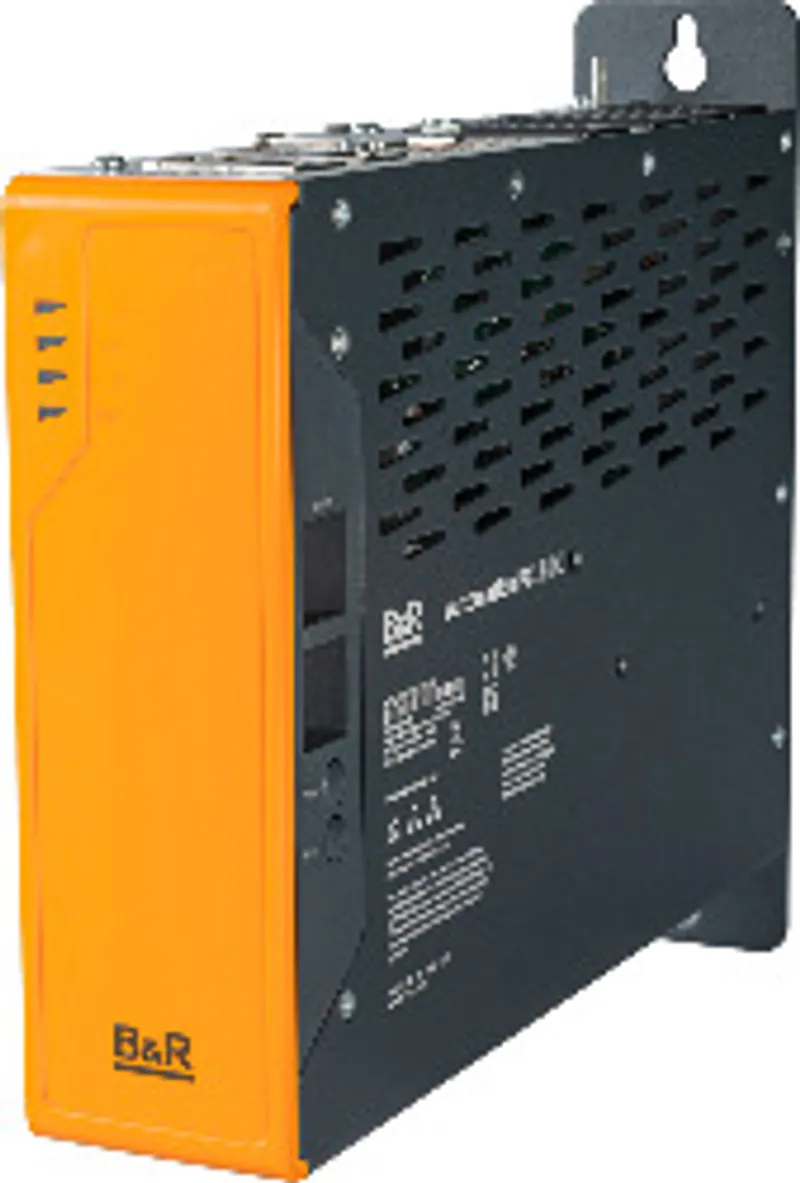

B&R 5APC3200.RPL3-000
APC3200 system unit, Intel Core i7 1365URE 1.7 GHz, 10 core
- MPN
- 5APC3200.RPL3-000
- Category
- System units
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5APC3200.RPL3-000?
APC3200 system unit - Intel Core i7 1365URE 1.7 GHz - 10 core
Specifications
General information
| Battery – Type | Renata 950 mAh |
| Battery – Service life | 4 years (note: At 50°C, 8.5 µA for the components being supplied and self-discharge of 40%. If an interface option with SRAM or POWERLINK is installed, the service life is 2 1 / 2 years.) |
| Battery – Removable | Yes |
| Battery – Variant | Lithium ion |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
| LEDs | Power, Link, Run |
| B&R ID code | 0x307E |
| Cooling | Passive via heat sink |
| Power button | Yes |
| Reset button | Yes |
Controller
| Processor – Type | Intel i7-1365URE |
| Processor – Total number of cores | 10 |
| Processor – Number of P-cores | 2 |
| Processor – Number of E-cores | 8 |
| Processor – Number of threads | 12 |
| Processor – Clock frequency of P-cores | 1700 MHz |
| Processor – Max. turbo frequency of P-cores | 4900 MHz |
| Processor – Clock frequency E-cores | 1200 MHz |
| Processor – Max. turbo frequency of E-cores | 3700 MHz |
| Processor – Thermal design power (TDP) | 15 W |
| Processor – Intel Smart Cache | 12 MB |
| Processor – Intel 64 architecture | Yes |
| Processor – Intel Turbo Boost Technology | Yes |
| Processor – Intel Hyper-Threading Technology | Yes |
| Processor – Intel Virtualization Technology (VT-x) | Yes |
| Processor – Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Processor – Intel Speed Shift Technology | Yes |
| Processor – Enhanced Intel SpeedStep Technology | Yes |
| Real-time clock – Accuracy | At 25°C: Typ. 12 ppm (1 second) per day (note: At max. specified ambient temperature: Typ. 58 ppm (5 seconds) - worst case 220 ppm (19 seconds).) |
| Real-time clock – Battery-backed | Yes |
| Power failure logic – Controller | MTCX (note: Maintenance Controller Extended) |
| Power failure logic – Buffer time | 10 ms |
| Memory – Removable | Yes |
| Memory slot – Number of memory channels | 2 |
| Memory slot – Type | DDR4 SDRAM |
| Memory slot – Memory size | Max. 64 GB |
| Memory slot – Max. memory bandwidth | 2666 MT/s |
| Graphics – HDMI | Resolution up to 4096 x 2304 |
| Graphics – DisplayPort | Resolution up to 7680 x 4320 |
| Graphics – Controller | Intel Iris Xe (only with dual-channel RAM), Intel UHD |
| Graphics – Max. dynamic graphics frequency | 1300 MHz |
| Graphics – Color depth | Max. 32-bit |
| Graphics – DirectX support | 12.1 |
| Graphics – OpenGL support | 4.6 |
| Bootloader | UEFI BIOS |
| Chipset | Intel Raptor Lake U |
| Trusted Platform Module (TPM) | TPM 2.0 |
| Power management | ACPI 5.0 |
Interfaces
| CFexpress slot – Quantity | 2 |
| CFexpress slot – Type | Type B, PCIe Gen3 x2 |
| USB – Quantity | 5 |
| USB – Type | 4x USB 3.2 Gen2; 1x USB 2.0 (internal for Technology Guard) |
| USB – Transfer rate | Up to SuperSpeed+ (10 Gbit/s) (note: SuperSpeed+ (10 Gbit/s) is only possible with USB 3.2 Gen2.) |
| Ethernet – Quantity | 2 |
| Ethernet – Variant | RJ45, shielded |
| Ethernet – Transfer rate | 10/100/1000/2500 Mbit/s |
| DisplayPort – Quantity | 1 |
| DisplayPort – Version | 1.2 |
Slots
| Interface option | 3 (note: The interface option can be replaced.) |
Support
| Software – Automation Studio | V6.3 or later |
Electrical properties
| Nominal voltage | 24 VDC, SELV/PELV (note: IEC 61010-2-201 requirements must be observed.) |
| Nominal current | Max. 5.5 A (note: Maximum possible current consumption at 24 V with 132 W. This may vary depending on the configuration. The inrush current must also be taken into account when selecting the power supply unit.) |
| Operating voltage | 24 VDC ±25% (note: Operating voltage: 18 V - 30 V, max. 7.4 A) |
| Inrush current | Max. 80 A for < 300 µs (note: U in = 24 VDC) |
| Overvoltage category per EN 61131-2 | II |
| Galvanic isolation | Yes |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Degree of protection per EN 60529 | IP20 (note: Only if all interface covers are installed.) |
Ambient conditions
| Elevation – Operation | Max. 3000 m (component-dependent) (note: The maximum ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.) |
Mechanical properties
| Dimensions – Width | 54 mm (note: All dimensions without mounting plate.) |
| Dimensions – Height | 173.5 mm (note: All dimensions without mounting plate.) |
| Dimensions – Depth | 248.3 mm (note: All dimensions without mounting plate.) |
| Weight | 1470 g |
Accessories
Required accessories (order separately)
| 5ACCFF01.0000-001 | Front covers — APC3x00 front cover - Dark gray - Without logo |
| 5ACCFF01.0000-000 | Front covers — APC3x00 front cover - Orange - With B&R logo |
| 5MMDDR.8192-05 | Main memory — SO-DIMM DDR4, 8192 MB |
| 5MMDDR.4096-05 | Main memory — SO-DIMM DDR4, 4096 MB |
| 5MMDDR.032G-05 | Main memory — SO-DIMM DDR4, 32768 MB |
| 5MMDDR.016G-05 | Main memory — SO-DIMM DDR4, 16384 MB |
Optional accessories (28)
| 5CFXPR.960G-20 | CFexpress cards — CFexpress 960 GB TLC |
| 5CFXPR.480G-20 | CFexpress cards — CFexpress 480 GB TLC |
| 5CFXPR.240G-20 | CFexpress cards — CFexpress 240 GB TLC |
| 5CFXPR.120G-20 | CFexpress cards — CFexpress 120 GB TLC |
| 5CFXPR.060G-20 | CFexpress cards — CFexpress 60 GB TLC |
| 5ACCLI02.SDL0-000 | Graphics options — Graphics option - 1x SDL/DVI transmitter - For APC3100/PPC3100 |
| 5ACCLI02.SD40-000 | Graphics options — Graphics option - 1x SDL4 transmitter (max. 1920 x 1080) - For APC3x00/PPC3x00 |
| 5ACCLI02.DPO0-000 | Graphics options — Graphics option - 1x DisplayPort transmitter (version 1.2) - For APC3x00/PPC3x00 - For APC4100 |
| 5ACCIF04.FPLK-000 | Interface options — 1x POWERLINK interface (managing or controlled node) for real-time communication; Poll-response chaining; Compatible with APC3x00/PPC3x00 a… |
| 5ACCIF02.ISS0-000 | Interface options — Interface card - 2x RS232/RS422/RS485 interface - For APC3x00/PPC3x00 |
| 5ACCIF02.FPSC-000 | Interface options — Interface card - 2 MB SRAM - 1x RS232 interface - 1x CAN interface - 1x POWERLINK interface - 1x X2X - For APC3x00/PPC3x00 |
| 5ACCIF02.FPLS-000 | Interface options — Interface card - 2 MB SRAM - 1x RS232 interface - 1x POWERLINK interface - For APC3x00/PPC3x00 |
| 5ACCIF02.FPLK-000 | Interface options — Interface card - 1x POWERLINK interface - 2 MB SRAM - Integrated 2-port hub - Ring redundancy - POWERLINK managing or controlled mode - PRC… |
| 5ACCIF02.CANE-000 | Interface options — Interface card - 1x CAN interface (SJA1000) - 1x ETH 10/100/1000 - For APC3x00/PPC3x00 |
| 5AC901.ISRM-00 | Interface options — 2 MB SRAM; Compatible with APC910/PPC900, APC3x00/PPC3x00 and APC4100 Interface option 5AC901.ISRM-00 is equipped with 2 MB SRAM. |
| 5AC901.ISIO-00 | Interface options — Connections for the reset button and power buttons on the PC; Connection for LED "Power" on the PC; 1 normally closed contact, 1 normally o… |
| 5AC901.IRDY-00 | Interface options — 1 normally closed contact, 1 normally open contact; Compatible with APC910/PPC900, APC3x00/PPC3x00 and APC4100 Ready relay 5AC901.IRDY-00 i… |
| 5AC901.IPLK-00 | Interface options — 1x POWERLINK interface managing or controlled node; 2 MB SRAM; Compatible with APC910/PPC900 and APC3100/PPC3100 Interface card - 1x POWERL… |
| 5AC901.IHDA-00 | Interface options — 1x MIC; 1x Line IN; 1x Line OUT; Compatible with APC910/PPC900, APC3x00/PPC3x00 and APC4100 Interface option 5AC901.IHDA-00 is equipped wit… |
| 5AC901.IETH-00 | Interface options — Interface card - 1x ETH 10/100/1000 - For APC910/PPC900 - For APC3x00/PPC3x00 - For APC4100 |
| 5AC901.ICAN-01 | Interface options — Interface card - 1x CAN interface (SJA1000) - For APC910/PPC900 - For APC3x00/PPC3x00 - For APC4100 |
| 5AC901.I485-00 | Interface options — 1x RS232/RS422/RS485 interface; Compatible with APC910/PPC900 and APC3100/PPC3100 Interface option 5AC901.I485-00 is equipped with an RS232… |
| 5AC901.I232-00 | Interface options — Interface card - 1x RS232 interface - For APC910/PPC900 - For APC3x00/PPC3x00 - For APC4100 |
| 5ACCMSM2.1024-000 | Mass storage options — Compatible with APC3100/PPC3100 (using adapter card 5ACCMS01.MDT2-000); Solid-state drives; MLC technology; SATA support; 1 TB 1 TB M.2 SSD… |
| 5ACCMSM2.0512-000 | Mass storage options — Compatible with APC3100/PPC3100 (using adapter card 5ACCMS01.MDT2-000); Solid-state drives; MLC technology; SATA support; 512 GB 512 GB M.2… |
| 5ACCMS01.MDT2-000 | Mass storage options — Compatible in the APC3x00/PPC3x00 and APC4100 (only with 5ACCMBMS.0000-000 ); Easy installation in slot IF option 3.; 5ACCMSM2.xxxx-000 mem… |
| 5AC901.IUPS-01 | Uninterruptible power supplies — UPS IF option 5AC901.IUPS-01 used together with battery unit 5AC901.BUPS-01 allows the B&R industrial PC to be switched off properly withou… |
| 5AC901.IUPS-00 | Uninterruptible power supplies — UPS IF option 5AC901.IUPS-00 used together with battery unit 5AC901.BUPS-00 allows the B&R industrial PC to be switched off properly withou… |
