B&R 5ACCMSM2.0512-000
Compatible with APC3100/PPC3100
- MPN
- 5ACCMSM2.0512-000
- Category
- Mass storage options
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5ACCMSM2.0512-000?
Compatible with APC3100/PPC3100 (using adapter card 5ACCMS01.MDT2-000)
Solid-state drives
MLC technology
SATA support
512 GB

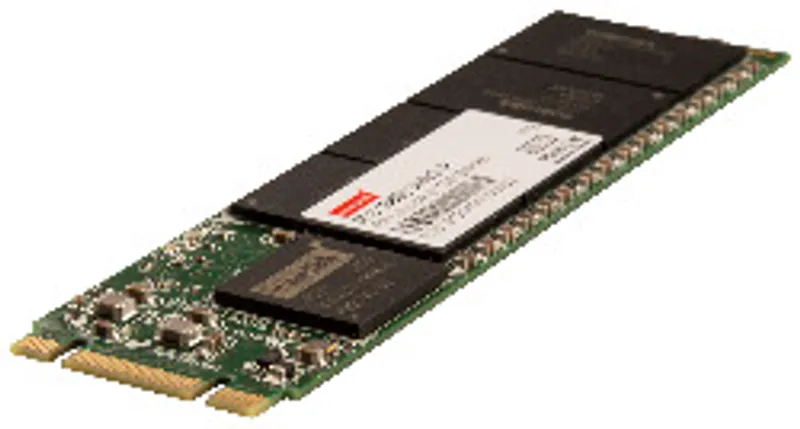

512 GB M.2 SSD MLC - Innodisk - SATA
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Data retention | 10 years (note: Per JEDEC (JESD47), EOL conditions are not permitted to be reached before 18 months. A higher average daily write workload reduces the expected service life and data retention of the data storage medium.) |
| B&R ID code | 0xFCCD |
Solid-state drive
| IOPS – 4k read | Max. 76,000 (random) (note: IOPS: Random read and write input/output operations per second) |
| IOPS – 4k write | Max. 76,000 (random) (note: IOPS: Random read and write input/output operations per second) |
| Capacity | 512 GB |
| Data reliability | <1 unrecoverable error per 10 15 bits read |
| MTBF | 3,000,000 h |
| S.M.A.R.T. support | Yes |
| Interface | SATA |
| Continuous reading | Max. 560 MB/s |
| Continuous writing | Max. 450 MB/s |
Endurance
| Guaranteed data volume – Client workload | 600 TBW (note: TBW: Terabytes written Client workload per standard JEDEC JESD219) |
| MLC flash memory | Yes |
| Compatibility | SATA 3.1 compliant; ACS-2; SSD Enhanced SMART ATA feature set; Native Command Queuing (NCQ) |
| Storage health data support | Yes, AR 4.90 and later |
Electrical properties
| Power consumption | Max. 3.5 W |
Ambient conditions
| Temperature – Operation | -40 to 85°C |
| Temperature – Storage | -55 to 95°C |
| Temperature – Transport | -55 to 95°C |
| Relative humidity – Operation | 10 to 90%, non-condensing |
| Relative humidity – Storage | 10 to 95%, non-condensing |
| Relative humidity – Transport | 10 to 95%, non-condensing |
| Vibration – Operation | 7 to 2000 Hz: 20 g |
| Vibration – Storage | 7 to 2000 Hz: 20 g |
| Vibration – Transport | 7 to 2000 Hz: 20 g |
| Shock – Operation | 1500 g, 0.5 ms |
| Shock – Storage | 1500 g, 0.5 ms |
| Shock – Transport | 1500 g, 0.5 ms |
Mechanical properties
| Dimensions – Width | 22 mm |
| Dimensions – Height | 80 mm |
| Weight | Approx. 15 g |
Vendor information
| Manufacturer | Innodisk |
| Manufacturer's product ID | M.2 (S80) 3MV2-P 512 GB |
Accessories
Optional accessories (1)
| 5ACCMS01.MDT2-000 | Mass storage options — Compatible in the APC3x00/PPC3x00 and APC4100 (only with 5ACCMBMS.0000-000 ); Easy installation in slot IF option 3.; 5ACCMSM2.xxxx-000 mem… |
