Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | A dimension IN | A dimension MM | Hose cut off factor MM | Product length in | Product length mm |
|---|---|---|---|---|---|
| 1G10DK6 | 1.920 | 49.000 | 23.700 | 1.929 | 48.997 |

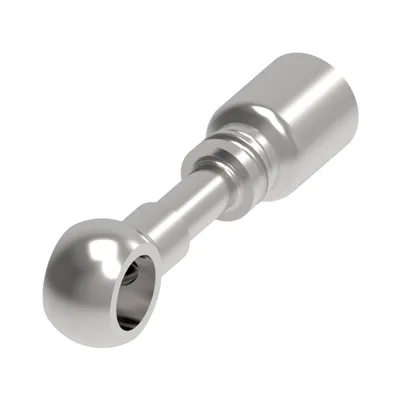

| 1G10BJ6 | 3.020 | 76.900 | 51.600 | 3.579 | 90.899 |
| 1G10 | 1.180 | 29.970 | — | 2.000 | 50.800 |
| 1F90001-1206AR | 1.500 | 38.300 | 25.300 | 1.507 | 38.278 |
| 1F15-08-S | 1.560 | 39.700 | — | 1.563 | 39.700 |
| 1F15-06-S | 1.240 | 31.650 | — | 1.246 | 31.650 |
| 1F00997-2020-S | 5.770 | 146.600 | 61.700 | 8.055 | 204.600 |
| 1BA16FJ20 | 3.279 | 83.300 | 44.000 | 3.460 | 87.884 |
| 1B8FH8 | 3.130 | 79.500 | 52.300 | 3.230 | 82.042 |

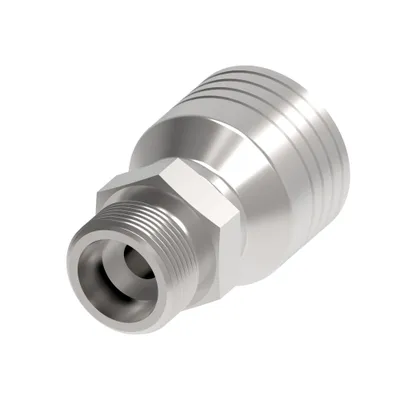

| 1B16EK10 | 2.440 | 62.000 | 32.700 | 2.441 | 62.001 |
| 1AV20MP20 | 3.340 | 84.900 | 45.466 | 3.340 | 84.836 |
| 1AV20FRC20 | — | 85.600 | 58.500 | 5.300 | 134.620 |
| 1AV20FRB20 | 5.120 | 130.100 | 90.678 | 5.120 | 130.048 |
| 1AV20FJA20 | 4.270 | 108.400 | 68.834 | 4.270 | 108.458 |

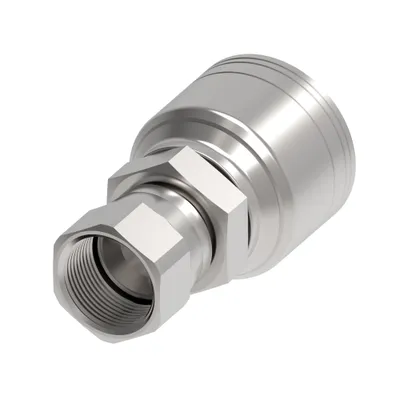

| 1AV20FJ20C | 3.440 | 87.300 | 47.800 | 3.610 | 91.694 |
| 1AV20FJ20 | 3.440 | 87.300 | 47.752 | 3.440 | 87.376 |

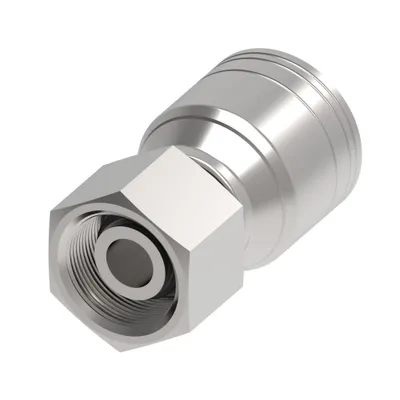

| 1AT32DS20 | 3.690 | 93.700 | 49.784 | 3.690 | 93.726 |

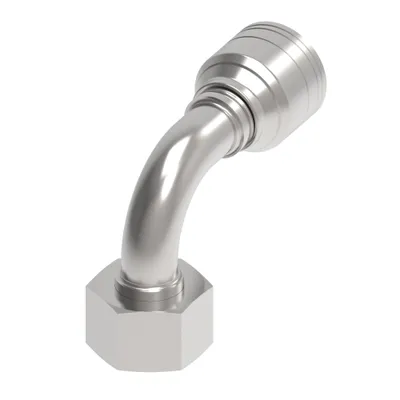

| 1AT32DLB20 | 5.120 | 130.000 | 74.930 | 5.120 | 130.048 |
| 1AT32DLA20 | 5.826 | 148.000 | 104.000 | 5.830 | 148.082 |

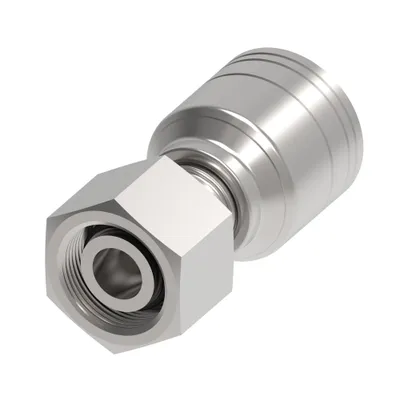

| 1AT32DL20 | 3.300 | 83.700 | 39.700 | 3.290 | 83.566 |

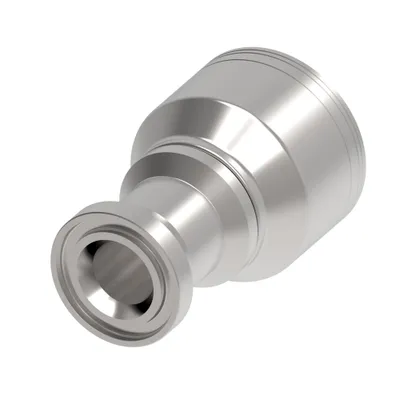

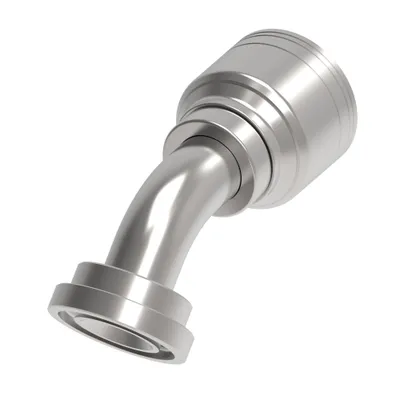

| 1AT24FLA20 | 5.760 | 146.200 | 106.680 | 6.950 | 176.530 |
| 1AT24FL20 | 4.090 | 104.000 | 64.500 | 4.090 | 103.886 |
| 1AT20FLD20 | 5.390 | 136.900 | 97.282 | 5.390 | 136.900 |
| 1AT20BP20 | 3.390 | 86.200 | 42.164 | 3.390 | 86.106 |
Common to all listed parts
| Construction Style | Crimp |
