Danfoss 1G12DSA8

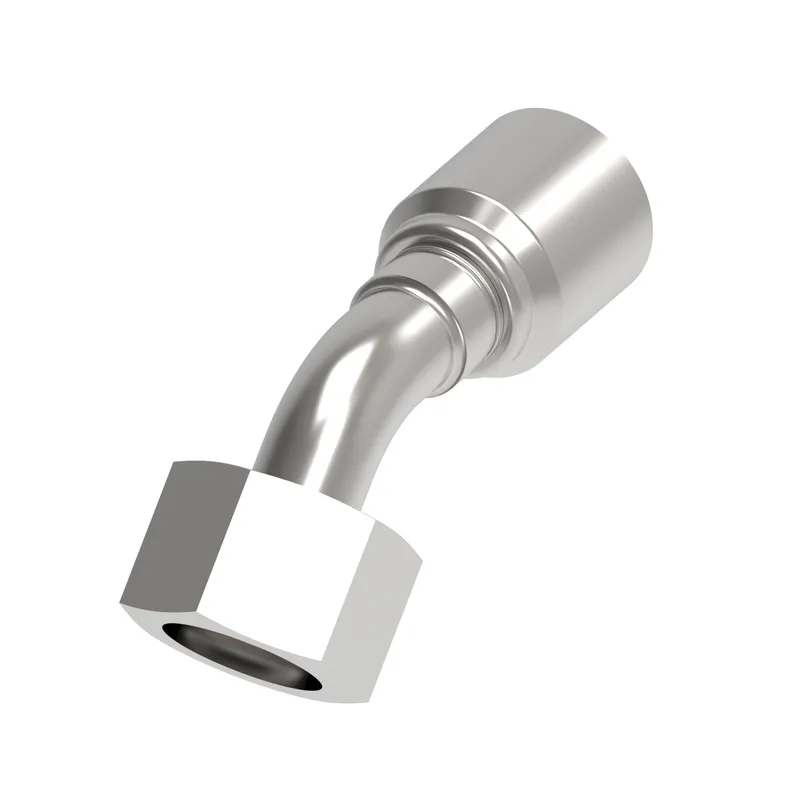

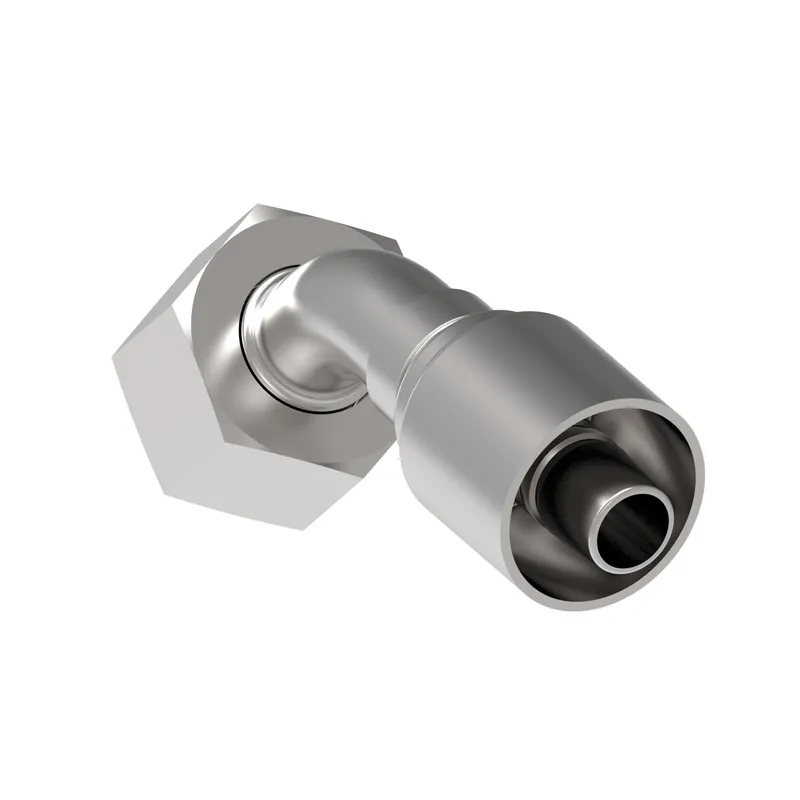

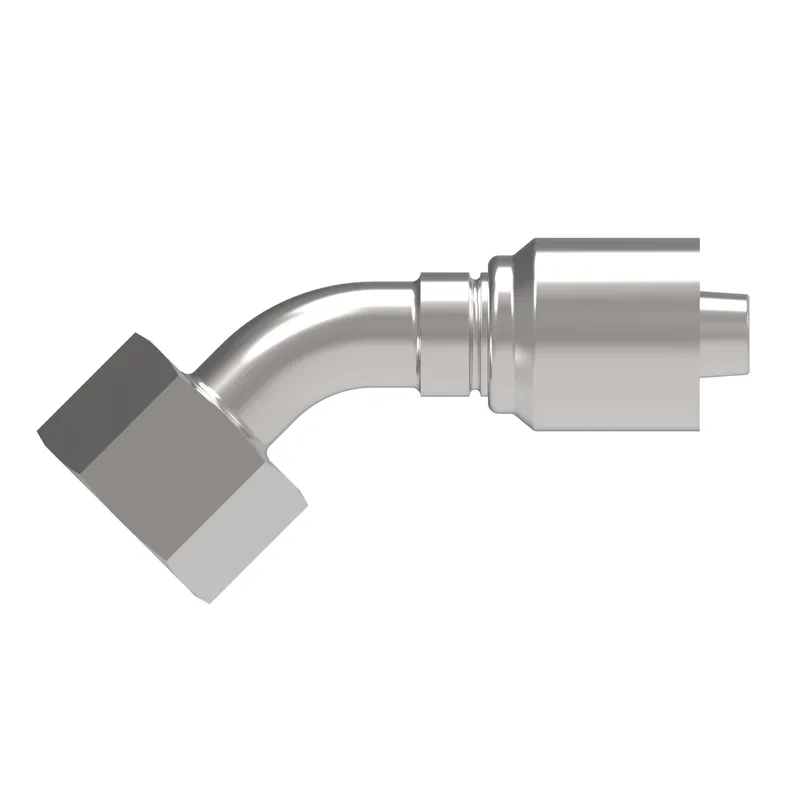

HOSE FTG, 1G/08, DKOH-B/12, CS, 45D

MPN: 1G12DSA8
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G12DSA8?

Danfoss HOSE FTG, 1G/08, DKOH-B/12, CS, 45D, manufacturer part number 1G12DSA8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.410
A dimension MM	86.700
Angle shape	45 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
Drop dimension IN	0.940
Drop dimension MM	24.00
End size 1	-12
End Type 1	24 deg. DKO swivel heavy duty
Finish plating	Dura-Kote
Hex size 1 IN	1.062
Hex size 1 MM	30.000
Hex size 2 IN	1.181
Hex size 2 MM	30.000
Hose cut off factor IN	2.250
Hose cut off factor MM	57.500
Hose size	-8
Inside diameter IN	0.380
Inside diameter MM	9.600
Product height in	2.072
Product height mm	52.639
Product length in	4.004
Product length mm	101.699
Product material	Carbon steel
Product width in	1.364
Product width mm	34.641
Proposition 65	Cancer and Reproductive Harm
Seal material	Nitrile (NBR)
Series	OTC
Thread sealant	No
Thread size 1	M24x1.5
Working pressure max BAR	330
Working pressure max PSI	4800
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40

1G12DSA8: frequently asked questions

When can 1G12DSA8 be shipped?

1G12DSA8 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1G12DSA8 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1G12DSA8 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1G12DSA8, subject to availability and destination.
