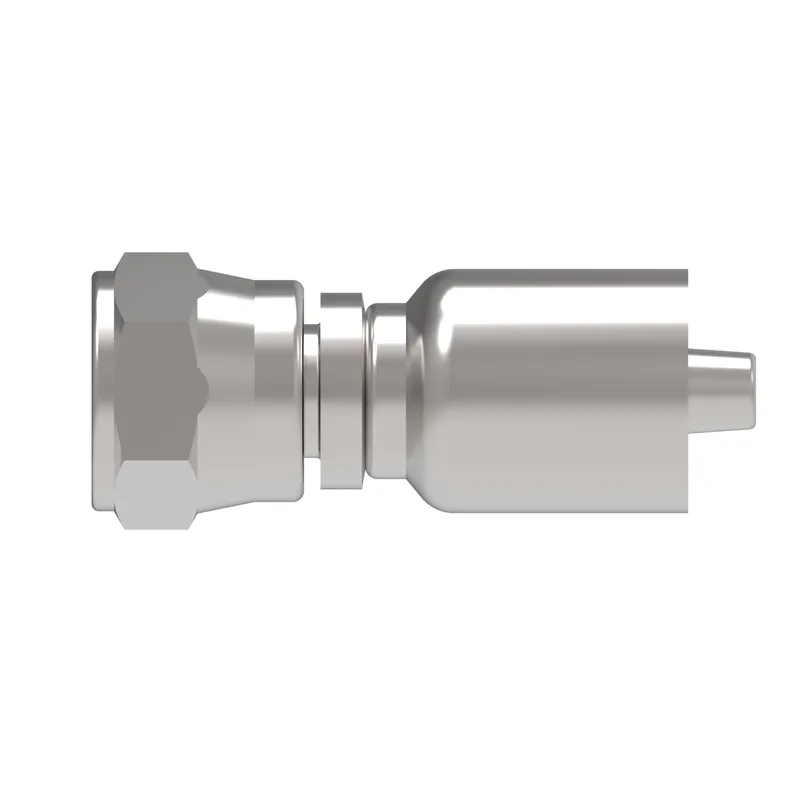

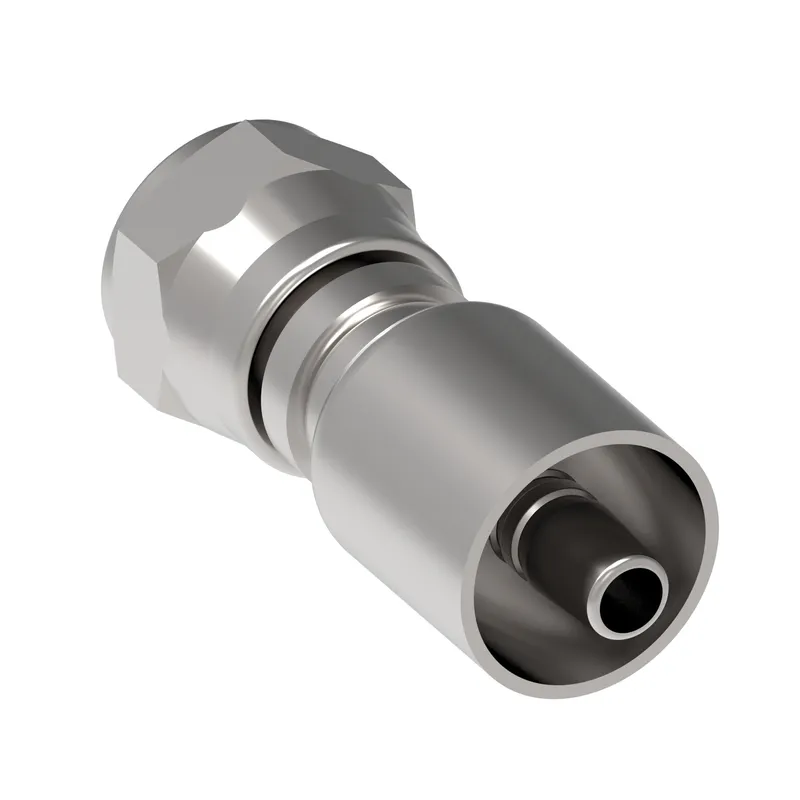

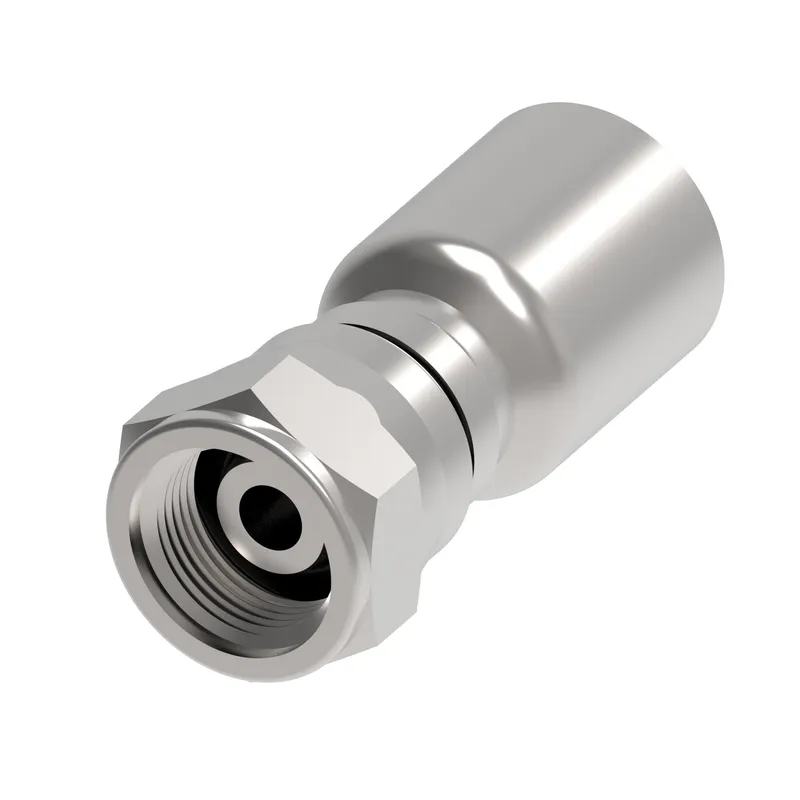

Danfoss 1G12BF12

HOSE FTG, 1G/12, BF/12, CS, STR

MPN: 1G12BF12
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G12BF12?

Danfoss HOSE FTG, 1G/12, BF/12, CS, STR, manufacturer part number 1G12BF12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.190
A dimension MM	55.500
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Compatible hoses	GH585, GH586
Construction Style	Crimp
End size 1	-12
End Type 1	Female BSPP swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.259
Hex size 1 MM	31.979
Hose cut off factor IN	1.000
Hose cut off factor MM	25.300
Hose size	-12
Inside diameter IN	0.610
Inside diameter MM	15.500
Product height in	1.420
Product height mm	36.068
Product length in	2.180
Product length mm	55.372
Product material	Carbon steel
Product width in	1.420
Product width mm	36.068
Proposition 65	Cancer and Reproductive Harm
Series	OTC
Thread sealant	No
Thread size 1	G 3/4
Working pressure max BAR	330.00
Working pressure max PSI	4800.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
