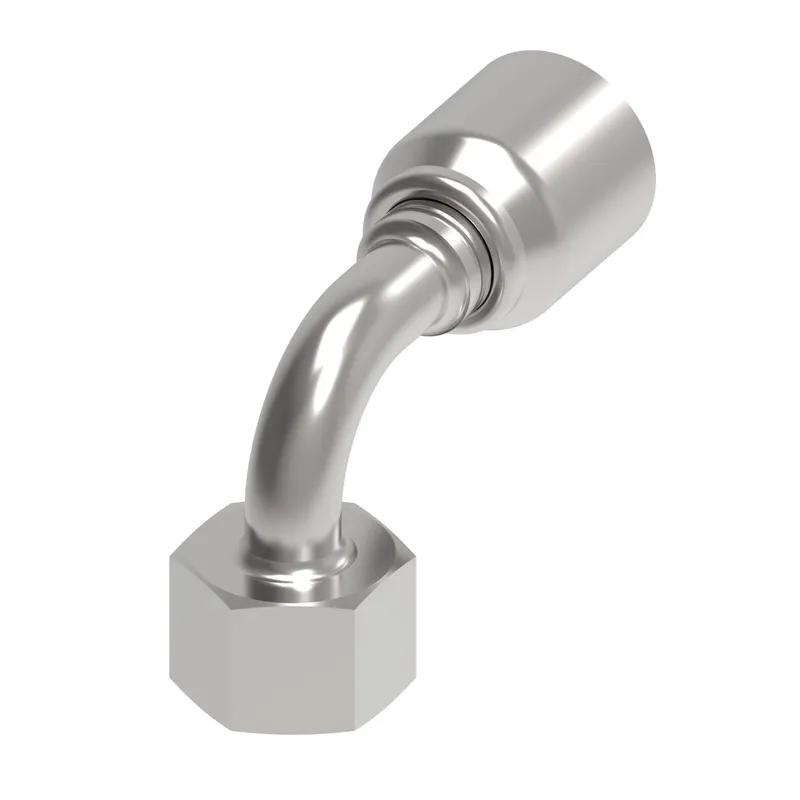

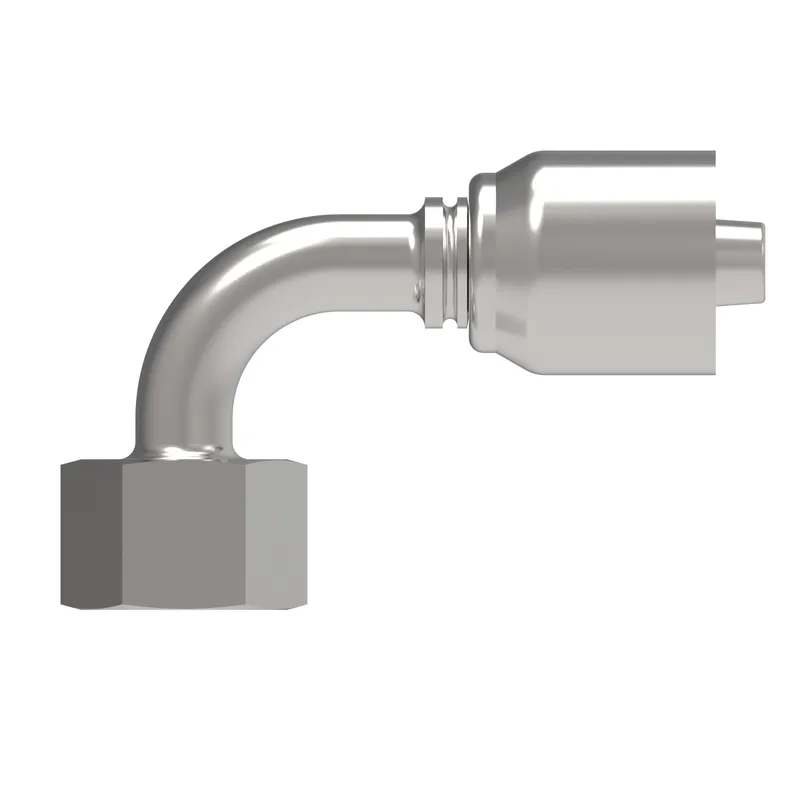

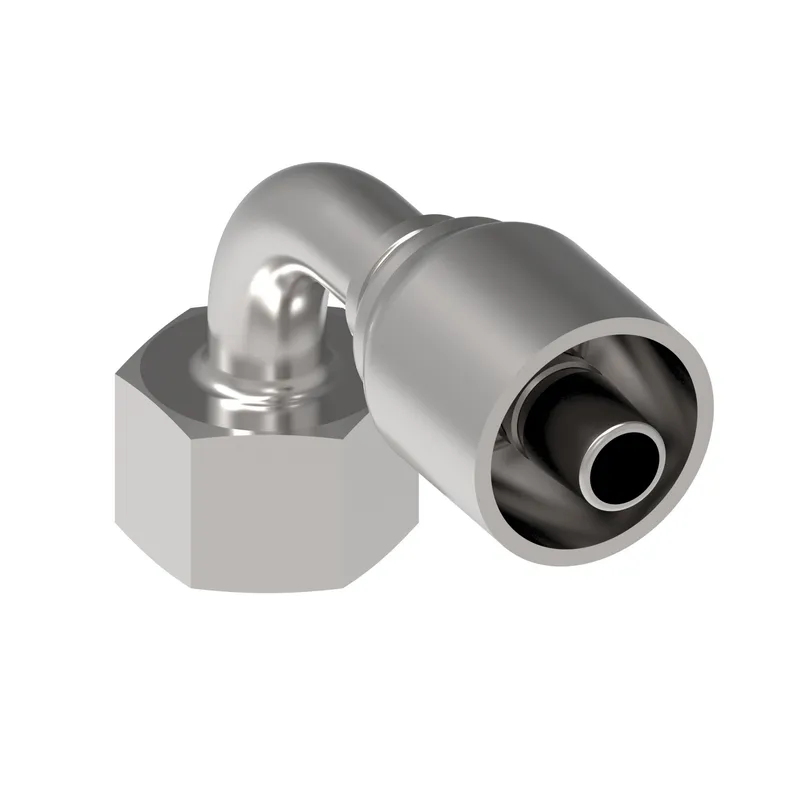

Danfoss 1G10DLB5

HOSE FTG, 1G/05, DKOL/10, CS, 90D

MPN: 1G10DLB5
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G10DLB5?

Danfoss HOSE FTG, 1G/05, DKOL/10, CS, 90D, manufacturer part number 1G10DLB5. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.370
A dimension MM	60.100
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.310
Compatible hose ID MM	7.900
Compatible hoses	GH585, GH586
Construction Style	Crimp
Drop dimension IN	1.470
Drop dimension MM	37.50
End connection torque	37-44 lb-ft(50-60 Nm)
End size 1	-10
End Type 1	24 deg. DKO swivel light duty
Finish plating	Dura-Kote
Hex size 1 IN	0.870
Hex size 1 MM	22.098
Hose cut off factor IN	1.420
Hose cut off factor MM	36.200
Hose size	-5
Inside diameter IN	0.200
Inside diameter MM	5.300
Product height in	1.860
Product height mm	47.244
Product length in	2.790
Product length mm	70.866
Product material	Carbon steel
Product width in	0.870
Product width mm	22.098
Seal material	Nitrile (NBR)
Series	OTC
Thread sealant	No
Thread size 1	M18x1.5
Working pressure max BAR	250.00
Working pressure max PSI	3650.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
