Danfoss 1G10DL8

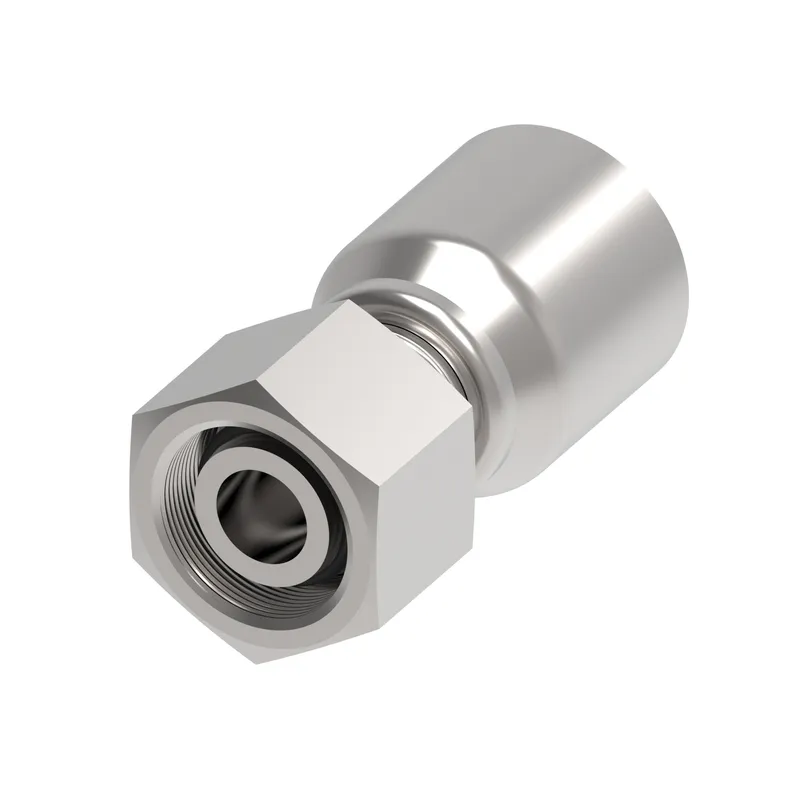

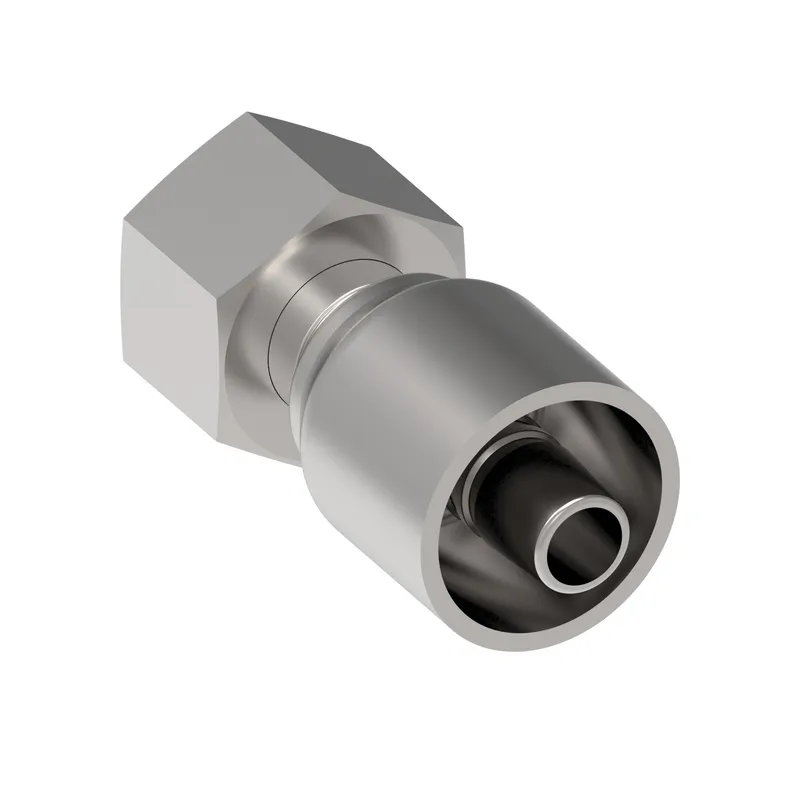

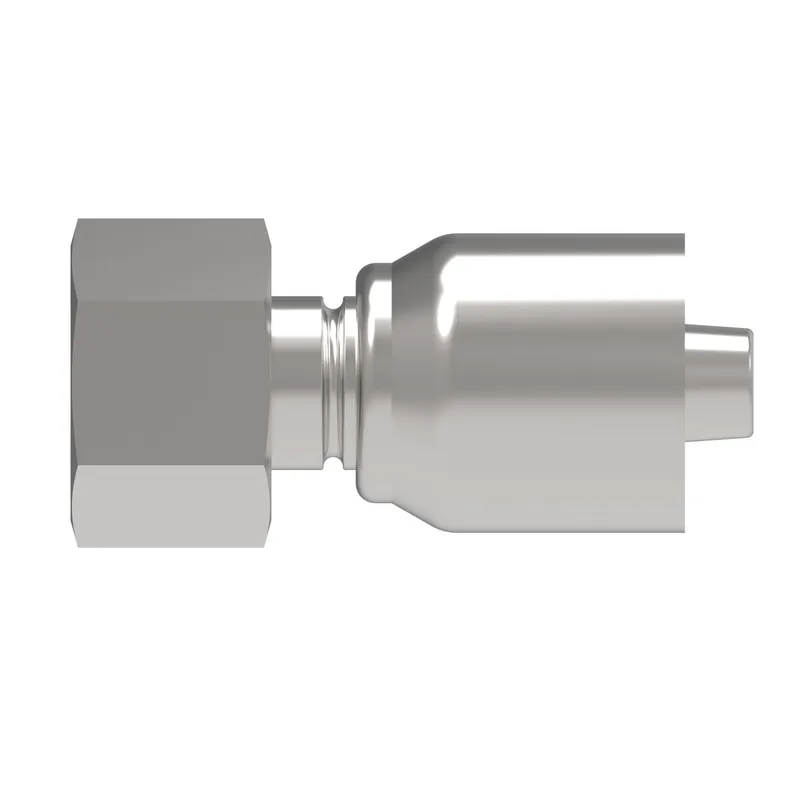

HOSE FTG, 1G/08, DKOL/10, CS, STR

MPN: 1G10DL8
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G10DL8?

Danfoss HOSE FTG, 1G/08, DKOL/10, CS, STR, manufacturer part number 1G10DL8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.360
A dimension MM	60.000
Angle shape	Straight
Application	General industrial use, Hydraulic systems, Petroleum based fluids, Water based fluids
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Compatible hoses	GH585, GH586
Construction Style	Crimp
End connection torque	37-44 lb-ft(50-60 Nm)
End size 1	-10
End Type 1	24 deg. DKO swivel light duty
Finish plating	Dura-Kote
Hex size 1 IN	0.866
Hex size 1 MM	21.996
Hose cut off factor IN	1.190
Hose cut off factor MM	30.300
Hose size	-8
Inside diameter IN	0.380
Inside diameter MM	9.600
Product height in	1.070
Product height mm	27.178
Product length in	2.362
Product length mm	59.995
Product material	Carbon steel
Product width in	1.070
Product width mm	27.178
Seal material	Nitrile (NBR)
Series	OTC
Thread sealant	No
Thread size 1	M18x1.5
Working pressure max BAR	250
Working pressure max PSI	3650
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
