Danfoss 1G12BFB12

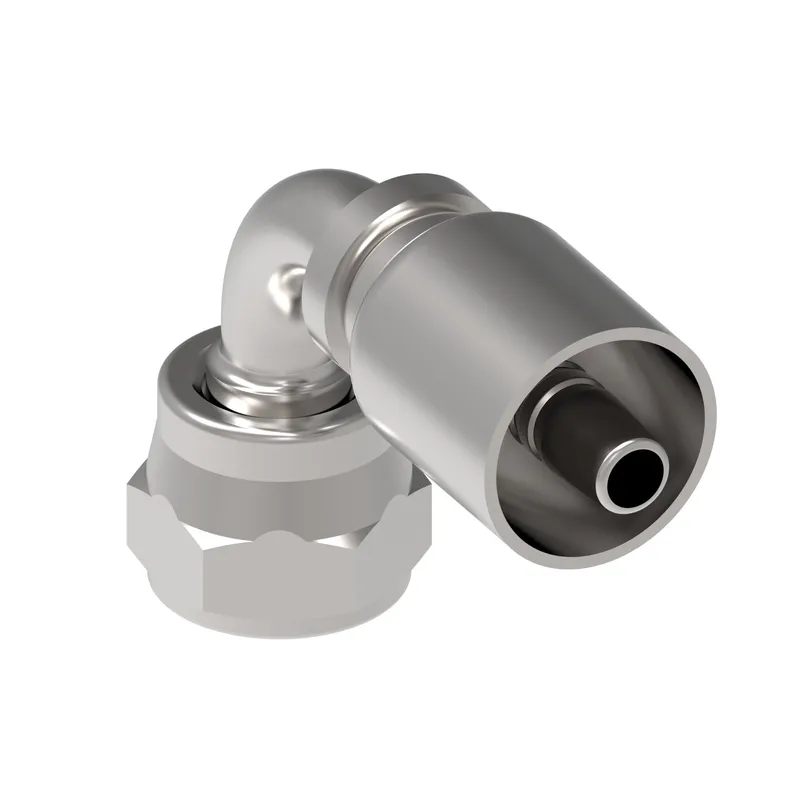

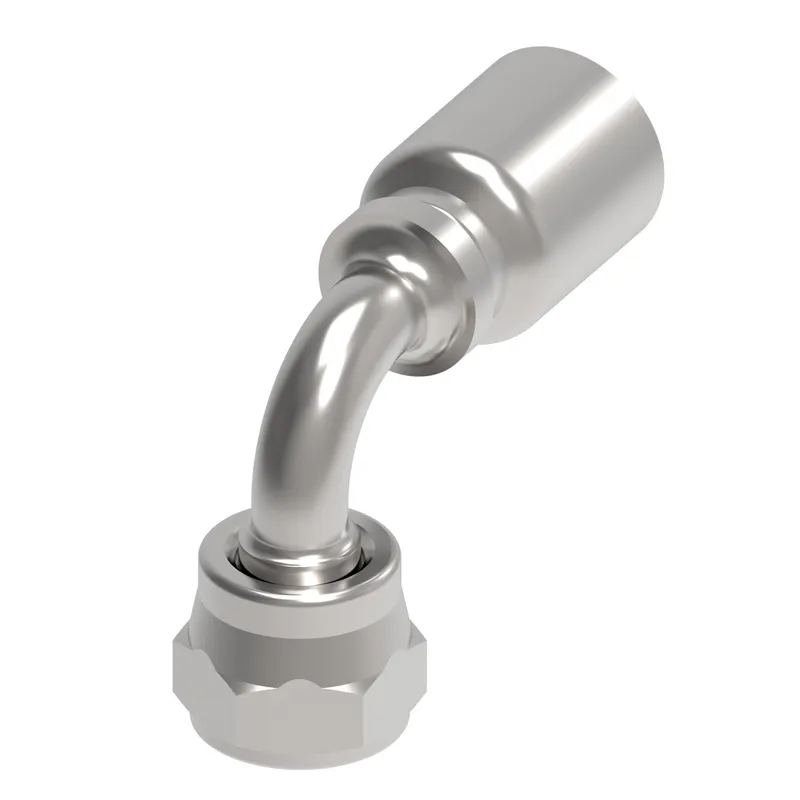

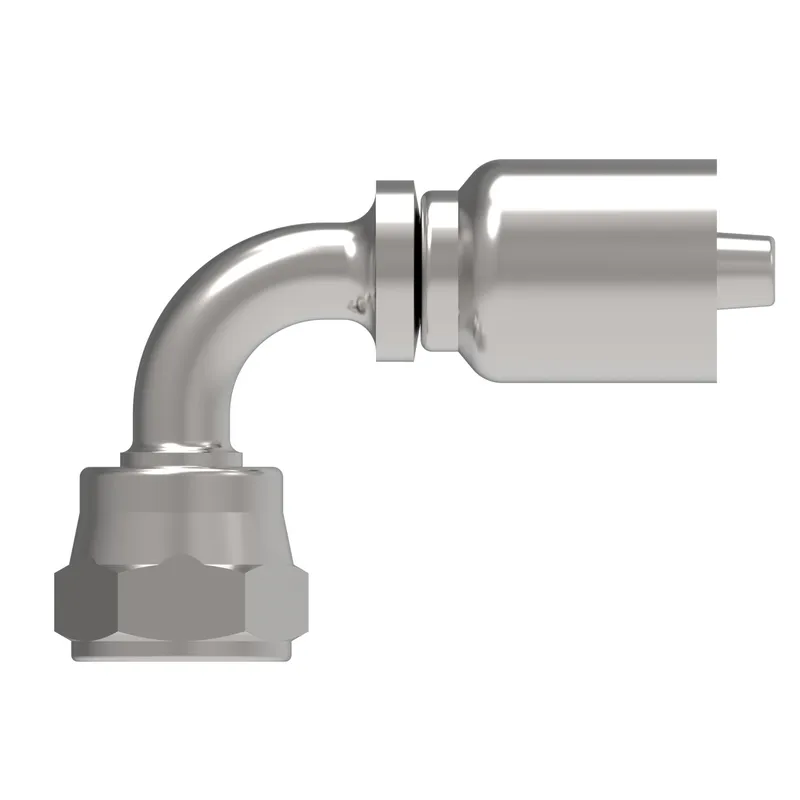

HOSE FTG, 1G/12, BF/12, CS, 90D

MPN: 1G12BFB12
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G12BFB12?

Danfoss HOSE FTG, 1G/12, BF/12, CS, 90D, manufacturer part number 1G12BFB12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.420
A dimension MM	82.200
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Construction Style	Crimp
Drop dimension IN	1.870
Drop dimension MM	47.50
End size 1	-12
End Type 1	Female BSPP swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.259
Hex size 1 MM	32.000
Hose cut off factor IN	2.047
Hose cut off factor MM	52.000
Hose size	-12
Inside diameter IN	0.610
Inside diameter MM	15.500
Product height in	2.604
Product height mm	66.139
Product length in	3.866
Product length mm	98.199
Product material	Carbon steel
Product width in	1.468
Product width mm	37.28
Proposition 65	Cancer and Reproductive Harm
Series	OTC
Thread sealant	No
Thread size 1	G 3/4
Working pressure max BAR	330.00
Working pressure max PSI	4800.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40

1G12BFB12: frequently asked questions

When can 1G12BFB12 be shipped?

1G12BFB12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1G12BFB12 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1G12BFB12 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1G12BFB12, subject to availability and destination.
