Braided hose and fittings Parts

Danfoss

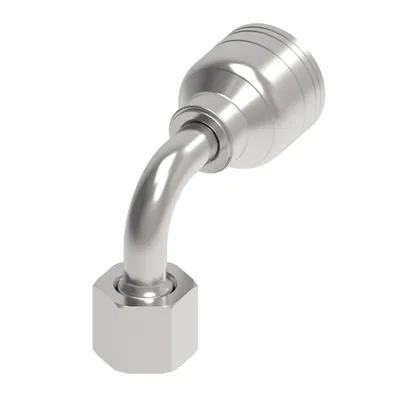

1AT20BFB20

HOSE FTG, 1A/20, BF/20, CS, 90D

Danfoss

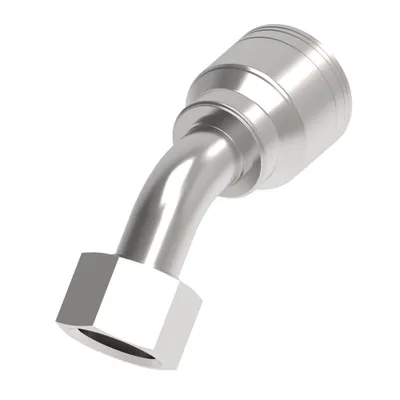

1AT20BFA20

HOSE FTG, 1A/20, BF/20, CS, 45D

Danfoss

1AT16FL20

HOSE FTG, 1A/20, C61/16, CS, STR

Danfoss

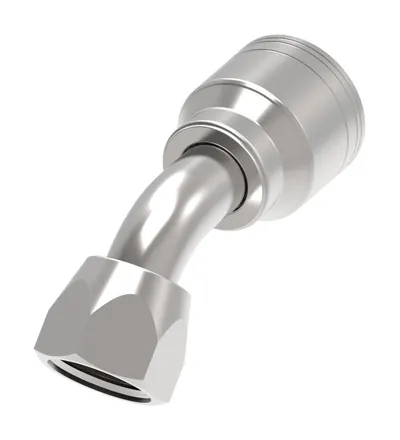

1AR20FJA20

HOSE FTG, 1A/20, JIC-F/20, CS, 45D

Danfoss

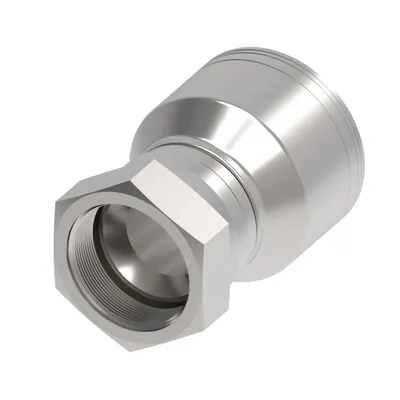

1AR20FJ20C

HOSE FTG, 1A/20, JIC-F/20, CS, STR

Danfoss

1AR20FJ20

HOSE FTG, 1A/20, JIC-F/20, CS, STR

Danfoss

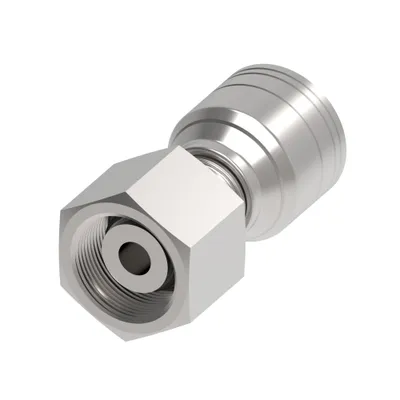

1AP32DS20

HOSE FTG, 1A/20, DKOH-B/32, CS, STR

Danfoss

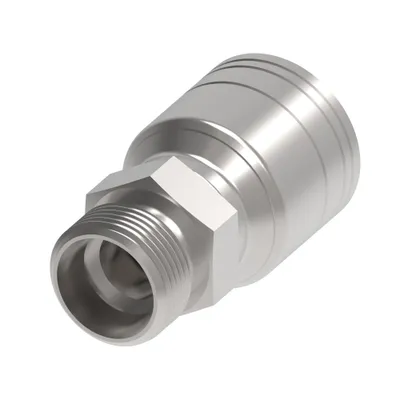

1AP32DK20

HOSE FTG, 1A/20, DKL-M/32, CS, STR

Danfoss

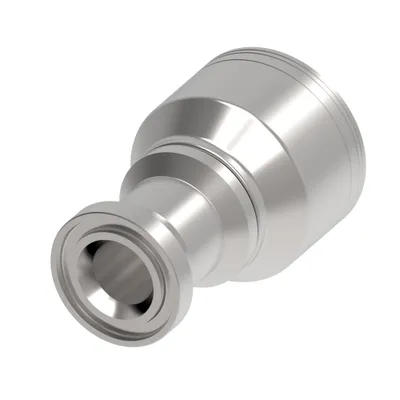

1AP20FL20

HOSE FTG, 1A/20, C61/20, CS, STR

Danfoss

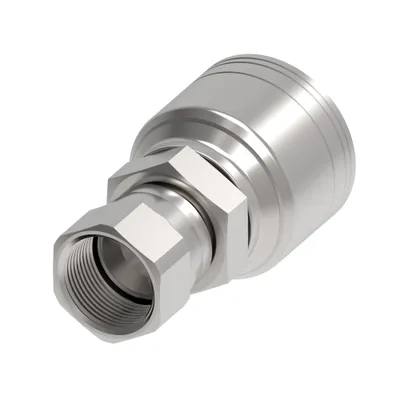

1AP20FJ20

HOSE FTG, 1A/20, JIC-F/20, CS, STR

Danfoss

1AP20BFB20

HOSE FTG, 1A/20, BF/20, CS, 90D

Danfoss

1AP16FL20

HOSE FTG, 1A/20, C61/16, CS, STR

Danfoss

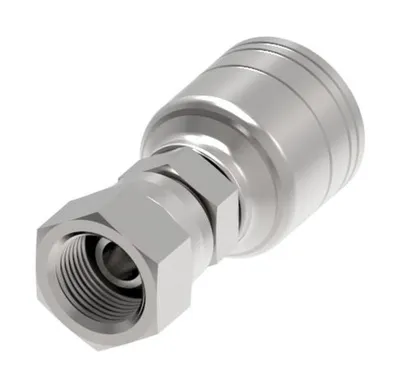

1AA8SP8

HOSE FTG, 1A/08, SP/08, CS, STR

Danfoss

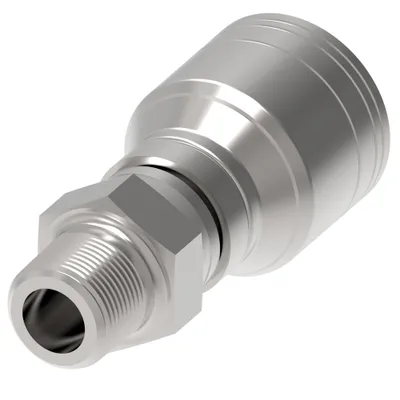

1AA8PS8

HOSE FTG, 1A/08, NPTF-MS/08, CS, STR

Danfoss

1AA8PS6

HOSE FTG, 1A/06, NPTF-MS/08, CS, STR

Danfoss

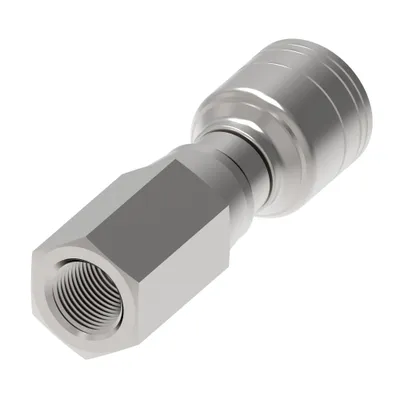

1AA8PF8

HOSE FTG, 1A/08, FP/08, CS, STR

Danfoss

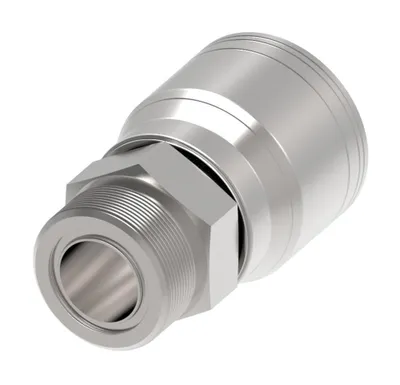

1AA8MR8

HOSE FTG, 1A/08, ORS-M/08, CS, STR

Danfoss

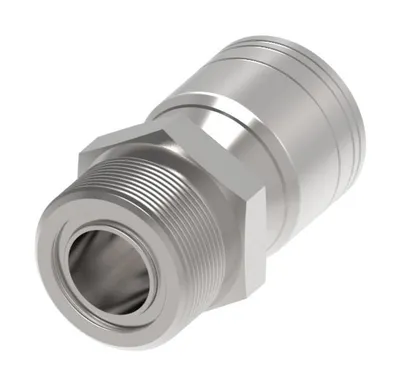

1AA8MR6

HOSE FTG, 1A/06, ORS-M/08, CS, STR

Danfoss

1AA8MP8C

HOSE FTG, 1A/08, NPTF-M/08, AP, STR

Danfoss

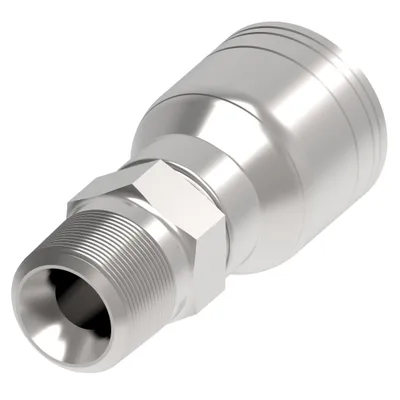

1AA8MP8

HOSE FTG, 1A/08, NPTF-M/08, CS, STR

Danfoss

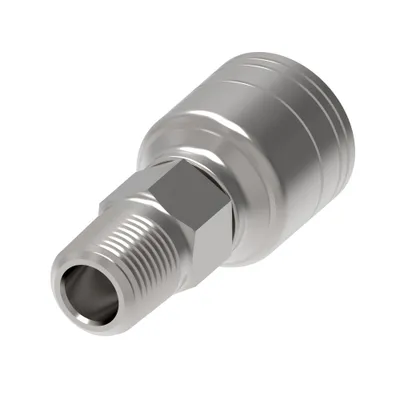

1AA8MP6

HOSE FTG, 1A/06, NPTF-M/08, CS, STR

Danfoss

1AA8MP12

HOSE FTG, 1A/12, NPTF-M/08, CS, STR

Danfoss

1AA8MP10

HOSE FTG, 1A/10, NPTF-M/08, CS, STR

Danfoss

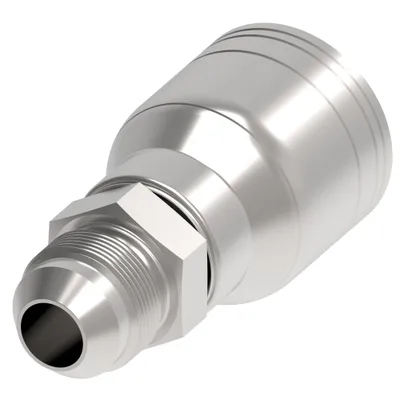

1AA8MJ8

HOSE FTG, 1A/08, JIC-M/08, CS, STR

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	A dimension IN	A dimension MM	Hose cut off factor MM	Product length in	Product length mm
1AT20BFB20	5.760	146.200	102.108	5.760	146.304
1AT20BFA20	6.040	153.400	109.474	6.050	153.670
1AT16FL20	3.760	95.600	56.100	3.760	95.504
1AR20FJA20	4.270	108.400	68.834	4.440	112.776
1AR20FJ20C	3.440	87.300	47.800	3.440	87.376
1AR20FJ20	3.440	87.300	47.752	3.440	87.376
1AP32DS20	3.690	93.700	49.700	3.690	93.726
1AP32DK20	3.120	79.400	35.400	3.130	79.502
1AP20FL20	4.070	103.300	63.800	4.240	107.696
1AP20FJ20	3.440	87.300	47.800	3.440	87.376
1AP20BFB20	5.760	146.200	102.200	6.740	171.196
1AP16FL20	3.760	95.600	56.100	3.770	95.758
1AA8SP8	2.400	61.000	35.800	2.280	57.912
1AA8PS8	2.960	75.200	49.700	3.130	79.502
1AA8PS6	2.690	68.400	47.100	2.910	73.914
1AA8PF8	3.410	86.700	61.300	3.580	90.932
1AA8MR8	2.470	62.600	32.900	2.660	67.564
1AA8MR6	1.800	45.600	24.200	1.950	49.530
1AA8MP8C	2.570	65.400	39.900	2.740	69.596
1AA8MP8	2.730	69.300	40.600	2.920	74.168
1AA8MP6	2.110	53.700	32.512	2.270	57.658
1AA8MP12	2.660	67.600	40.500	2.790	70.866
1AA8MP10	2.610	66.200	40.100	2.740	69.596
1AA8MJ8	2.530	64.200	35.500	2.720	69.088

Common to all listed parts

Construction Style	Crimp
Series	1A/Z Series
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
