Danfoss 1G10DLA6

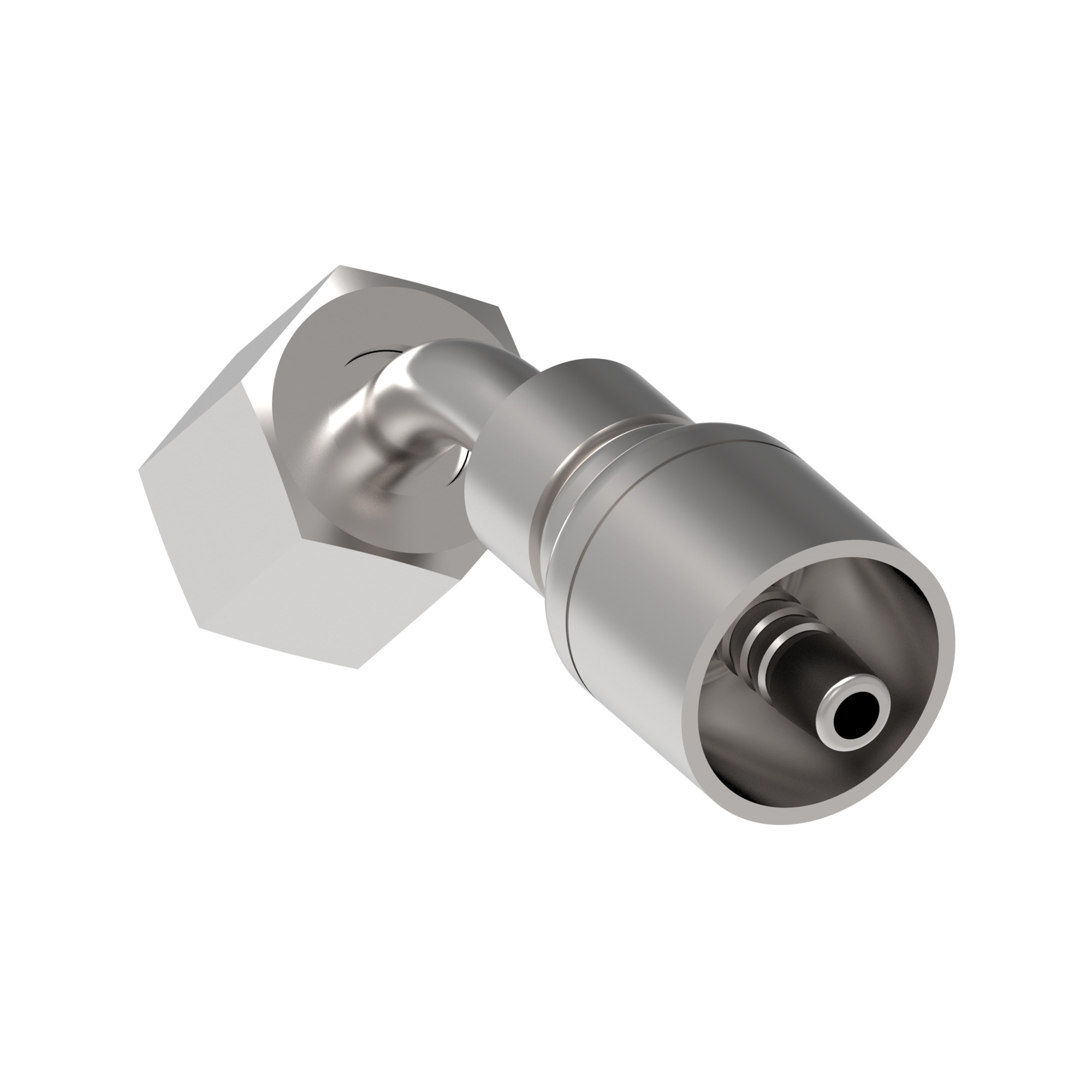

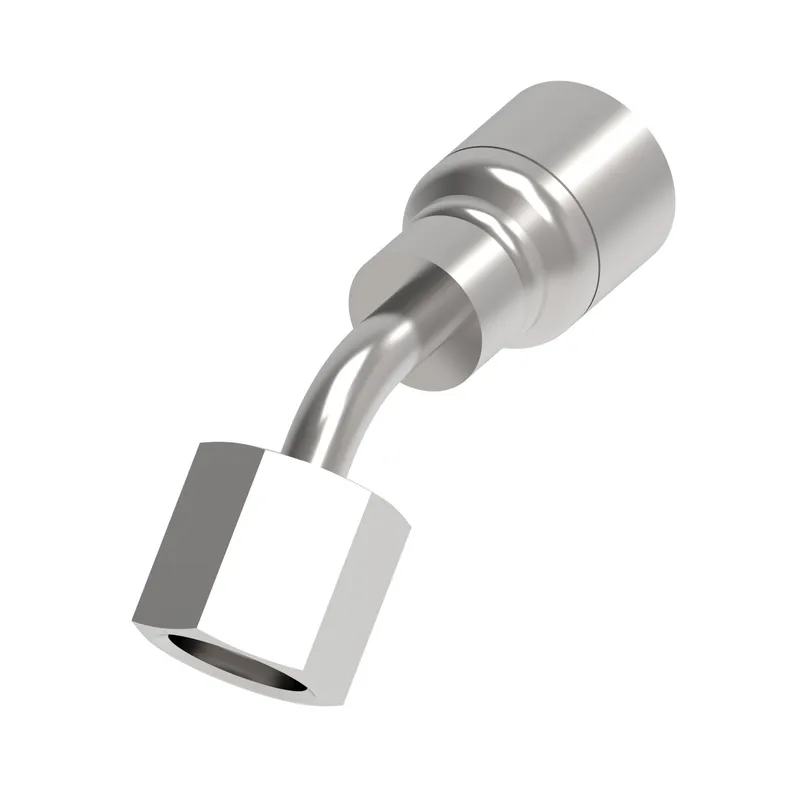

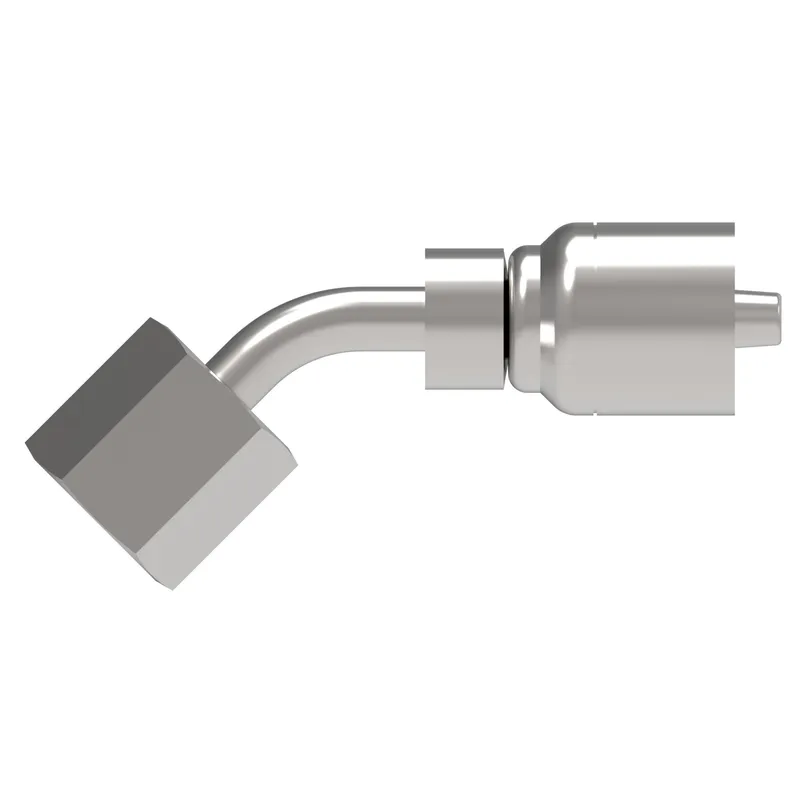

HOSE FTG, 1G/06, DKOL/10, CS, 45D

MPN: 1G10DLA6
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G10DLA6?

Danfoss HOSE FTG, 1G/06, DKOL/10, CS, 45D, manufacturer part number 1G10DLA6. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.760
A dimension MM	70.000
Angle shape	45 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Compatible hoses	GH585, GH586
Construction Style	Crimp
Drop dimension IN	0.690
Drop dimension MM	17.60
End connection torque	37-44 lb-ft(50-60 Nm)
End size 1	-10
End Type 1	24 deg. DKO swivel light duty
Finish plating	Dura-Kote
Hex size 1 IN	0.866
Hex size 1 MM	21.996
Hose cut off factor IN	1.760
Hose cut off factor MM	44.800
Hose size	-6
Inside diameter IN	0.260
Inside diameter MM	6.700
Product height in	1.570
Product height mm	39.878
Product length in	3.180
Product length mm	80.772
Product material	Carbon steel
Product width in	0.866
Product width mm	21.996
Proposition 65	Cancer and Reproductive Harm
Seal material	Nitrile (NBR)
Series	OTC
Thread sealant	No
Thread size 1	M18x1.5
Working pressure max BAR	250.00
Working pressure max PSI	3650.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
