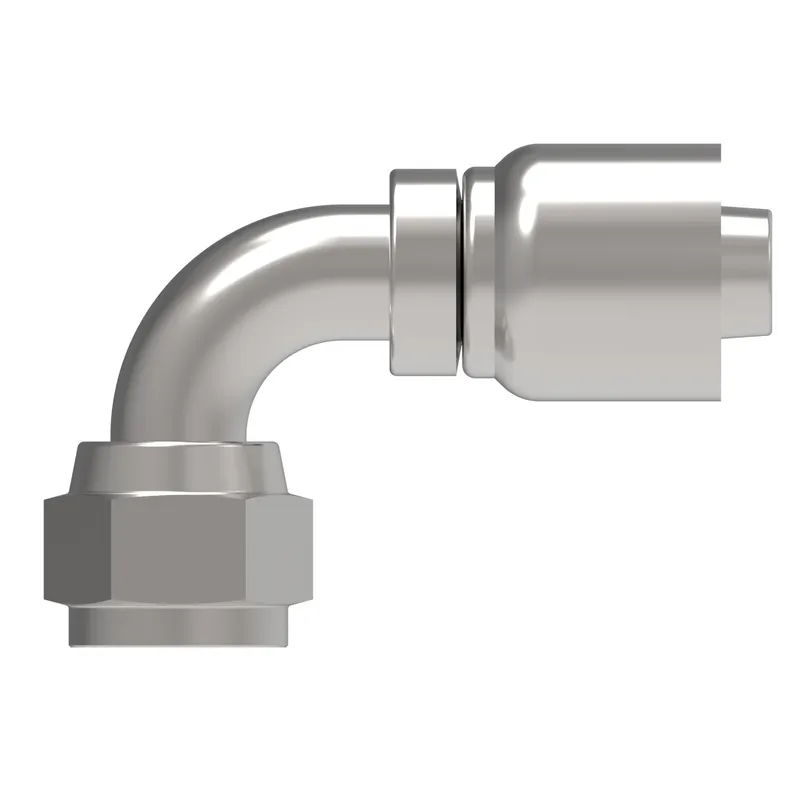

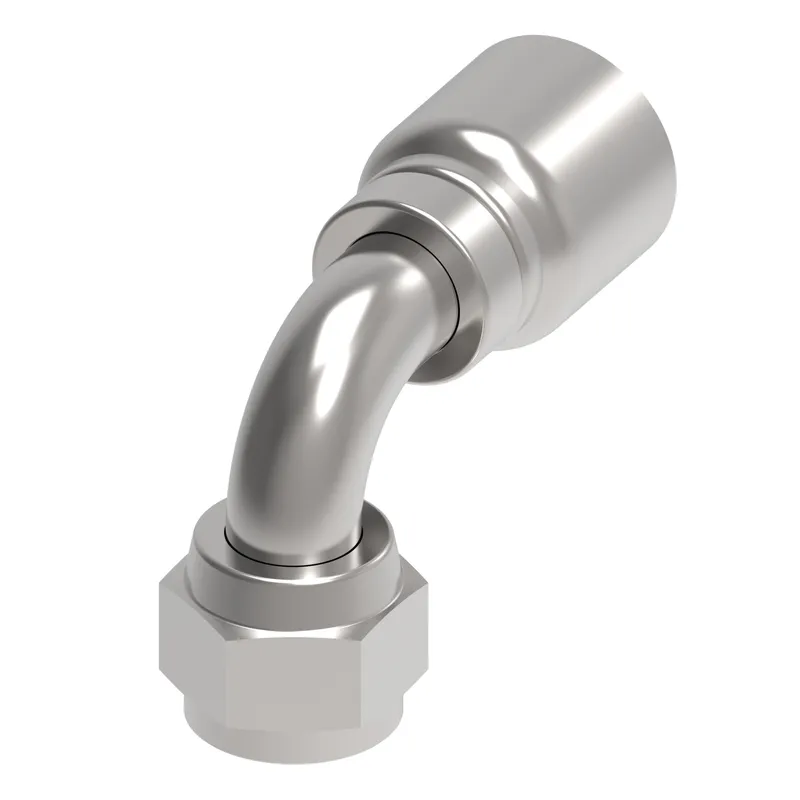

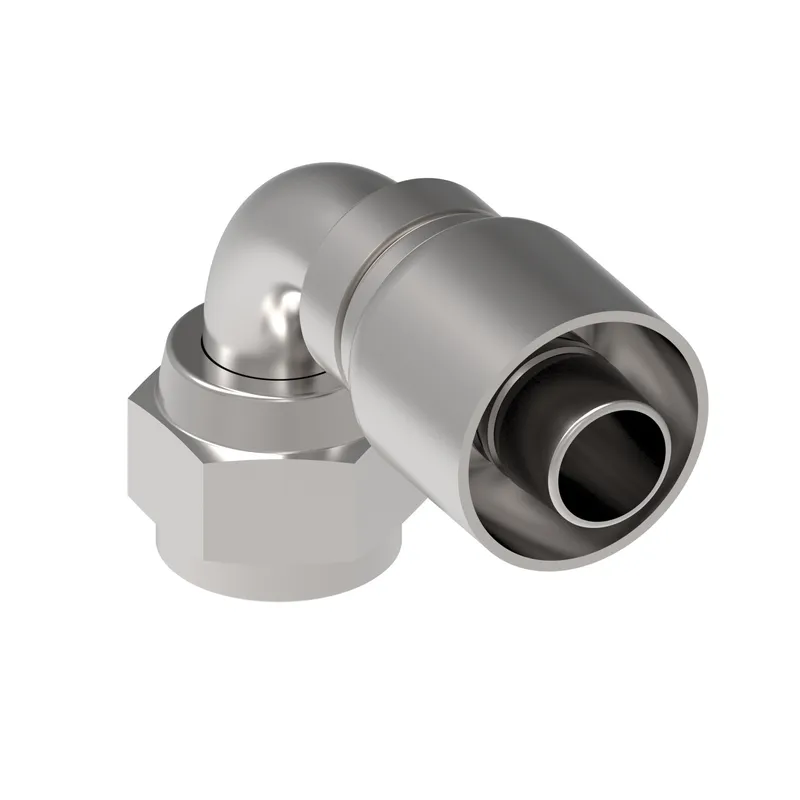

Danfoss 1G10FJB10

HOSE FTG, 1G/10, JIC-F/10, CS, 90D

MPN: 1G10FJB10
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G10FJB10?

Danfoss HOSE FTG, 1G/10, JIC-F/10, CS, 90D, manufacturer part number 1G10FJB10. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.470
A dimension MM	62.800
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Construction Style	Crimp
Drop dimension IN	1.190
Drop dimension MM	30.30
End connection torque	57-62 lb-ft(77-85 Nm)
End size 1	-10
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.062
Hex size 1 MM	27.000
Hex size 2 IN	0.000
Hose cut off factor IN	1.540
Hose cut off factor MM	39.300
Hose size	-10
Inside diameter IN	0.460
Inside diameter MM	11.700
Product height in	2.292
Product height mm	58.224
Product length in	3.236
Product length mm	82.199
Product material	Carbon steel
Product width in	1.227
Product width mm	31.171
Proposition 65	Cancer and Reproductive Harm
Series	OTC
Thread sealant	No
Thread size 1	7/8-14 UNF
Working pressure max BAR	350
Working pressure max PSI	5100
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
