Danfoss 1G10DLB6

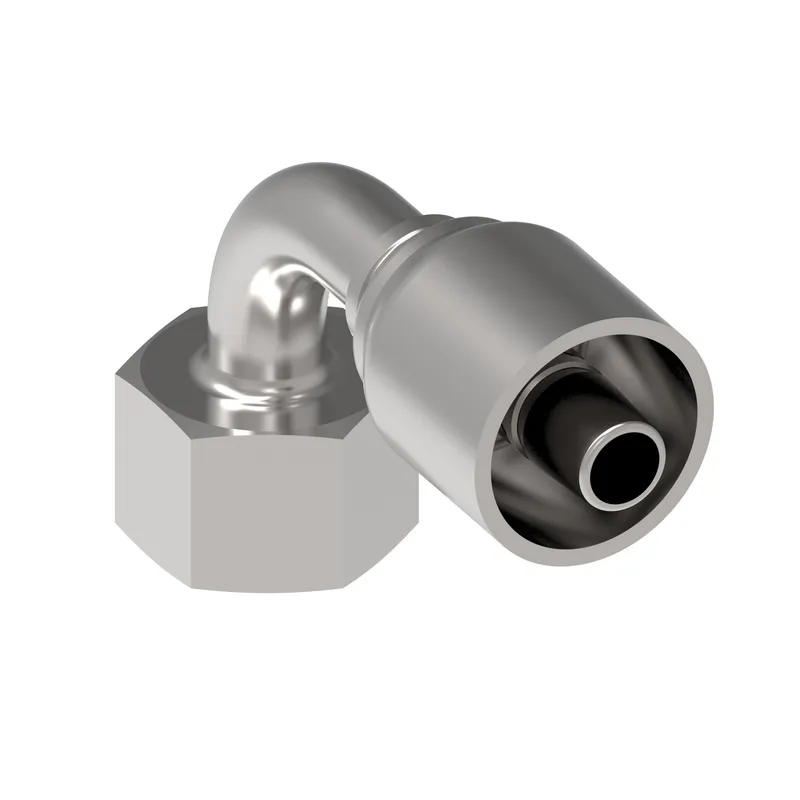

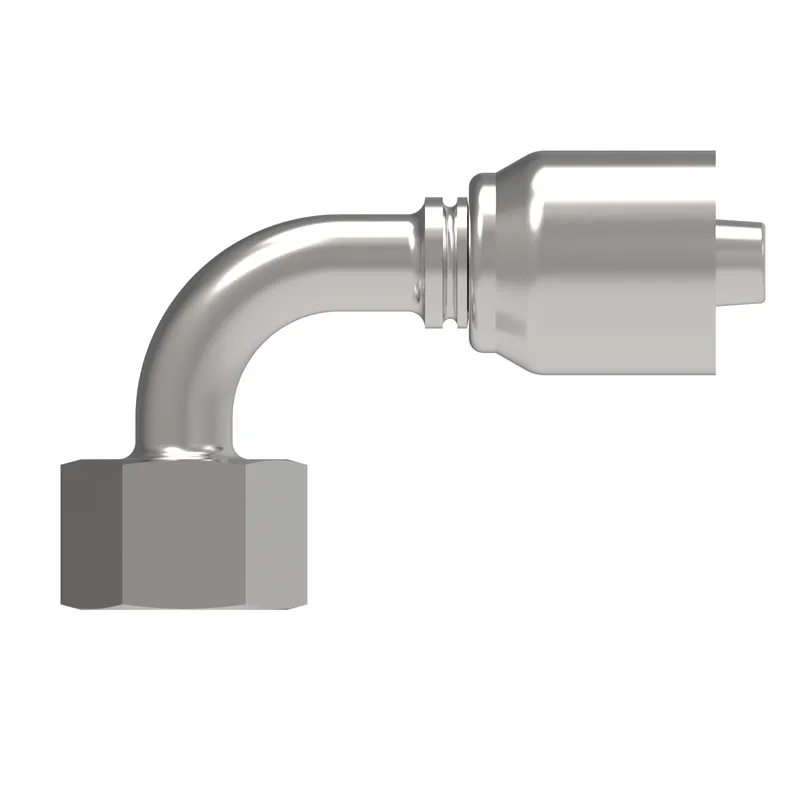

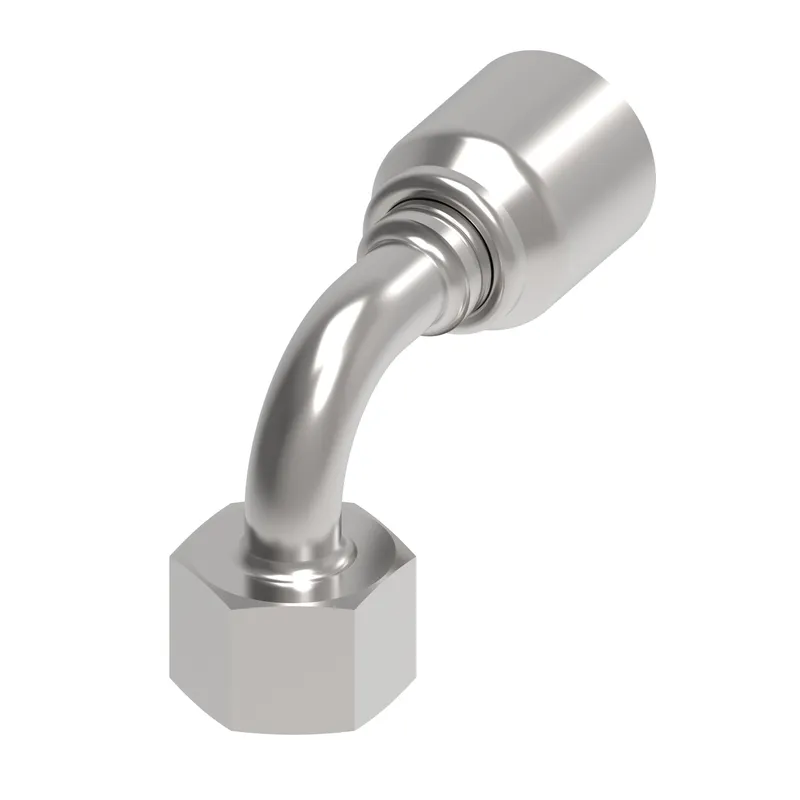

HOSE FTG, 1G/06, DKOL/10, CS, 90D

MPN: 1G10DLB6
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G10DLB6?

Danfoss HOSE FTG, 1G/06, DKOL/10, CS, 90D, manufacturer part number 1G10DLB6. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.350
A dimension MM	59.800
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Compatible hoses	GH585, GH586
Construction Style	Crimp
Drop dimension IN	1.350
Drop dimension MM	34.20
End connection torque	37-44 lb-ft(50-60 Nm)
End size 1	-10
End Type 1	24 deg. DKO swivel light duty
Finish plating	Dura-Kote
Hex size 1 IN	0.866
Hex size 1 MM	22.000
Hex size 2 IN	0.000
Hose cut off factor IN	1.360
Hose cut off factor MM	34.500
Hose size	-6
Inside diameter IN	0.260
Inside diameter MM	6.700
Product height in	1.790
Product height mm	45.466
Product length in	2.780
Product length mm	70.612
Product material	Carbon steel
Product width in	0.905
Product width mm	22.987
Proposition 65	Cancer and Reproductive Harm
Seal material	Nitrile (NBR)
Series	OTC
Thread sealant	No
Thread size 1	M18x1.5
Working pressure max BAR	250.00
Working pressure max PSI	3650.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
